51926 - Toro 16" String Trimmer (SN: 079000001 - 079999999) (1997) HANDLE & UPPER BOOM ASSEMBLY Parts Diagram

16" String Trimmer

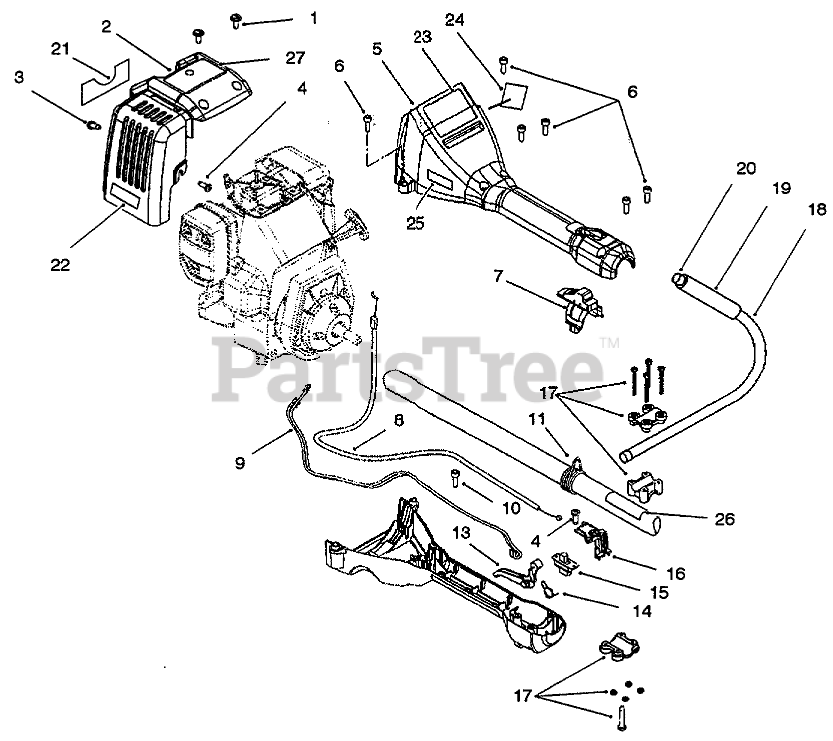

HANDLE & UPPER BOOM ASSEMBLY Parts Diagram

  • Title

1

Toro 181020

SCREW - M5 X 15.8MM

$

$

Not available

2

Toro 181088

COVER - ENGINE

$

$

Not available

3

Toro 181089

SCREW - M5 X15.78MM

$

$

Not available

4

Toro 181104

SCREW - ENGINE COVER

$

$

Not available

5

Toro 181090

ASM - HANDLE

$

$

Not available

6

Toro 181070

SCREW - M5 X 32MM

$

$

Not available

7

Toro 181091

SLIDE - SWITCH

$

$

Not available

8

Toro 181093

CABLE - THROTTLE

$

$

Not available

9

Toro 181094

WIRE - LEAD

$

$

Not available

10

Toro 181095

SCREW - ANTI-ROTATION

$

$

Not available

11

Toro 610327

Clip-Shoulder Strap

$

$

Not available

13

Toro 181096

TRIGGER

$

$

Not available

14

Toro 610314

THROTTLE TRIGGER SPRING

$10.99

$

Usually ships in 3-6 days

0

15

Toro 181097

SWITCH

$

$

Not available

16

Toro 181098

RETAINER-SWITCH/TRIGGER

$

$

Not available

17

Toro 683295

HANDLE BRACKET ASM

$62.99

$

Usually ships in 3-6 days

0

18

Toro 181099

J-Handle Assembly (Incl. Ref. # 19 & 20)

$45.99

$

Usually ships in 3-6 days

0

19

Toro 612831

HANDLE NITRILE GRIP

$24.99

$

Usually ships in 3-6 days

0

20

Toro 612021

TUBE CLOSURE

$

$

Not available

21

Toro 9369

Decal-Oil

$

$

Not available

22

Toro 92-3332

Decal-Warning
(Superseded to 95-5084)

$

$

Not available

23

Toro 9355

Decal-Toro

$

$

Not available

24

Toro 9356

Decal-Care

$

$

Not available

25

Toro 9375

Decal-Gas

$

$

Not available

26

Toro 6693

Blade 14"
(Superseded to 100200)

$

$

Not available

27

Toro 9370

Decal-Trimmer

$

$

Currently unavailable

Toro 181103

KIT - DECAL

Note: Not illustrated

$

$

Not available
