51926 - Toro 16" String Trimmer (SN: 069000001 - 069999999) (1996) CLUTCH, STARTER MODULE & FUEL TANK ASSEMBLIES Parts Diagram

16" String Trimmer

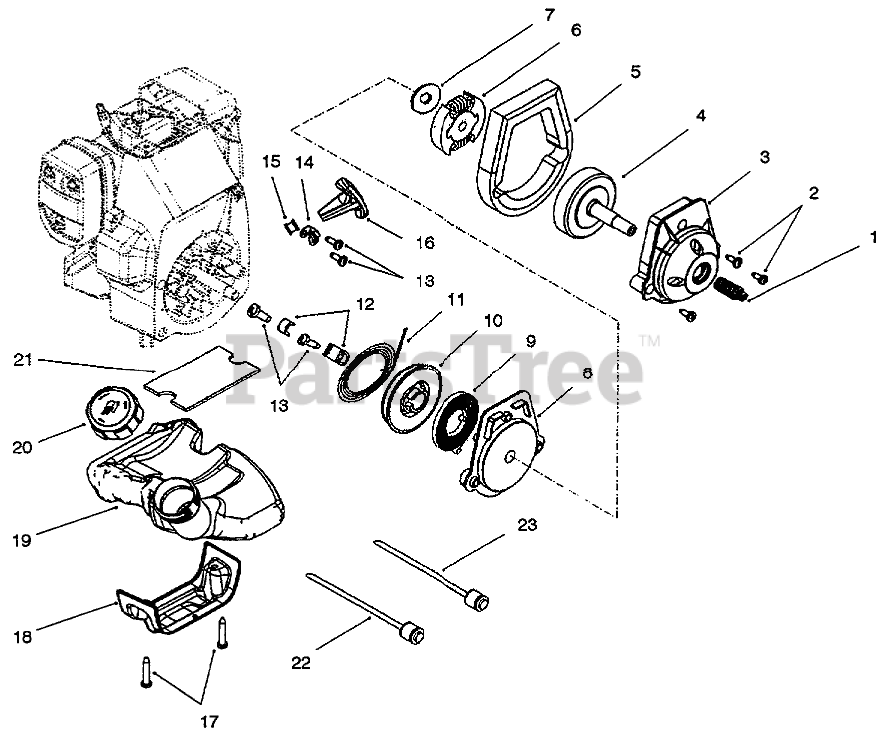

CLUTCH, STARTER MODULE & FUEL TANK ASSEMBLIES Parts Diagram

  • Title

1

Toro 612468

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

2

Toro 181070

SCREW - M5 X 32MM

$

$

Not available

3

Toro 181071

HOUSING - CLUTCH

$

$

Not available

4

Toro 180232

CLUTCH DRUM ASM

$

$

Not available

5

Toro 181545

ISOLATOR

$

$

Not available

6

Toro 181073

CLUTCH

$

$

Not available

7

Toro 181546

SWITCH - BLACK

$

$

Not available

8

Toro 181102

Clutch Housing Assembly W/Drum (Incl. Ref. #3 & 4)

$

$

Not available

9

Toro 613102

RECOIL SPRING

$23.99

$

Usually ships in 3-6 days

0

10

Toro 180535

RECOIL PULLEY

$

$

Not available

11

Toro 613103

ROPE

$

$

Not available

12

Toro 181076

RETAINER - STARTER PULLEY

$

$

Not available

13

Toro 181544

Screw
(Superseded to 181077)

$

$

Not available

14

Toro 181078

RETAINER - ROPE GUIDE

$

$

Not available

15

Toro 611061

ROPE GUIDE

$

$

Not available

16

Toro 181079

HANDLE - STARTER

$15.99

$

Usually ships in 3-6 days

0

17

Toro 181080

SCREW - FUEL TANK BRKT

$

$

Not available

18

Toro 181081

BRACKET - FUEL TANK

$

$

Not available

19

Toro 181542

Tank-Fuel (Incl. Ref. #20, 22 & 23)
(Superseded to 181082)

$

$

Not available

20

Toro 181543

CAP - FUEL

$

$

Not available

21

Toro 181084

PAD - FUEL TANK

$

$

Not available

22

Toro 181085

ASM-FUEL LINE W/FILTER

$

$

Not available

23

Toro 181086

LINE - FUEL RETURN

$

$

Not available
