51926 - Lawn-Boy 16" String Trimmer (SN: 069000001 - 069999999) (1996) CLUTCH, STARTER MODULE & FUEL TANK ASSEMBLIES Parts Diagram

16" String Trimmer

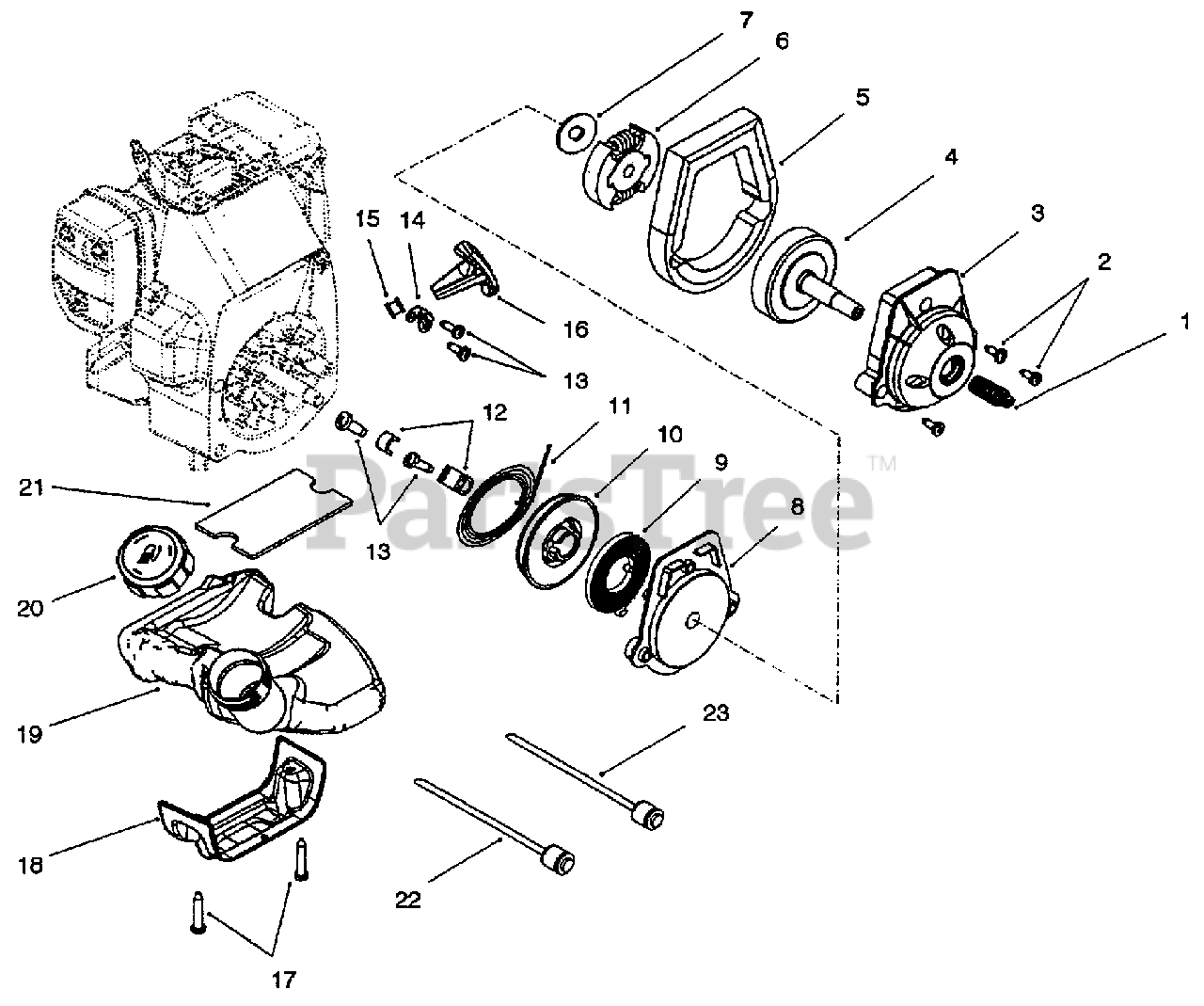

CLUTCH, STARTER MODULE & FUEL TANK ASSEMBLIES Parts Diagram

  • Title

1

Lawn-Boy 612468

Spring-Compression

$10.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 181070

Screw

$

$

Not available

3

Lawn-Boy 181071

Housing-Clutch

$

$

Not available

4

Lawn-Boy 180232

Drum-Clutch

$

$

Not available

5

Lawn-Boy 181545

Isolator

$

$

Not available

6

Lawn-Boy 181073

Clutch

$

$

Not available

7

Lawn-Boy 181546

Washer-Clutch

$

$

Not available

8

Lawn-Boy 181102

Clutch Housing Assembly W/Drum (Incl. Ref. #3 & 4)

$

$

Not available

9

Lawn-Boy 613102

Spring-Starter

$23.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 180535

Pulley-Starter

$

$

Not available

11

Lawn-Boy 613103

Rope-Starter

$

$

Not available

12

Lawn-Boy 181076

Retainer-Starter Pulley

$

$

Not available

13

Lawn-Boy 181544

Screw
(Superseded to 181077)

$

$

Not available

14

Lawn-Boy 181078

Retainer-Rope Guide

$

$

Not available

15

Lawn-Boy 611061

Guide-Rope

$

$

Not available

16

Lawn-Boy 181079

Handle-Starter

$15.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 181080

Screw-Fuel Tank Bracket

$

$

Not available

18

Lawn-Boy 181081

Bracket-Fuel Tank

$

$

Not available

19

Lawn-Boy 181542

Tank-Fuel (Incl. Ref. #20, 22 & 23)
(Superseded to 181082)

$

$

Not available

20

Lawn-Boy 181543

Cap-Fuel

$

$

Not available

21

Lawn-Boy 181084

Pad-Fuel Tank

$

$

Not available

22

Lawn-Boy 181085

Fuel Line Assembly W/Filter

$

$

Not available

23

Lawn-Boy 181086

Line-Fuel Return

$

$

Not available
