51921 - Lawn-Boy 15" String Trimmer (SN: 079000001 - 079999999) (1997) CYLINDER AND CRANKCASE ASSEMBLY Parts Diagram

15" String Trimmer

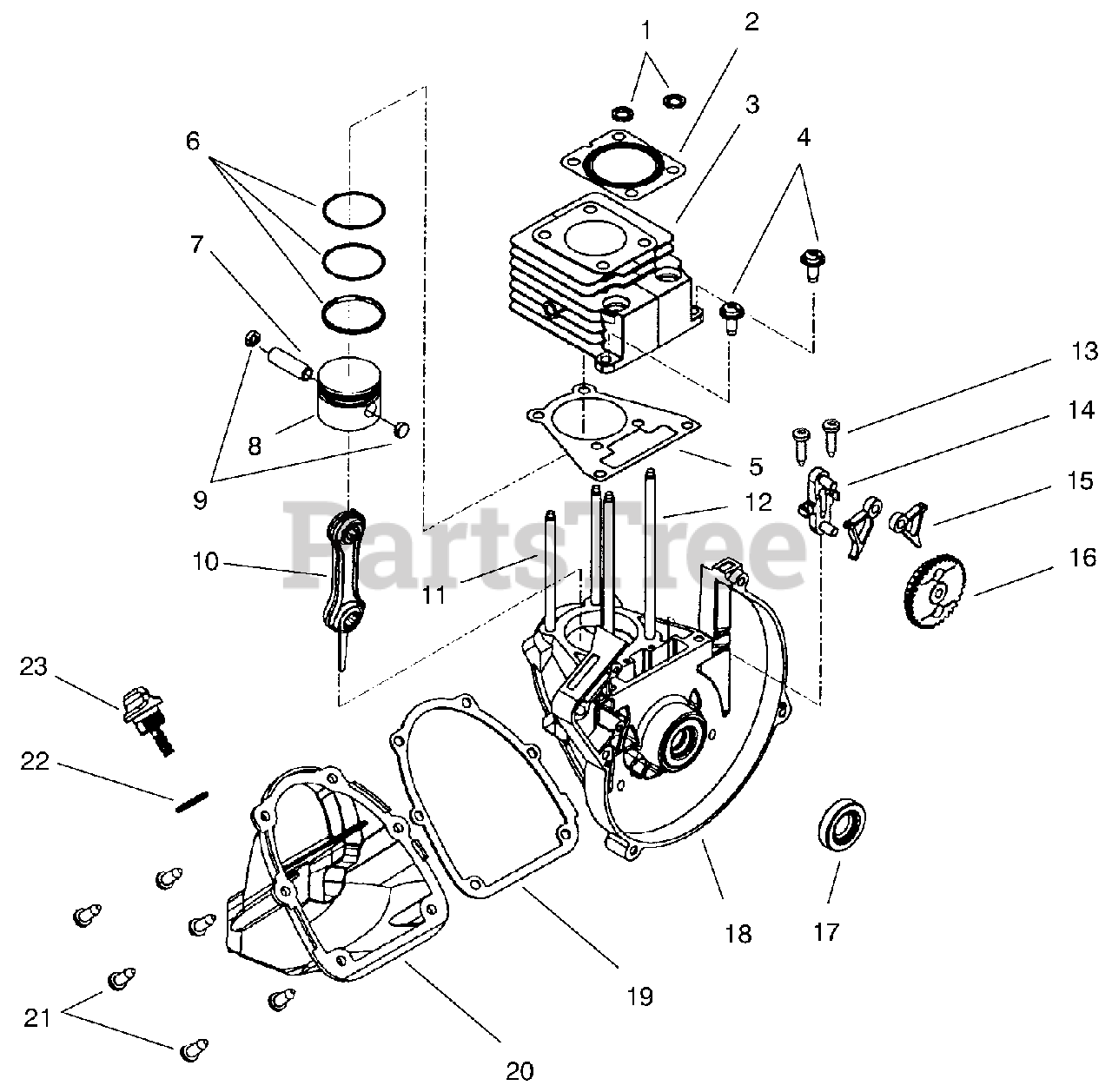

CYLINDER AND CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 181000

O Ring-Push Rod Tube

$

$

Not available

2

Lawn-Boy 181001

Gasket-Cylinder Head

$

$

Not available

3

Lawn-Boy 181002

Cylinder

$

$

Not available

4

Lawn-Boy 181003

Screw

$

$

Not available

5

Lawn-Boy 181004

Gasket-Cylinder

$

$

Not available

6

Lawn-Boy 181005

Piston Ring Set

$

$

Not available

7

Lawn-Boy 181006

Pin-Wrist

$

$

Not available

8

Lawn-Boy 181007

Piston

$

$

Not available

9

Lawn-Boy 181008

Button-Wrist Pin

$

$

Not available

10

Lawn-Boy 181009

Rod-Connecting

$

$

Not available

11

Lawn-Boy 181010

Cylinder Stud (83.5mm)

$

$

Not available

12

Lawn-Boy 181011

Cylinder Stud (115.5mm)

$

$

Not available

13

Lawn-Boy 181012

Screw-Cam Bracket

$

$

Not available

14

Lawn-Boy 181013

Bracket-Cam

$

$

Not available

15

Lawn-Boy 181014

Follower-Cam
(Superseded to 182123)

$

$

Not available

16

Lawn-Boy 181015

Cam Gear

$

$

Not available

17

Lawn-Boy 181016

Seal

$

$

Not available

18

Lawn-Boy 181017

Crankcase W/Power Shaft (Incl. Ref. #11,12,&17)

$

$

Not available

19

Lawn-Boy 181018

Gasket-Oil Pan

$

$

Not available

20

Lawn-Boy 181019

Pan-Oil

$

$

Not available

21

Lawn-Boy 181020

Screw

$

$

Not available

22

Lawn-Boy 181021

O Ring

$

$

Not available

23

Lawn-Boy 181537

Plug-Oil Fill (Incl. Ref. #22)

$

$

Not available

Lawn-Boy 181023

Piston & Rod Assembly (Incl. Ref. # 6-10)

Note: Not Illustrated

$179.99

$

Usually ships in 3-6 days

0

Lawn-Boy 181024

Engine Gasket Kit

Note: Not Illustrated

$

$

Not available

Lawn-Boy 181042

Short Block Assembly (All Items Included)

Note: Not Illustrated

$

$

Not available
