51920 - Toro 15" String Trimmer (SN: 069000001 - 069999999) (1996) LOWER BOOM & CUTTING HEAD ASSEMBLY Parts Diagram

15" String Trimmer

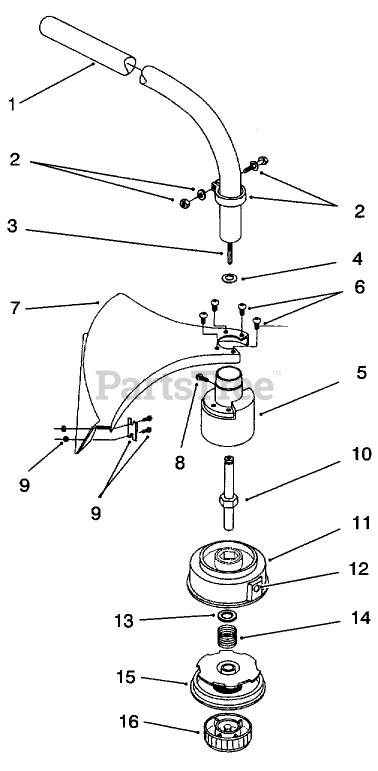

LOWER BOOM & CUTTING HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 180340

ASM-HSG LOWER DRIVE SHAFT

$

$

Not available

2

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

3

Toro 683608

LOWER DRIVE SHAFT ASM
(Superseded to 181549)

$

$

Not available

4

Toro 145567

WASHER

$

$

Not available

5

Toro 153312

BUSHING HSG ASM

$

$

Not available

6

Toro 180531

GUARD MTG SCREW ASM

$2.99

$

Usually ships in 3-6 days

0

7

Toro 683274

Guard and Blade Assembly (Incl. Ref. # 9)

$

$

Not available

8

Toro 145569

ANTI-ROTATION SCREW

$

$

Not available

9

Toro 682061

BLADE ASM

$23.99

$

In Stock, only 1 left!

0

10

Toro 153313

Shaft-Spool
(Superseded to 181784)

$

$

Not available

11

Toro 153619

Outer Spool and Eyelet Asm. (Incl. Ref. #12)

$51.99

$

Usually ships in 3-6 days

0

12

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

13

Toro 610660

RETAINER WASHER(SET OF 10)

$4.49

$

In Stock, Qty 19

0

14

Toro 610317

SPRING

$12.99

$

Usually ships in 3-6 days

0

15

Toro 610318

REEL - INNER

$41.99

$

In Stock, only 1 left!

0

16

Toro 682061

BLADE ASM

$23.99

$

In Stock, only 1 left!

0

Toro 610375

LOOP LINE

Note: Not illustrated

$

$

Not available

Toro 92-3450

Reel/Line ASM
(Superseded to 88042)

Note: Not illustrated

$

$

Not available

Toro 683223

Complete Cutting Head Asm. (Incl. Ref. #11-16)
(Superseded to 683059)

Note: Not illustrated

$

$

Not available

Toro 682075

STRAP SHOULDER ACC

Note: Not illustrated

$

$

Not available

Toro 92-3297

Oil-Sae 30 100ml Bottle
(Superseded to 77-4910)

Note: Not illustrated

$

$

Not available

Toro 181101

SPOUT - OIL

Note: Not illustrated

$

$

Not available
