51920 - Lawn-Boy 15" String Trimmer (SN: 079000001 - 079999999) (1997) CYLINDER HEAD ASSEMBLY Parts Diagram

15" String Trimmer

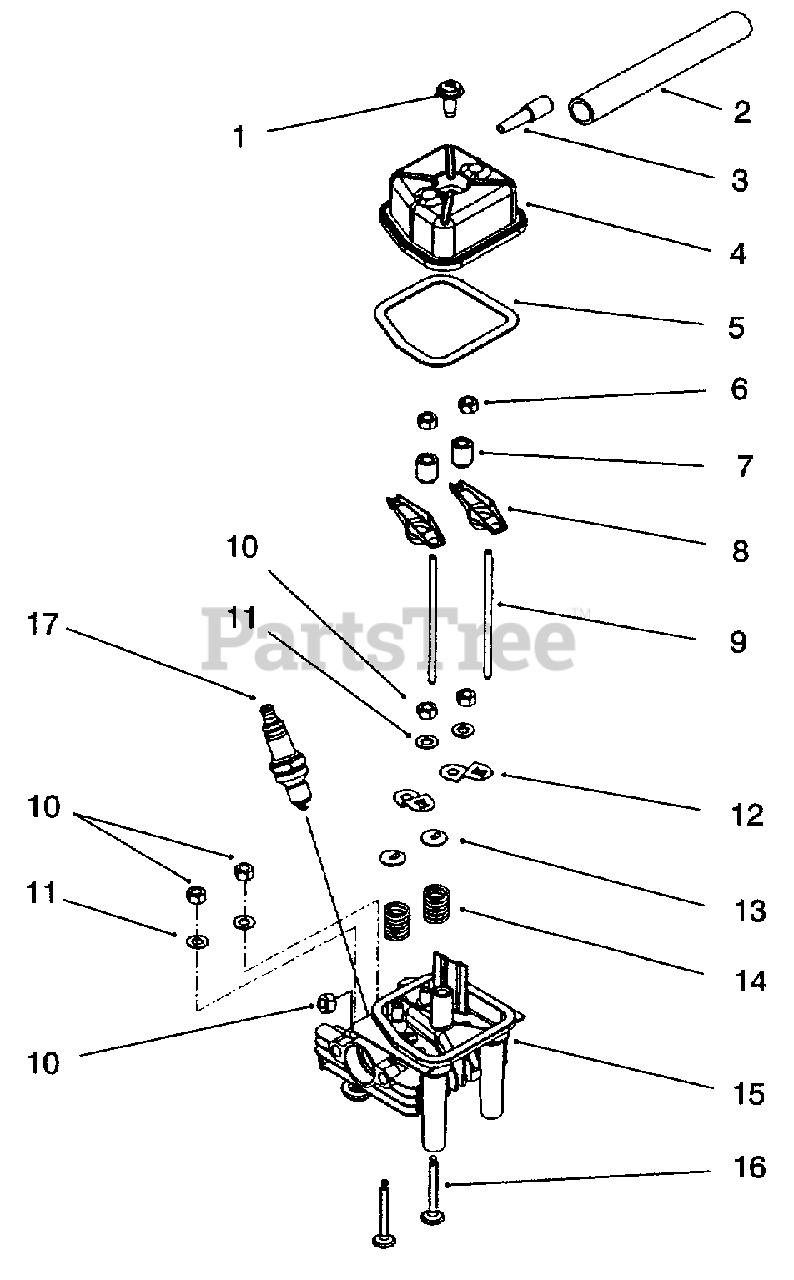

CYLINDER HEAD ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 181025

Screw-Valve Cover

$

$

Not available

2

Lawn-Boy 181026

Hose-Breather

$

$

Not available

3

Lawn-Boy 181027

Breather Assembly

$

$

Not available

4

Lawn-Boy 181028

Cover-Valve

$

$

Not available

5

Lawn-Boy 181029

Gasket-Valve Cover

$

$

Not available

6

Lawn-Boy 181030

Nut-Rocker Adjusting

$

$

Not available

7

Lawn-Boy 181031

Pivot-Rocker Arm

$

$

Not available

8

Lawn-Boy 181032

Arm-Rocker

$

$

Not available

9

Lawn-Boy 181033

Rod-Push

$

$

Not available

10

Lawn-Boy 181034

Nut-Hex

$

$

Not available

11

Lawn-Boy 181035

Washer

$

$

Not available

12

Lawn-Boy 181036

Guide-Push Rod

$

$

Not available

13

Lawn-Boy 181037

Retainer-Valve Spring

$

$

Not available

14

Lawn-Boy 181038

Spring-Valve

$

$

Not available

15

Lawn-Boy 181039

Head-Cylinder

$139.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 181040

Valve

$

$

Not available

17

Lawn-Boy 180852

Spark Plug

$

$

Not available

Lawn-Boy 181041

Cylinder Head Assembly (Incl. Ref. #13-16)

Note: Not Illustrated

$211.99

$

Usually ships in 3-6 days

0

Lawn-Boy 181042

Short Block Assembly (All Items Included)

Note: Not Illustrated

$

$

Not available
