51920 - Lawn-Boy 15" String Trimmer (SN: 069000001 - 069999999) (1996) LOWER BOOM & CUTTING HEAD ASSEMBLY Parts Diagram

15" String Trimmer

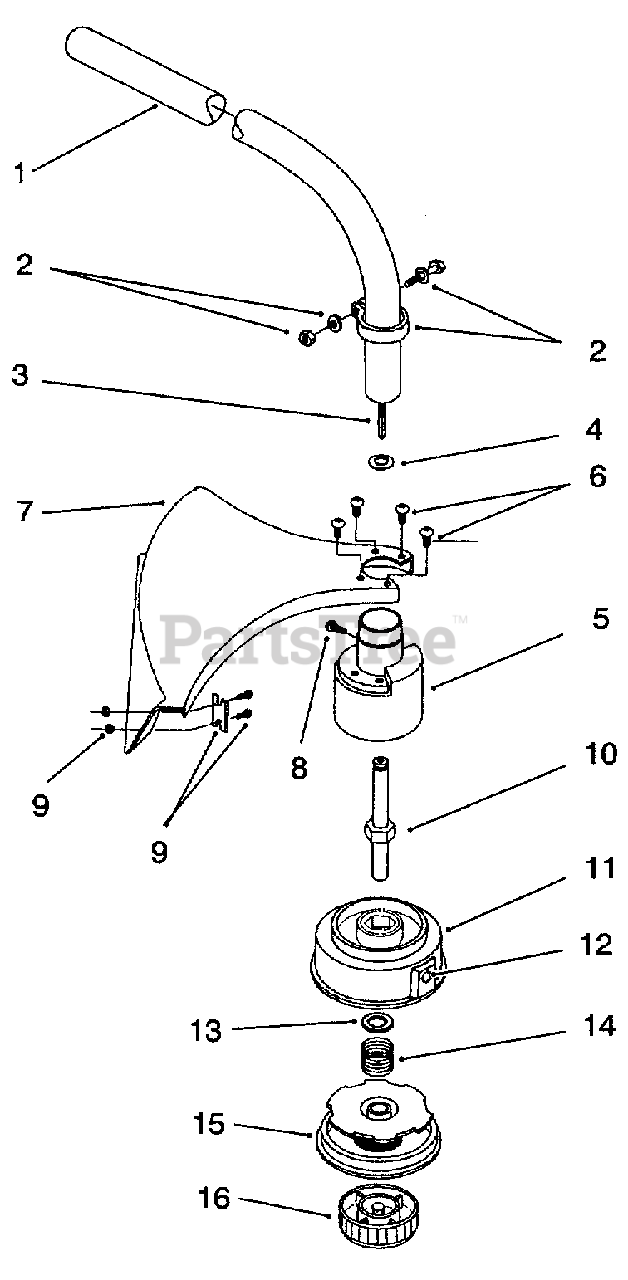

LOWER BOOM & CUTTING HEAD ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 180340

Drive Shaft Housing Asm.

$

$

Not available

2

Lawn-Boy 153597

Lower Clamp Assembly

$

$

Not available

3

Lawn-Boy 683608

Lower Flexible Drive Shaft
(Superseded to 181549)

$

$

Not available

4

Lawn-Boy 145567

Washer

$

$

Not available

5

Lawn-Boy 153312

Bushing Housing Assembly

$

$

Not available

6

Lawn-Boy 180531

Guard Mounting Screw Asm.

$2.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 683274

Guard and Blade Assembly (Incl. Ref. # 9)

$

$

Not available

8

Lawn-Boy 145569

Anti-Rotation Screw

$

$

Not available

9

Lawn-Boy 682061

Blade Assembly

$23.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 153313

Spool Shaft
(Superseded to 181784)

$

$

Not available

11

Lawn-Boy 153619

Outer Spool and Eyelet Asm. (Incl. Ref. #12)

$51.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 145566

Eyelet

$16.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 610660

Retainer

$4.49

$

In Stock, Qty 19

0

14

Lawn-Boy 610317

Spring

$12.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 610318

Inner Reel

$41.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 682061

Bump Head Knob Assembly

$23.99

$

In Stock, only 1 left!

0

Lawn-Boy 610375

Monoflail Cutting Line-50ft.

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-3450

Spool and Line
(Superseded to 88042)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 683223

Complete Cutting Head Asm. (Incl. Ref. #11-16)
(Superseded to 683059)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 682075

Shoulder Strap Assembly

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-3297

Oil-SAE 30 100 mi. Bottle
(Superseded to 77-4910)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 181101

Spout-Oil Fill

Note: Not Illustrated

$

$

Not available
