51920 - Lawn-Boy 15" String Trimmer (SN: 069000001 - 069999999) (1996) HANDLE & UPPER BOOM ASSEMBLY Parts Diagram

15" String Trimmer

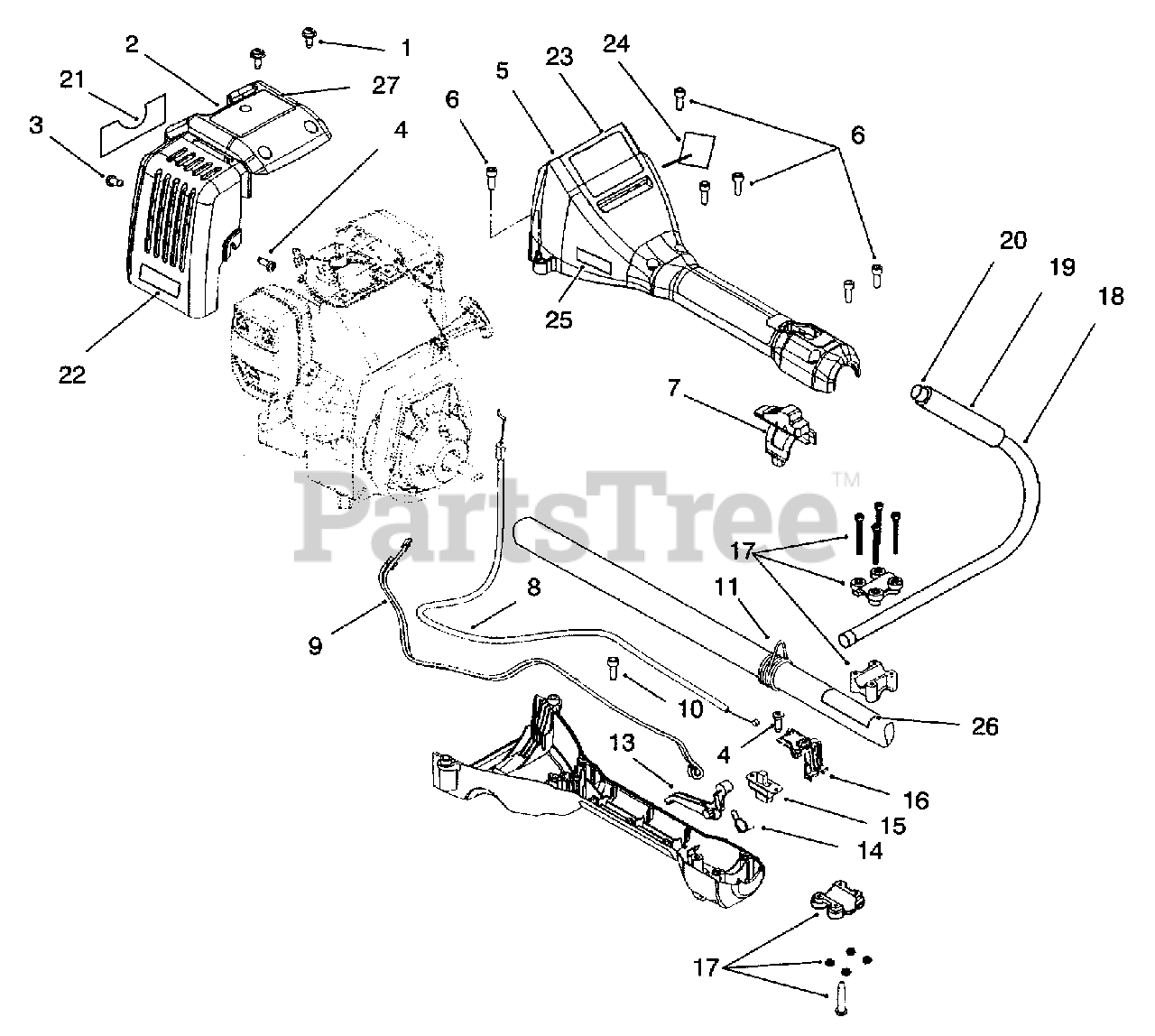

HANDLE & UPPER BOOM ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 181020

Screw

$

$

Not available

2

Lawn-Boy 181088

Cover-Engine

$

$

Not available

3

Lawn-Boy 181089

Screw

$

$

Not available

4

Lawn-Boy 181104

Screw-Engine Cover

$

$

Not available

5

Lawn-Boy 181090

Handle Assembly

$

$

Not available

6

Lawn-Boy 181070

Screw

$

$

Not available

7

Lawn-Boy 181091

Slide-Switch

$

$

Not available

8

Lawn-Boy 181093

Cable-Throttle

$

$

Not available

9

Lawn-Boy 181094

Lead-Wire 18"

$

$

Not available

10

Lawn-Boy 181095

Screw-Anti-Rotation

$

$

Not available

11

Lawn-Boy 610327

Clip-Shoulder Strap

$

$

Not available

13

Lawn-Boy 181096

Trigger

$

$

Not available

14

Lawn-Boy 610314

Spring

$10.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 181097

Switch

$

$

Not available

16

Lawn-Boy 181098

Retainer-Switch & Trigger

$

$

Not available

17

Lawn-Boy 683295

Handle Bracket Assembly

$

$

Not available

18

Lawn-Boy 181099

J-Handle Assembly (Incl. Ref. # 19 & 20)

$45.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 612831

Grip

$

$

Not available

20

Lawn-Boy 612021

Tube Closure

$

$

Not available

21

Lawn-Boy 9369

Decal-Oil

$

$

Not available

22

Lawn-Boy 92-3332

Decal-Hot Surface
(Superseded to 95-5084)

$

$

Not available

23

Lawn-Boy 9355

Decal-Toro

$

$

Not available

24

Lawn-Boy 9356

Decal-Carburetor

$

$

Not available

25

Lawn-Boy 9375

Decal-Unleaded Gas

$

$

Not available

26

Lawn-Boy 6693

Decal-Safety Symbols
(Superseded to 100200)

$

$

Not available

27

Lawn-Boy 9370

Decal-Trimmer

$

$

Currently unavailable

Lawn-Boy 181103

Decal-Kit

Note: Not Illustrated

$

$

Not available
