51919 - Toro 18" Brush Cutter (SN: 079000001 - 079999999) (1997) BOOM AND TRIMMER ASEMBLY Parts Diagram

18" Brush Cutter

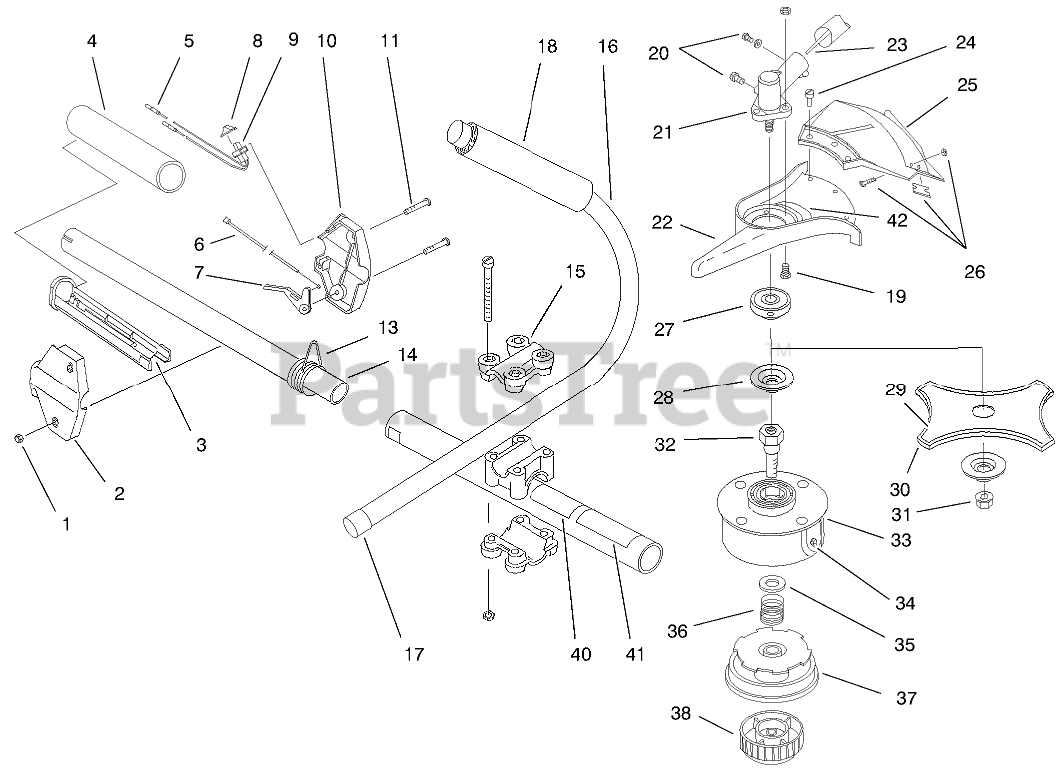

BOOM AND TRIMMER ASEMBLY Parts Diagram

  • Title

1

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

2

Toro 57-5481

RH HOUSING

$

$

Not available

3

Toro 53-7290

TROUGH 1"

$

$

Not available

4

Toro 53-7120

GRIP - RUBBER

$

$

Not available

5

Toro 92-3275

LEAD WIRE ASM

$

$

Not available

6

Toro 92-3278

THROTTLE CABLE

$

$

Not available

7

Toro 53-7273

THROTTLE LEVER

$

$

Not available

8

Toro 218-557

SWITCH COVER

$

$

Not available

9

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

10

Toro 57-5491

LH HOUSING

$

$

Not available

11

Toro 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

13

Toro 610327

Clip-Shoulder Strap

$

$

Not available

14

Toro 181528

ASM - DRIVE SHAFT HSG

$

$

Not available

15

Toro 683295

Handle Bracket Asm. (Incl. 4 Screws & 4 Nuts)

$

$

Not available

16

Toro 181099

J-Handle Asm. (Incl. Ref. #17-18)

$45.99

$

Usually ships in 3-6 days

0

17

Toro 612021

TUBE CLOSURE

$

$

Not available

18

Toro 612831

HANDLE NITRILE GRIP

$

$

Not available

19

Toro 147539

SCREWS - GUARD MOUNTING

$

$

Not available

20

Toro 684502

MTG HDW&PLUG SET

$

$

Not available

21

Toro 147488

ASSEMBLY - GEAR BOX

$

$

Not available

22

Toro 147492

GUARD MOUNT

$

$

Not available

23

Toro 92-3236

FLEXIBLE DRIVE SHAFT

$

$

Not available

24

Toro 683304

GUARD MNTG SCREW ASM

$

$

Not available

25

Toro 683299

GUARD & BLADE ASM

$

$

Not available

26

Toro 682061

BLADE ASM

$23.99

$

In Stock, only 1 left!

0

27

Toro 147489

BLADE DRIVER

$37.92

$

In Stock, only 1 left!

0

28

Toro 614201

Blade Retaining Washer
(Superseded to 147490)

$14.99

$

Usually ships in 3-6 days

0

29

Toro 613231

BLADE SAFETY GUARD

$

$

Not available

30

Toro 612031

Blade (Incl. Ref. #29)

$

$

Not available

31

Toro 613221

BLADE RETAINER NUT

$

$

Not available

32

Toro 612483

SPOOL SHAFT

$40.16

$

In Stock, only 1 left!

0

33

Toro 147494

Outer Spool & Eyelet Asm.
(Superseded to 683301)

$

$

Not available

34

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

35

Toro 612026

RETAINER ( 10 PACK)

$

$

Not available

36

Toro 610636

SPRING

$

$

Not available

37

Toro 147495

INNER REEL

$

$

Not available

38

Toro 180814

BUMP HEAD KNOB ASSEMBLY

$

$

Not available

40

Toro 92-3328

Decal-Safety Symbol
(Superseded to 95-5297)

$

$

Not available

41

Toro 92-3323

DECAL - SAFETY

$

$

Not available

42

Toro 92-3325

DECAL - WARNING

$

$

Not available

Toro 41-6820

#1 BULK SPOOL .095

Note: Not illustrated

$42.99

$

Usually ships in 3-6 days

0

Toro 682075

STRAP SHOULDER ACC

Note: Not illustrated

$

$

Not available

Toro 92-3294

Spool and Line (40 ft) Asm.
(Superseded to 88196)

Note: Not illustrated

$34.99

$

Usually ships in 3-6 days

0

Toro 147498

Complete Head Asm. (Incl. Ref. #32-38)

Note: Not illustrated

$

$

Not available

Toro 66-2090

Toro 2-Cycle Oil

Note: Not illustrated

$

$

Not available

Toro 613226

LOCKING ROD TOOL

Note: Not illustrated

$

$

Not available
