51919 - Lawn-Boy 18" Brush Cutter (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

18" Brush Cutter

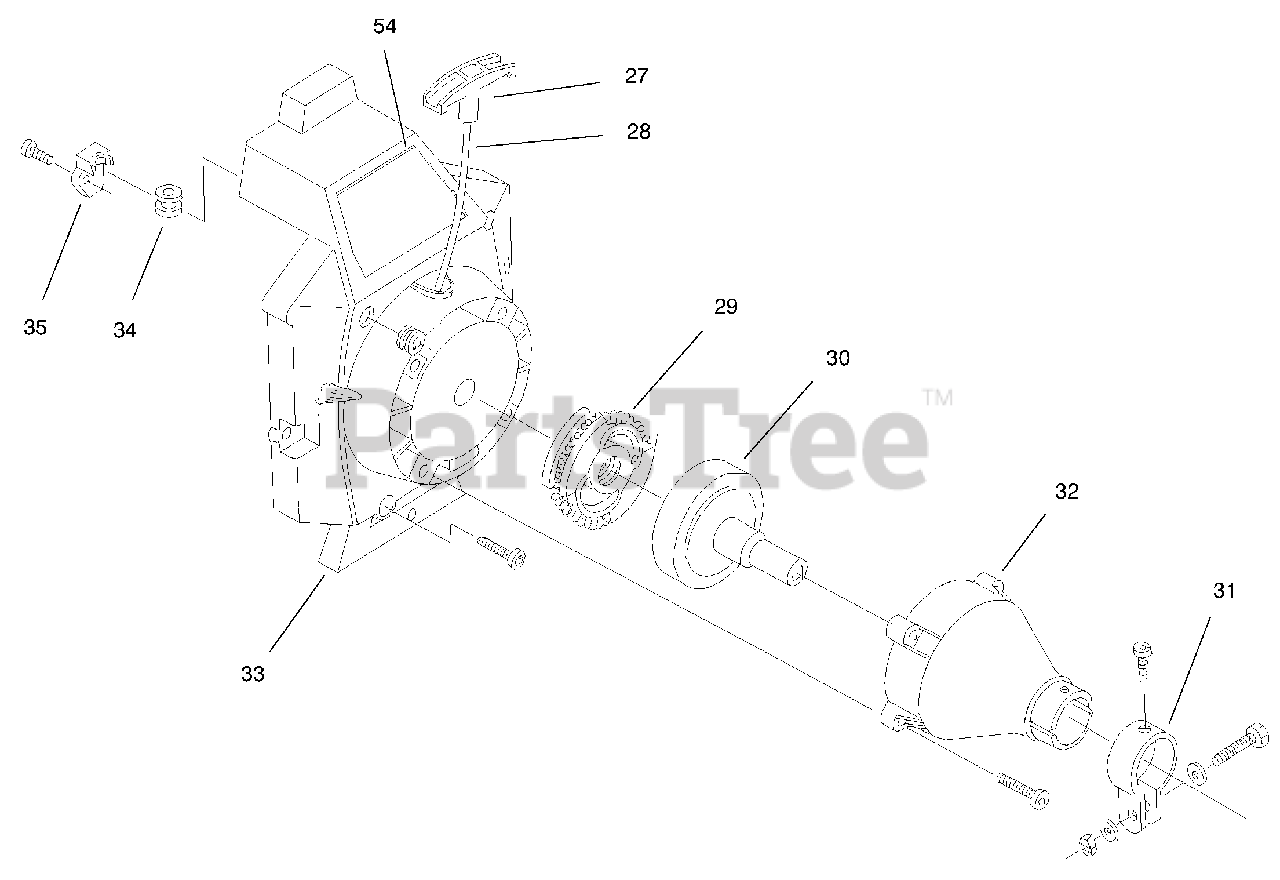

ENGINE ASSEMBLY Parts Diagram

  • Title

27

Lawn-Boy 610300

Pull Handle
(Superseded to 181079)

$15.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 613103

Starter Rope

$

$

Not available

29

Lawn-Boy 153591

Clutch Rotor Asm.
(Superseded to 181598)

$

$

Not available

30

Lawn-Boy 180232

Clutch Drum Asm.

$

$

Not available

31

Lawn-Boy 153597

Clamp Asm.

$

$

Not available

32

Lawn-Boy 180231

Clutch Housing Asm.

$

$

Not available

33

Lawn-Boy 92-3274

Starter Housing Asm.

$

$

Not available

34

Lawn-Boy 611061

Rope Guide

$

$

Not available

35

Lawn-Boy 153644

Pulley Retainer

$

$

Not available

54

Lawn-Boy 92-3344

Decal-Toro

$

$

Not available

Lawn-Boy 180247

Engine Gasket Kit

Note: Not Illustrated

$

$

Not available

Lawn-Boy 153308

Carb. Repair Kit (Walbro)
(Superseded to 180602)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180090

Carb. Repair Kit (Zama)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 181069

Gasket-Diaphragm Repair Kit (Walbro)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180091

Gasket-Diaphragm Repair Kit (Zama)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 610676

Flywheel Key

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180537

Piston Ring

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180248

Short Block Asm. (Incl. Ref. #5, 9, 10, 26, 36, 45-48)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 610309

Crankcase Seal

Note: Not Illustrated

$

$

Not available
