51916 - Toro 16" String Trimmer (SN: 089000001 - 089999999) (1998) ENGINE ASSEMBLY Parts Diagram

16" String Trimmer

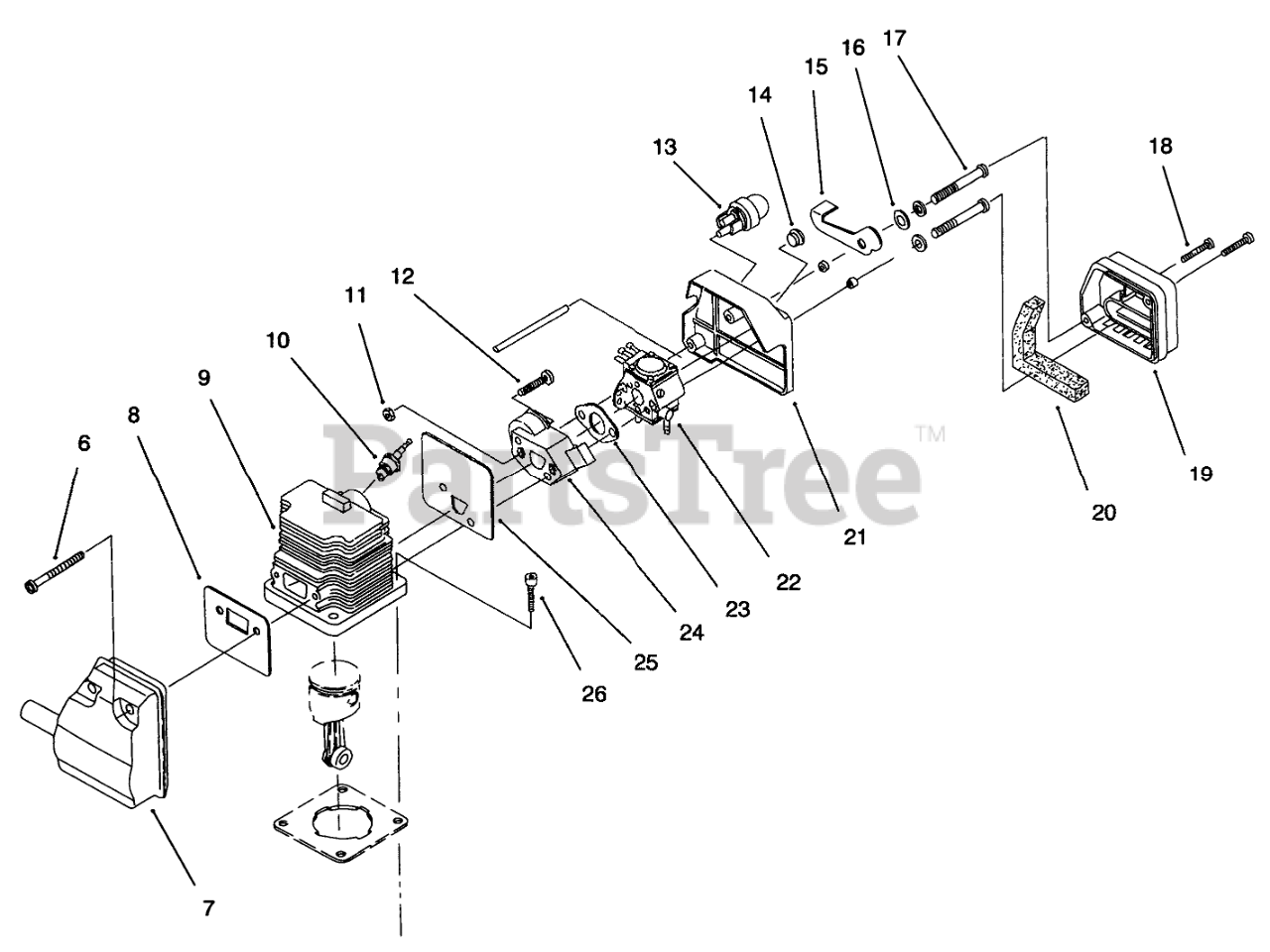

ENGINE ASSEMBLY Parts Diagram

  • Title

6

Toro 180214

MUFFLER MOUNTING SCREWS

$

$

Not available

7

Toro 180215

MUFFLER ASSEMBLY

$

$

Not available

8

Toro 180216

MUFFLER GASKET

$

$

Not available

9

Toro 181527

CYLINDER

$

$

Not available

10

Toro 610311

SPARK PLUG

$3.49

$

In Stock, only 3 left!

0

11

Toro 180217

SPACER NUT SET

$

$

Not available

12

Toro 180218

SPACER SCREW SET

$

$

Not available

13

Toro 683974

PRIMER & HOSE ASM

$

$

Not available

14

Toro 92-3281

SWITCH PLUG

$

$

Not available

15

Toro 180225

CHOKE LEVER

$

$

Not available

16

Toro 180226

WAVEY WASHER

$

$

Not available

17

Toro 180533

CARB MOUNTING ASM

$

$

Not available

18

Toro 180230

Screw
(Superseded to 68-3070)

$

$

Not available

19

Toro 180229

AIR CLEANER COVER

$

$

Not available

20

Toro 180228

FOAM AIR FILTER ELEMENT

$

$

Not available

21

Toro 180223

Air Cleaner Base Asm.

$

$

Not available

22

Toro 181526

ASM - CARBURETOR

$

$

Not available

23

Toro 612113

CARB.GASKET(PK.10=1)

$

$

Not available

24

Toro 180532

CARBURETOR SPACER ASM

$

$

Not available

25

Toro 180220

CYL/CARB SPACER GASKET

$

$

Not available

26

Toro 180221

SCREW

$

$

Not available
