51916 - Toro 16" String Trimmer (SN: 069000001 - 069999999) (1996) ENGINE ASSEMBLY Parts Diagram

16" String Trimmer

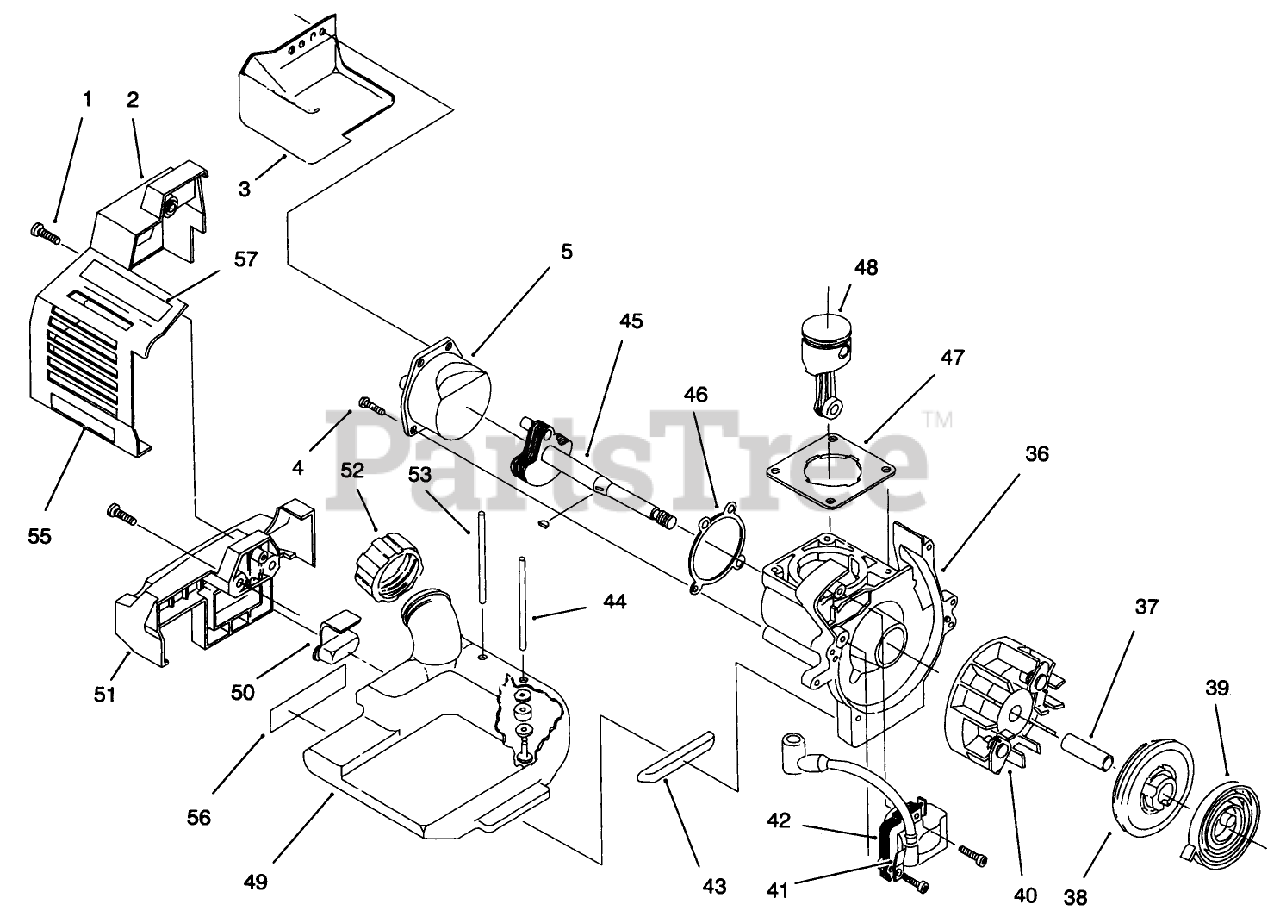

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 145888

CLUTCH COVER SCREW ASM

$

$

Not available

2

Toro 92-3273

REAR COVER

$

$

Not available

3

Toro 180211

HEAT SHIELD

$

$

Not available

4

Toro 180212

MOUNTING SCREW SET

$

$

Not available

5

Toro 180213

CRANKCASE CAP

$

$

Not available

36

Toro 180249

Crankcase Asm. (Incl. Ref. #5, 45-46)

$

$

Not available

37

Toro 145918

SPACER

$

$

Not available

38

Toro 180535

RECOIL PULLEY

$

$

Not available

39

Toro 613102

RECOIL SPRING

$23.99

$

Usually ships in 3-6 days

0

40

Toro 180929

FLYWHEEL

$

$

Not available

41

Toro 92-3223

GROUND TAB

$

$

Not available

42

Toro 180238

MODULE ASM

$

$

Not available

43

Toro 180239

FRONT FUEL TANK PAD

$

$

Not available

44

Toro 180244

FUEL LINE ASM

$

$

Not available

45

Toro 180245

POWER SHAFT ASM

$

$

Not available

46

Toro 180246

CRANKCASE CAP GASKET

$

$

Not available

47

Toro 180236

CYLINDER GASKET

$

$

Not available

48

Toro 180534

PISTON & ROD ASM

$

$

Not available

49

Toro 180240

FUEL TANK ASM

$

$

Not available

50

Toro 180241

REAR FUEL TANK PAD

$

$

Not available

51

Toro 180536

FUEL TANK BRACKET

$

$

Not available

52

Toro 180000

FUEL TANK CAP

$

$

Not available

53

Toro 180243

FUEL RETURN LINE

$

$

Not available

55

Toro 92-3332

Decal-Warning
(Superseded to 95-5084)

$

$

Not available

56

Toro 92-3334

Decal-Fuel & Oil Mix
(Superseded to 95-5082)

$

$

Not available

57

Toro 92-3345

DECAL - CARBURETOR

$

$

Not available
