51912 - Toro 16" String Trimmer (SN: 069000001 - 069999999) (1996) BOOM AND TRIMMER ASSEMBLY Parts Diagram

16" String Trimmer

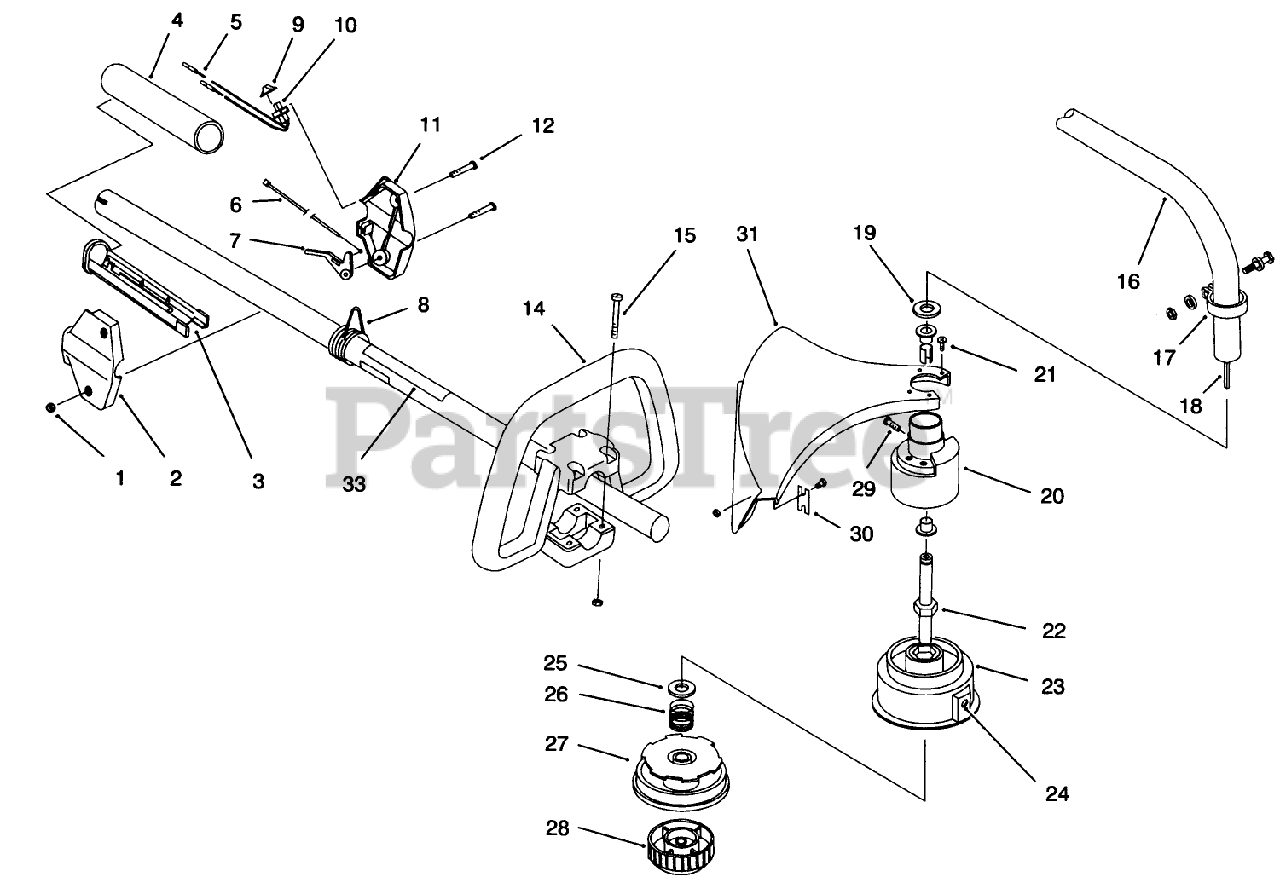

BOOM AND TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

2

Toro 57-5481

RH HOUSING

$

$

Not available

3

Toro 53-7290

TROUGH 1"

$

$

Not available

4

Toro 53-7120

GRIP - RUBBER

$

$

Not available

5

Toro 92-3239

LEAD WIRE ASM

$

$

Not available

6

Toro 92-3278

THROTTLE CABLE

$

$

Not available

7

Toro 53-7273

THROTTLE LEVER

$

$

Not available

8

Toro 610327

Clip-Shoulder Strap

$

$

Not available

9

Toro 218-557

SWITCH COVER

$

$

Not available

10

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

11

Toro 57-5491

LH HOUSING

$

$

Not available

12

Toro 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

14

Toro 180869

HANDLE W/HARDWARE

$

$

Not available

15

Toro 180870

HARDWARE - HANDLE

$10.99

$

Usually ships in 3-6 days

0

16

Toro 181529

ASM - DRIVE SHAFT HSG

$

$

Not available

17

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

18

Toro 682064

Drive Shaft
(Superseded to 92-3236)

$

$

Not available

19

Toro 181560

NUT

$

$

Not available

20

Toro 153312

BUSHING HSG ASM

$

$

Not available

21

Toro 180531

GUARD MTG SCREW ASM

$2.99

$

Usually ships in 3-6 days

0

22

Toro 153313

Shaft-Spool
(Superseded to 181784)

$

$

Not available

23

Toro 153619

OUTER SPOOL EYELET ASM

$51.99

$

Usually ships in 3-6 days

0

24

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

25

Toro 610660

RETAINER WASHER(SET OF 10)

$4.49

$

In Stock, Qty 19

0

26

Toro 610317

SPRING

$12.99

$

Usually ships in 3-6 days

0

27

Toro 610318

REEL - INNER

$41.99

$

In Stock, only 1 left!

0

28

Toro 682069

Assy.-Bump Head
(Superseded to 153066)

$

$

Not available

29

Toro 145569

ANTI-ROTATION SCREW

$

$

Not available

30

Toro 68206t

Blade Asm.

$

$

Currently unavailable

31

Toro 180341

Guard and Blade Asm. (Incl. Ref. #30)

$

$

Not available

33

Toro 92-3328

Decal-Safety Symbol
(Superseded to 95-5297)

$

$

Not available

Toro 610375

LOOP LINE

Note: Not illustrated

$

$

Not available

Toro 682075

STRAP SHOULDER ACC

Note: Not illustrated

$

$

Not available

Toro 92-3450

Reel/Line ASM
(Superseded to 88042)

Note: Not illustrated

$

$

Not available

Toro 683223

Complete Head Asm. (Incl. Ref. #19, 21-32)
(Superseded to 683059)

Note: Not illustrated

$

$

Not available

Toro 66-2090

Toro 2-Cycle Oil

Note: Not illustrated

$

$

Not available
