51912 - Lawn-Boy 16" String Trimmer (SN: 089000001 - 089999999) (1998) ENGINE ASSEMBLY Parts Diagram

16" String Trimmer

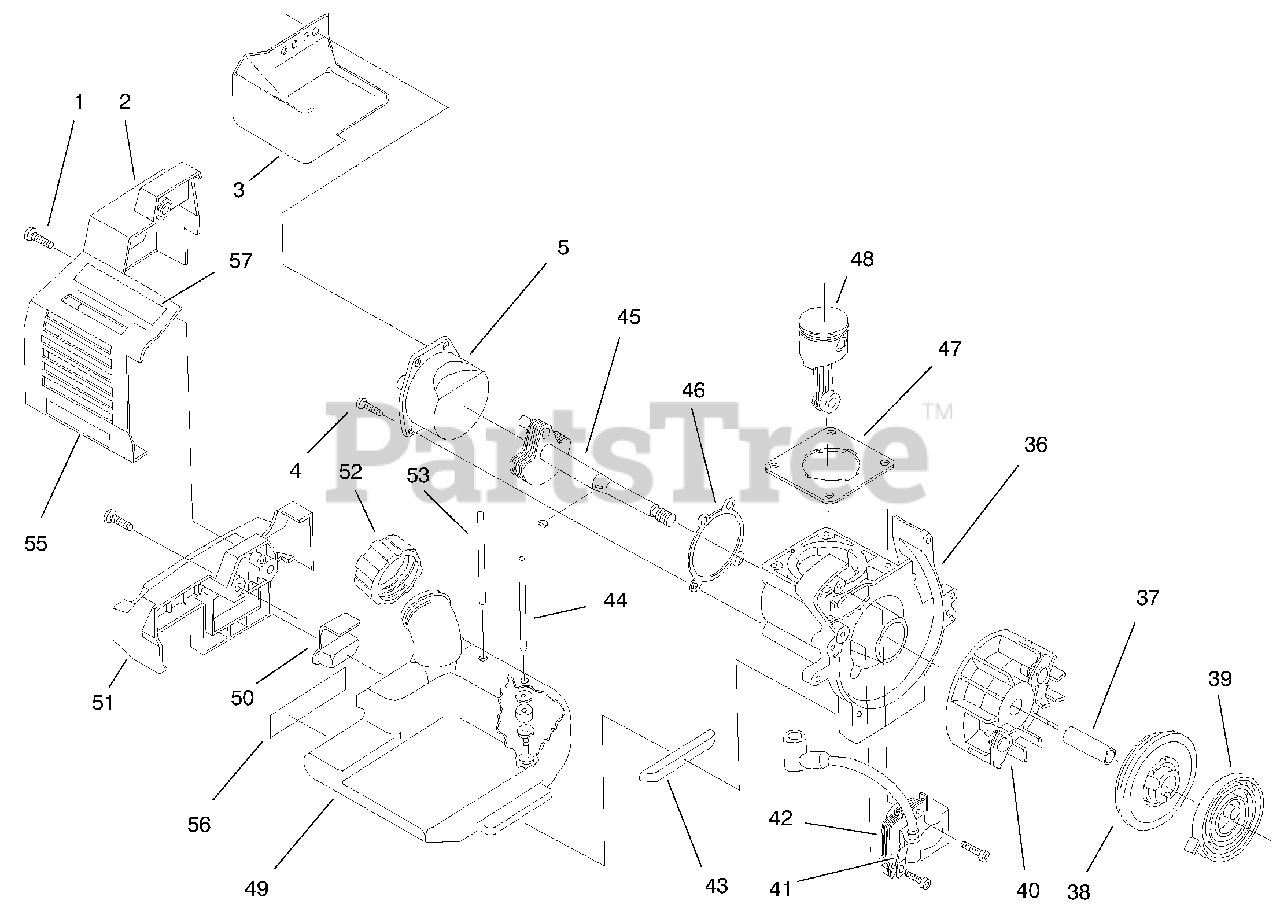

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 145888

CLUTCH COVER SCREW ASM

$

$

Not available

2

Lawn-Boy 92-3273

REAR COVER

$

$

Not available

3

Lawn-Boy 180211

HEAT SHIELD

$

$

Not available

4

Lawn-Boy 180212

MOUNTING SCREW SET

$

$

Not available

5

Lawn-Boy 180213

CRANKCASE CAP

$

$

Not available

36

Lawn-Boy 180249

Crankcase Asm. (Incl. Ref. # 5, 45-46)

$

$

Not available

37

Lawn-Boy 145918

SPACER

$

$

Not available

38

Lawn-Boy 180535

RECOIL PULLEY

$

$

Not available

39

Lawn-Boy 613102

RECOIL SPRING

$23.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 180929

FLYWHEEL

$

$

Not available

41

Lawn-Boy 92-3223

GROUND TAB

$

$

Not available

42

Lawn-Boy 180238

MODULE ASM

$

$

Not available

43

Lawn-Boy 180239

FRONT FUEL TANK PAD

$

$

Not available

44

Lawn-Boy 180244

FUEL LINE ASM

$

$

Not available

45

Lawn-Boy 180245

POWER SHAFT ASM

$

$

Not available

46

Lawn-Boy 180246

CRANKCASE CAP GASKET

$

$

Not available

47

Lawn-Boy 180236

CYLINDER GASKET

$

$

Not available

48

Lawn-Boy 180534

PISTON & ROD ASM

$

$

Not available

49

Lawn-Boy 180240

FUEL TANK ASM

$

$

Not available

50

Lawn-Boy 180241

REAR FUEL TANK PAD

$

$

Not available

51

Lawn-Boy 180536

FUEL TANK BRACKET

$

$

Not available

52

Lawn-Boy 180000

FUEL TANK CAP

$

$

Not available

53

Lawn-Boy 180243

FUEL RETURN LINE

$

$

Not available

55

Lawn-Boy 92-3332

Decal-Warning
(Superseded to 95-5084)

$

$

Not available

56

Lawn-Boy 92-3334

Decal-Fuel & Oil Mix
(Superseded to 95-5082)

$

$

Not available

57

Lawn-Boy 92-3345

DECAL - CARBURETOR

$

$

Not available
