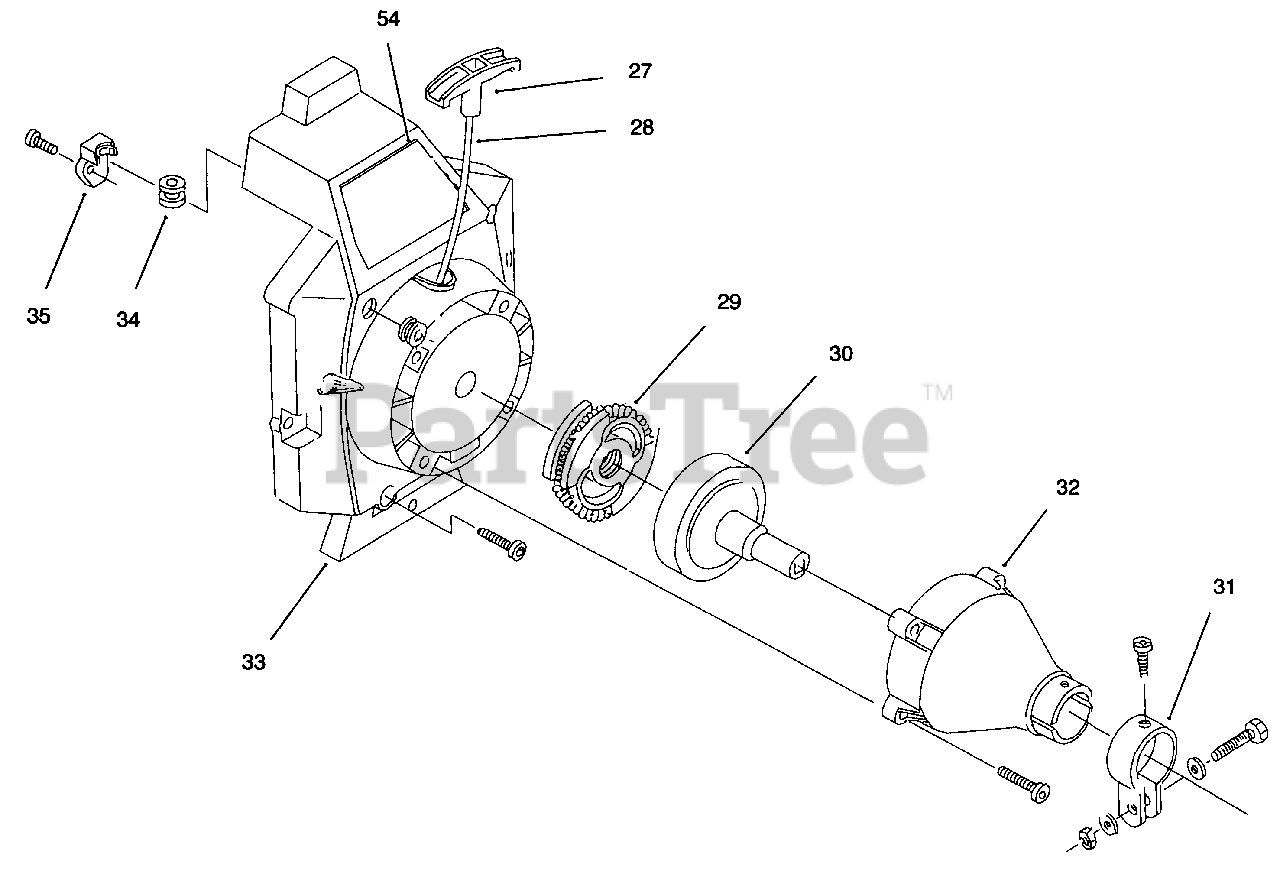

51911 - Lawn-Boy 16" String Trimmer (SN: 069000001 - 069999999) (1996) ENGINE ASSEMBLY Parts Diagram

16" String Trimmer

ENGINE ASSEMBLY Parts Diagram

  • Title

27

Lawn-Boy 610300

Handle-Pull
(Superseded to 181079)

$15.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 613103

ROPE

$

$

Not available

29

Lawn-Boy 153591

Clutch Rotor Asm.
(Superseded to 181598)

$

$

Not available

30

Lawn-Boy 180232

CLUTCH DRUM ASM

$

$

Not available

31

Lawn-Boy 153597

CLAMP ASM - UPPER

$

$

Not available

32

Lawn-Boy 180231

CLUTCH HSG ASM

$

$

Not available

33

Lawn-Boy 92-3274

STARTER HSG ASM

$

$

Not available

34

Lawn-Boy 611061

ROPE GUIDE

$

$

Not available

35

Lawn-Boy 153644

PULLEY RETAINER ASM

$

$

Not available

54

Lawn-Boy 92-3344

DECAL - TORO

$

$

Not available

Lawn-Boy 180247

ENGINE GASKET KIT

Note: Not Illustrated

$

$

Not available

Lawn-Boy 153308

Kit-Carb. Repair, Walbro
(Superseded to 180602)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180090

KIT - CARBUERTOR REPAIR

Note: Not Illustrated

$

$

Not available

Lawn-Boy 181069

GASKET-DIAPHRAGM REPAIR

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180091

GASKET-DIAPHRAGM REPAIR

Note: Not Illustrated

$

$

Not available

Lawn-Boy 610676

FLYWHEEL KEY (10-PK)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180537

PISTON RING SET

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180248

Short Block Asm. (Incl. Ref. #5, 9, 10, 26, 36, 45-48)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 610309

SEAL

Note: Not Illustrated

$

$

Not available
