51908 - Toro 18" Brush Cutter (SN: 069000001 - 069999999) (1996) BOOM AND TRIMMER ASSEMBLY Parts Diagram

18" Brush Cutter

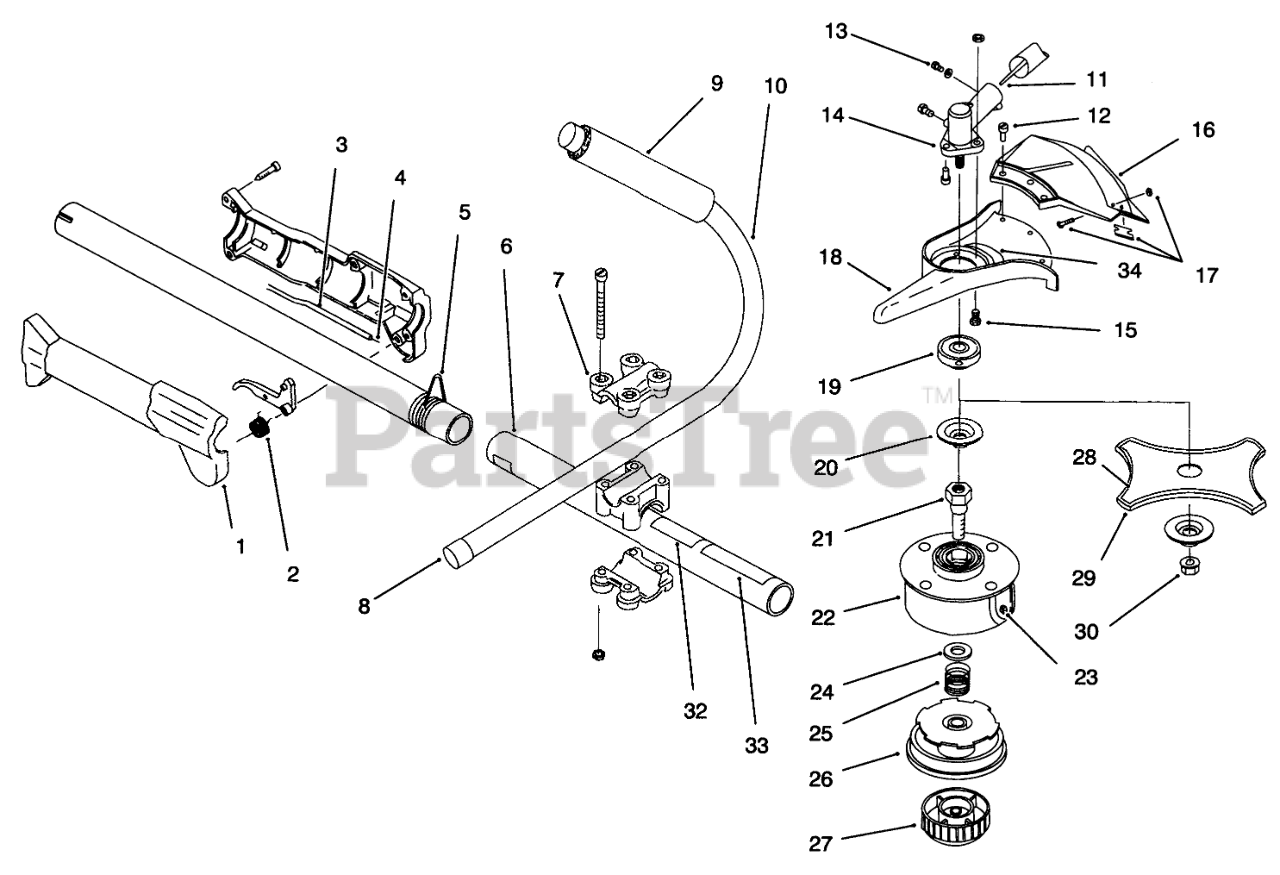

BOOM AND TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Toro 180277

ASM-THROTTLE HSG/TRIGGER

$

$

Not available

2

Toro 610314

THROTTLE TRIGGER SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 180021

Throttle Cable Housing
(Superseded to 181554)

$

$

Not available

4

Toro 180127

WIRE-THROTTLE

$

$

Not available

5

Toro 610327

Clip-Shoulder Strap

$

$

Not available

6

Toro 92-3287

DRIVE SHAFT HSG ASM

$196.99

$

Usually ships in 3-6 days

0

7

Toro 683295

HANDLE BRACKET ASM

$62.99

$

Usually ships in 3-6 days

0

8

Toro 612021

TUBE CLOSURE

$

$

Not available

9

Toro 612831

HANDLE NITRILE GRIP

$24.99

$

Usually ships in 3-6 days

0

10

Toro 181099

J-Handle Asm. (Incl. Ref. #8-9)

$45.99

$

Usually ships in 3-6 days

0

11

Toro 180406

SHAFT - FLEXIBLE DRIVE
(Superseded to 181817)

$

$

Not available

12

Toro 147539

SCREWS - GUARD MOUNTING

$

$

Not available

13

Toro 684502

MTG HDW&PLUG SET

$

$

Not available

14

Toro 147488

Gear Box Asm. (Incl. Ref. #13, 19, 20, 30)

$

$

Not available

15

Toro 683304

GUARD MNTG SCREW ASM

$

$

Not available

16

Toro 683299

Guard and Blade Asm. (Incl. Ref. #17)

$

$

Not available

17

Toro 682061

BLADE ASM

$22.99

$

In Stock, only 1 left!

0

18

Toro 147492

GUARD MOUNT

$

$

Not available

19

Toro 147489

BLADE DRIVER

$37.92

$

In Stock, only 1 left!

0

20

Toro 613222

Blade Retaining Washer
(Superseded to 147490)

$14.99

$

Usually ships in 3-6 days

0

21

Toro 612483

SPOOL SHAFT

$40.16

$

In Stock, only 1 left!

0

22

Toro 147494

Outer Spool & Eyelet Asm.
(Superseded to 683301)

$

$

Not available

23

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

24

Toro 612026

RETAINER ( 10 PACK)

$

$

Not available

25

Toro 610636

SPRING

$14.99

$

Usually ships in 3-6 days

0

26

Toro 147495

INNER REEL

$

$

Not available

27

Toro 180814

BUMP HEAD KNOB ASSEMBLY

$

$

Not available

28

Toro 145873

Blade
(Superseded to 92-3253)

$114.99

$

Usually ships in 3-6 days

0

29

Toro 613231

BLADE SAFETY GUARD

$

$

Not available

30

Toro 613221

BLADE RETAINER NUT

$

$

Not available

32

Toro 92-3328

Decal-Safety Symbol
(Superseded to 95-5297)

$

$

Not available

33

Toro 92-3323

DECAL - SAFETY

$

$

Not available

34

Toro 92-3325

DECAL - WARNING

$

$

Not available

Toro 613226

LOCKING ROD TOOL

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 682075

STRAP SHOULDER ACC

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 180120

MONOFLAIL LINE .095 50'

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 88196

Whole Goods (Spool & Line (40 ft) Asm.)

Note: Not Illustrated Optional Accessories

$33.99

$

Usually ships in 3-6 days

0

Toro 147498

Complete Head Asm. (Incl. Ref. #21-27)

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 180014

Blade Retaining Kit (Incl. Ref. #20 & 30)

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 66-2090

Toro 2-Cycle Oil

Note: Not Illustrated Optional Accessories

$

$

Not available
