51908 - Lawn-Boy 18" Brush Cutter (SN: 990000001 - 999999999) (1999) BOOM AND TRIMMER ASSEMBLY Parts Diagram

18" Brush Cutter

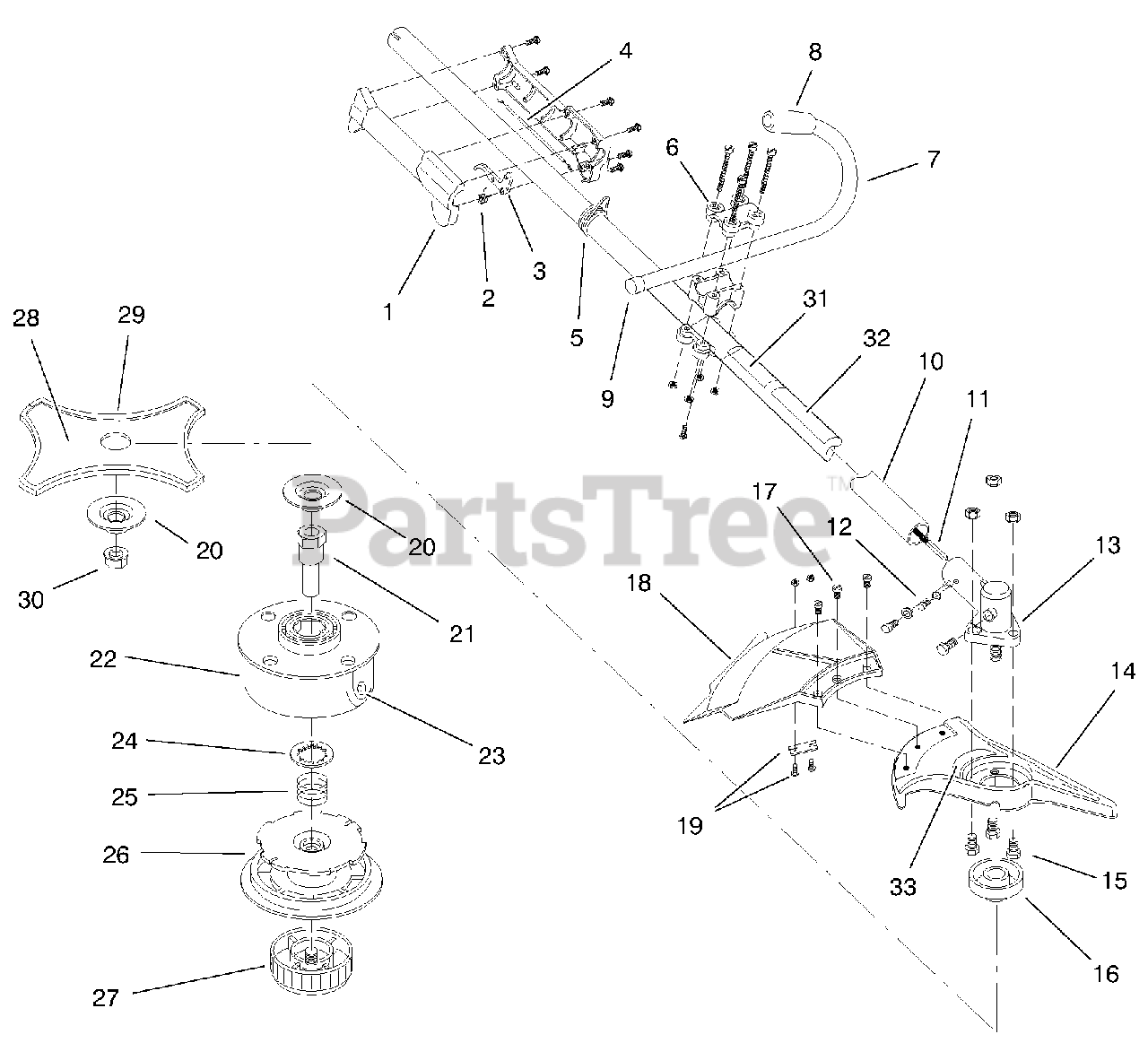

BOOM AND TRIMMER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 180277

Throttle Housing & Trigger ASM

$

$

Not available

2

Lawn-Boy 610314

Spring-Throttle Trigger

$10.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 180975

Throttle Trigger

$6.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 182068

Throttle Cable ASM

$

$

Not available

5

Lawn-Boy 610327

Support-Shoulder Harness

$

$

Not available

6

Lawn-Boy 683295

Handle Bracket ASM

$

$

Not available

7

Lawn-Boy 181099

J-Handle ASM (Includes Ref #8 & 9)

$45.99

$

Usually ships in 3-6 days

0

$

$

Not available

9

Lawn-Boy 612021

Tube Closure

$

$

Not available

10

Lawn-Boy 92-3287

Housing-Drive Shaft

$199.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 180406

Flexible Drive Shaft
(Superseded to 181817)

$

$

Not available

12

Lawn-Boy 684502

Mounting Hardware & Grease Plug ASM

$

$

Not available

13

Lawn-Boy 147488

Gearbox ASM (Incl. Ref #12, 15, 16, 30)

$

$

Not available

14

Lawn-Boy 147492

Shield Mount

$

$

Not available

15

Lawn-Boy 147539

Screw-Shield Mounting

$

$

Not available

16

Lawn-Boy 147489

Blade Driver

$37.92

$

In Stock, only 1 left!

0

17

Lawn-Boy 683304

Screw-Shield Mounting

$

$

Not available

18

Lawn-Boy 683299

Shield & Blade ASM (Includes Ref #19)

$

$

Not available

19

Lawn-Boy 682061

Blade ASM

$23.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 147490

Washer-Retaining

$14.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 612483

Spool Shaft

$40.16

$

In Stock, only 1 left!

0

22

Lawn-Boy 683301

Outer Spool & Eyelet

$

$

Not available

23

$16.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 612026

Retainer

$

$

Not available

25

$

$

Not available

26

Lawn-Boy 147495

Inner Reel

$

$

Not available

27

Lawn-Boy 180814

Bump Knob ASM

$

$

Not available

28

Lawn-Boy 145873

Blade
(Superseded to 92-3253)

$116.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 613231

Blade Cover

$

$

Not available

30

Lawn-Boy 613221

Nut-Lock

$

$

Not available

31

Lawn-Boy 92-3328

Decal-Safety Symbols
(Superseded to 95-5297)

$

$

Not available

32

Lawn-Boy 92-3323

Decal-Safety

$

$

Not available

33

Lawn-Boy 92-3325

Decal-Warning, Blade

$

$

Not available

Lawn-Boy 613226

Locking Rod Tool

Note: Not Illustrated-Optional Accessories

$

$

Not available

Lawn-Boy 682075

Shoulder Harness ASM

Note: Not Illustrated-Optional Accessories

$

$

Not available

Lawn-Boy 180120

Replacement Line (50 ft.)

Note: Not Illustrated-Optional Accessories

$

$

Not available

Lawn-Boy 92-3251

Reel & Line ASM

Note: Not Illustrated-Optional Accessories

$54.99

$

Usually ships in 3-6 days

0

Lawn-Boy 147489

Complete Head ASM (Includes Ref #21-27)

Note: Not Illustrated-Optional Accessories

$37.92

$

In Stock, only 1 left!

0

Lawn-Boy 180014

Blade Retaining Kit (Includes Ref #20&30)

Note: Not Illustrated-Optional Accessories

$

$

Not available

Lawn-Boy 66-2090

Toro 2-Cycle Oil

Note: Not Illustrated-Optional Accessories

$

$

Not available

Lawn-Boy 93-4471

Safety Glasses

Note: Not Illustrated-Optional Accessories

$

$

Not available
