51908 - Lawn-Boy 18" Brush Cutter (SN: 690000001 - 699999999) (1996) BOOM AND TRIMMER ASSEMBLY Parts Diagram

18" Brush Cutter

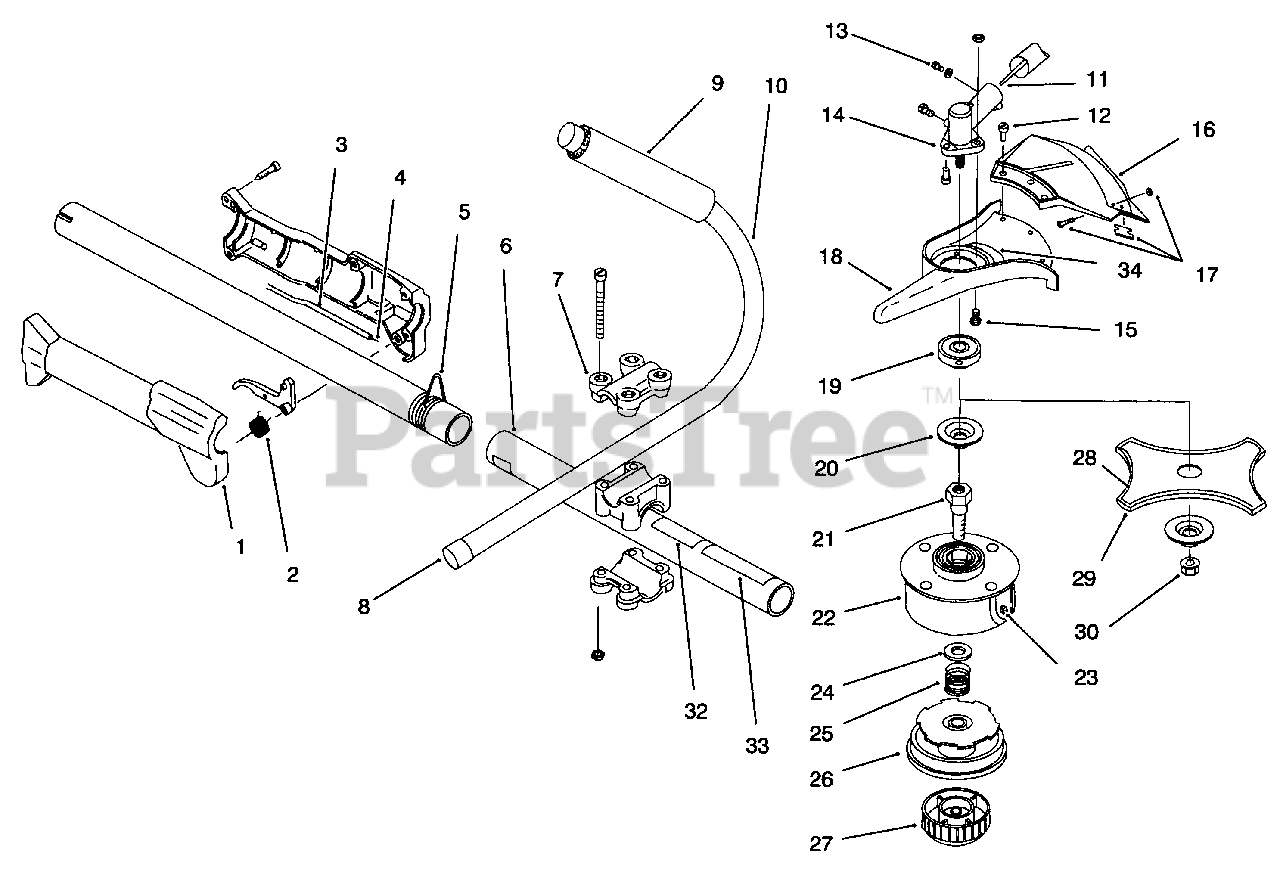

BOOM AND TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 180277

Throttle Housing & Trigger Asm.

$

$

Not available

2

Lawn-Boy 610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 180021

Throttle Cable Housing
(Superseded to 181554)

$

$

Not available

4

Lawn-Boy 180127

Throttle Cable

$

$

Not available

5

Lawn-Boy 610327

Shoulder Strap Clamp

$

$

Not available

6

Lawn-Boy 92-3287

Driv Shaft Housing Asm.

$199.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 683295

Handle Bracket Asm.

$

$

Not available

8

Lawn-Boy 612021

Tube Closure

$

$

Not available

9

Lawn-Boy 612831

Grip

$

$

Not available

10

Lawn-Boy 181099

J-Handle Asm. (Incl. Ref. #8-9)

$45.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 180406

Flexible Drive Shaft
(Superseded to 181817)

$

$

Not available

12

Lawn-Boy 147539

Guard Mounting Screws

$

$

Not available

13

Lawn-Boy 684502

Mounting Hardware & Grease Plug Asm.

$

$

Not available

14

Lawn-Boy 147488

Gear Box Asm. (Incl. Ref. #13, 19, 20, 30)

$

$

Not available

15

Lawn-Boy 683304

Guard Mounting Screws

$

$

Not available

16

Lawn-Boy 683299

Guard and Blade Asm. (Incl. Ref. #17)

$

$

Not available

17

Lawn-Boy 682061

Blade Asm.

$23.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 147492

Guard Mount

$

$

Not available

19

Lawn-Boy 147489

Blade Drive

$37.92

$

In Stock, only 1 left!

0

20

Lawn-Boy 613222

Blade Retaining Washer
(Superseded to 147490)

$14.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 612483

Spool Shaft

$40.16

$

In Stock, only 1 left!

0

22

Lawn-Boy 147494

Outer Spool & Eyelet Asm.
(Superseded to 683301)

$

$

Not available

23

Lawn-Boy 145566

Eyelet

$16.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 612026

Retainer

$

$

Not available

25

Lawn-Boy 610636

Spring

$

$

Not available

26

Lawn-Boy 147495

Inner Reel

$

$

Not available

27

Lawn-Boy 180814

Bump Head Knob Asm.

$

$

Not available

28

Lawn-Boy 145873

Blade
(Superseded to 92-3253)

$116.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 613231

Blade Cover

$

$

Not available

30

Lawn-Boy 613221

Lock Nut

$

$

Not available

32

Lawn-Boy 92-3328

Decal-Safety Symbols
(Superseded to 95-5297)

$

$

Not available

33

Lawn-Boy 92-3323

Decal-Safety

$

$

Not available

34

Lawn-Boy 92-3325

Decal-Warning

$

$

Not available

Lawn-Boy 613226

Locking Rod Tool

Note: Not Illustrated Optional Accessories

$

$

Not available

Lawn-Boy 682075

Shoulder Strap Asm.

Note: Not Illustrated Optional Accessories

$

$

Not available

Lawn-Boy 180120

Monoflail Cutting Line, 50 ft (.095 line)

Note: Not Illustrated Optional Accessories

$

$

Not available

Lawn-Boy 88196

Whole Goods (Spool & Line (40 ft) Asm.)

Note: Not Illustrated Optional Accessories

$34.99

$

Usually ships in 3-6 days

0

Lawn-Boy 147498

Complete Head Asm. (Incl. Ref. #21-27)

Note: Not Illustrated Optional Accessories

$

$

Not available

Lawn-Boy 180014

Blade Retaining Kit (Incl. Ref. #20 & 30)

Note: Not Illustrated Optional Accessories

$

$

Not available

Lawn-Boy 66-2090

Toro 2-Cycle Oil

Note: Not Illustrated Optional Accessories

$

$

Not available
