51907 - Toro 16" String Trimmer (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY Parts Diagram

16" String Trimmer

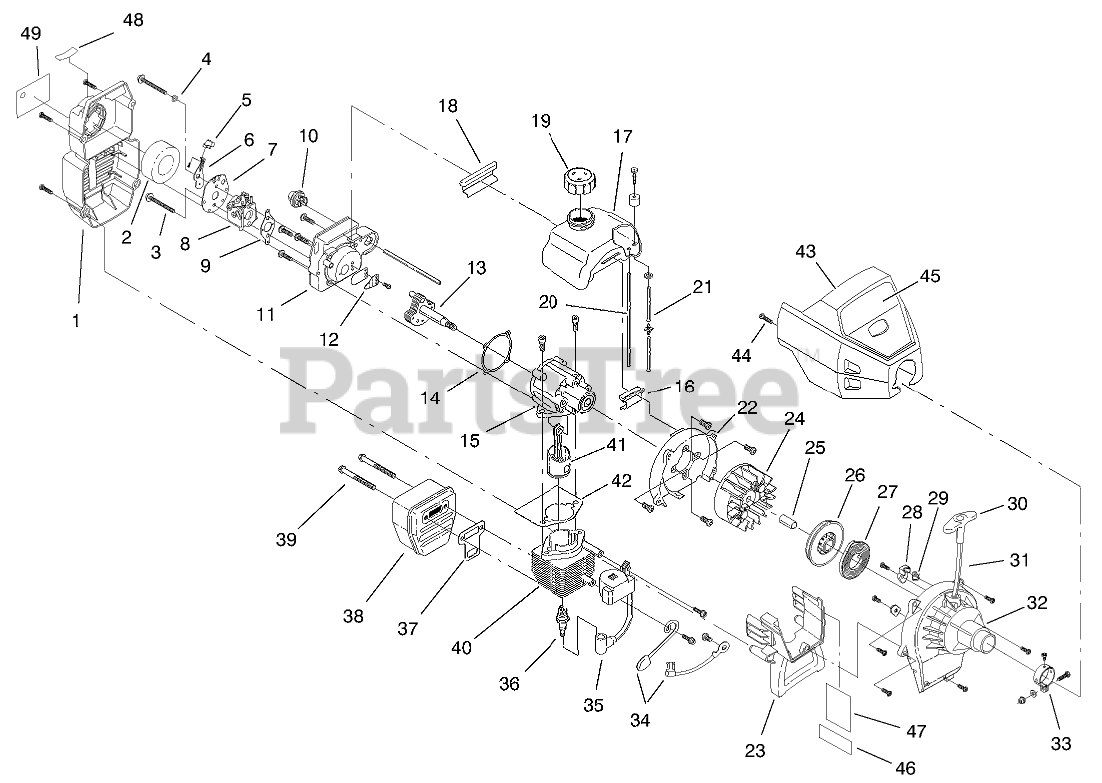

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 182059

Cover ASM (Includes Ref #2)

$63.99

$

Usually ships in 3-6 days

0

2

Toro 180350

FILTER - AIR CLEANER

$14.99

$

Usually ships in 3-6 days

0

3

Toro 180351

ASSEMBLY - MOUNTING BOLT

$

$

Not available

4

Toro 180226

WAVEY WASHER

$

$

Not available

5

Toro 182201

Choke Lever ASM (Includes Ref #6)
(Superseded to 182203)

$

$

Not available

6

Toro 182202

CHOKE KNOB & SCREW (SERVICE)

$

$

Not available

7

Toro 182203

Choke Lever & Plate (Includes Ref #5)

$

$

Not available

8

Toro 182062

ASM-CARBURETOR MOUNT

$

$

Not available

9

Toro 610675

CARBURETOR GASKET(10 PER PACK)

$6.99

$

In Stock, only 1 left!

0

10

Toro 683974

PRIMER & HOSE ASM

$

$

Not available

11

Toro 182063

CARB. MOUNT ASM.

$

$

Not available

12

Toro 684451

REED ASSEMBLY

$19.99

$

Usually ships in 3-6 days

0

13

Toro 181866

Power Shaft ASM

$

$

Not available

14

Toro 612115

CARB MT GASKET (10-PK)

$

$

Not available

15

Toro 181865

Crank Case ASM (Includes Ref #13)

$

$

Not available

16

Toro 145308

FRONT MOUNTING PAD

$

$

Not available

17

Toro 181502

Fuel Tank ASM (Includes Ref #19-21)

$

$

Not available

18

Toro 612134

REAR MOUNTING PAD

$

$

Not available

19

Toro 180000

FUEL TANK CAP

$

$

Not available

20

Toro 181168

ASSEMBLY - RETURN LINE

$12.99

$

In Stock, only 3 left!

0

21

Toro 682039

FUEL LINE ASM

$

$

Not available

22

Toro 683065

SHROUD ASM

$74.99

$

Usually ships in 3-6 days

0

23

Toro 182064

SHROUD EXTENSION (SERVICE)

$

$

Not available

24

Toro 181867

FLYWHEEL ASSEMBLY

$

$

Not available

25

Toro 610303

SQUARE DRIVE NUT

$

$

Not available

26

Toro 181597

RECOIL PULLEY ASM
(Superseded to 753-04232)

$

$

Not available

27

Toro 613102

RECOIL SPRING

$23.99

$

Usually ships in 3-6 days

0

28

Toro 180930

PULLEY RETAINER ASSEMBLY

$

$

Not available

29

Toro 611061

ROPE GUIDE

$

$

Not available

30

Toro 181079

HANDLE - STARTER

$15.99

$

Usually ships in 3-6 days

0

31

Toro 613103

ROPE

$

$

Not available

32

Toro 181687

ASM-HOUSING STARTER (SERVICE)

$

$

Not available

33

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

34

Toro 153611

Ground Tab

$

$

Not available

35

Toro 181937

MODULE ASM

$

$

Not available

36

Toro 610311

SPARK PLUG

$3.49

$

In Stock, only 3 left!

0

37

Toro 182065

GASKET-EXHAUST (SERVICE)

$

$

Not available

38

Toro 182066

Muffler ASM (Includes Ref #39)

$96.99

$

Usually ships in 3-6 days

0

39

Toro 147575

MUFFLER MTG BOLT ASM

$

$

Not available

40

Toro 181622

CYLINDER ASM

$

$

Not available

41

Toro 684449

PISTON & ROD ASM
(Superseded to 753-04367)

$

$

Not available

42

Toro 610674

CYLINDER GASKET

$

$

Not available

43

Toro 181500

COVER - ENGINE

$

$

Not available

44

Toro 180230

Screw
(Superseded to 68-3070)

$

$

Not available

45

Toro 95-5086

DECAL - ENGINE COVER

$

$

Not available

46

Toro 95-5084

DECAL - WARNING

$

$

Not available

47

Toro 95-5241

DECAL-CARB (SERVICE)

$

$

Not available

48

Toro 95-5242

DECAL-CHOKE POSITION (SERVICE)

$

$

Not available

49

Toro 95-5243

DECAL-FUEL & OIL MIX (SERVICE)

$

$

Not available

Toro 180034

KIT - ENGINE HARDWARE

Note: Items Not Illustrated

$

$

Not available

Toro 180011

KIT - ENGINE GASKET

Note: Items Not Illustrated

$

$

Not available

Toro 180602

CARB KIT

Note: Items Not Illustrated

$

$

Not available

Toro 180090

KIT - CARBUERTOR REPAIR

Note: Items Not Illustrated

$

$

Not available

Toro 181069

GASKET-DIAPHRAGM REPAIR

Note: Items Not Illustrated

$

$

Not available

Toro 180091

GASKET-DIAPHRAGM REPAIR

Note: Items Not Illustrated

$

$

Not available

Toro 180530

PISTON RING

Note: Items Not Illustrated

$

$

Not available

Toro 181863

Short Block ASM (Includes Ref #13, 15, 36, 40-42)

Note: Items Not Illustrated

$266.99

$

Usually ships in 3-6 days

0

Toro 181501

STARTER HOUSING SCREW SET

Note: Items Not Illustrated

$

$

Not available

Toro 95-5295

Card-Start Alert

Note: Items Not Illustrated

$

$

Currently unavailable

Toro 95-5294

Tag-Caution, Oil Mix

Note: Items Not Illustrated

$

$

Currently unavailable
