51907 - Toro 16" String Trimmer (SN: 079000001 - 079999999) (1997) BOOM AND TRIMMER ASSEMBLY Parts Diagram

16" String Trimmer

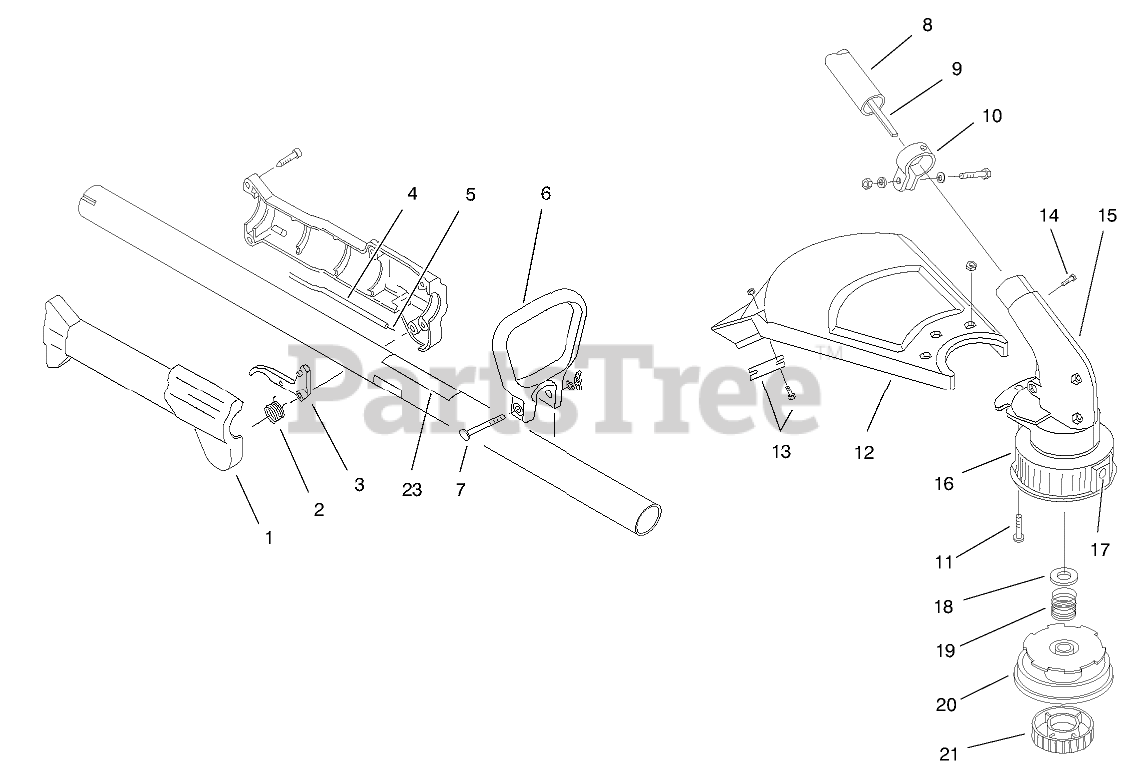

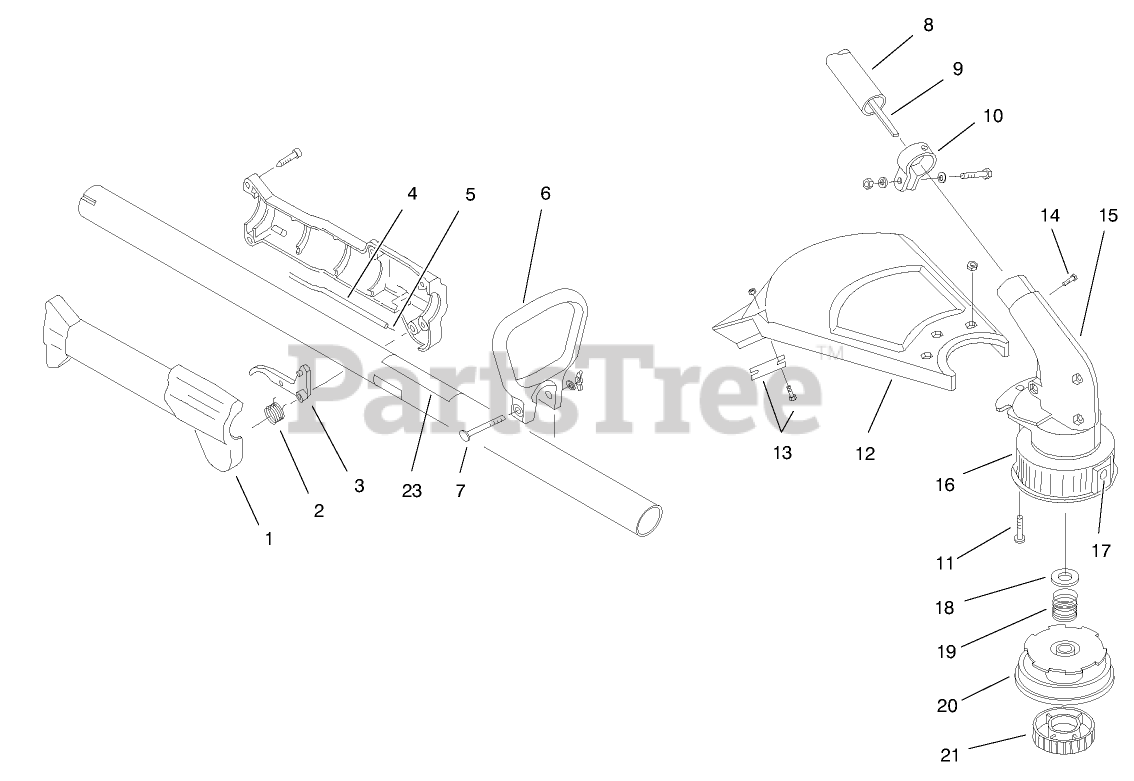

BOOM AND TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Toro 180981

Throttle Housing & Trigger Asm.
(Superseded to 182093)

$

$

Not available

2

Toro 610314

THROTTLE TRIGGER SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 180975

TRIGGER - THROTTLE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 181582

HOUSING-CABLE

$

$

Not available

5

Toro 610315

THROTTLE CABLE WIRE

$

$

Not available

6

Toro 145819

D-HANDLE

$

$

Not available

7

Toro 181587

HARDWARE - D-HANDLE

$22.99

$

Usually ships in 3-6 days

0

8

Toro 181507

ASM - SHAFT HOUSING

$

$

Not available

9

Toro 682064

Drive Shaft
(Superseded to 92-3236)

$97.99

$

Usually ships in 3-6 days

0

10

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

11

Toro 180547

ASM - GUARD MTG SCREW

$

$

Not available

12

Toro 180548

Guard and Blade Asm.
(Superseded to 95-5230)

$

$

Not available

13

Toro 682061

BLADE ASM

$22.99

$

In Stock, only 1 left!

0

14

Toro 145569

ANTI-ROTATION SCREW

$

$

Not available

15

Toro 180549

ASM - GEAR BOX

$

$

Not available

16

Toro 153619

OUTER SPOOL EYELET ASM

$49.99

$

Usually ships in 3-6 days

0

17

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

18

Toro 610660

RETAINER WASHER(SET OF 10)

$4.49

$

In Stock, Qty 19

0

19

Toro 610317

SPRING

$11.99

$

Usually ships in 3-6 days

0

20

Toro 610318

REEL - INNER

$39.99

$

In Stock, only 1 left!

0

21

Toro 682069

Assy.-Bump Head
(Superseded to 153066)

$

$

Not available

23

Toro 92-3328

Decal-Safety Symbol
(Superseded to 95-5297)

$

$

Not available

Toro 610375

LOOP LINE

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 92-3450

Reel/Line ASM
(Superseded to 88042)

Note: Not Illustrated Optional Accessories

$

$

Not available
