51906 - Toro 16" String Trimmer (SN: 099000001 - 099999999) (1999) BOOM AND TRIMMER ASSEMBLY Parts Diagram

16" String Trimmer

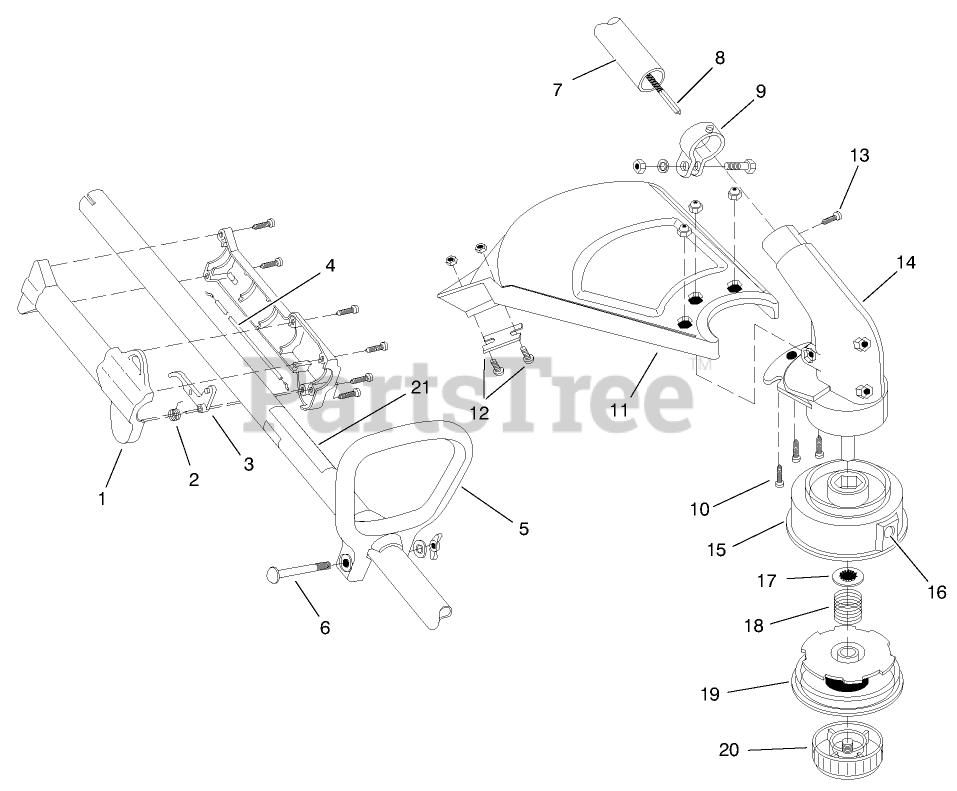

BOOM AND TRIMMER ASSEMBLY Parts Diagram

  • Title
1

Toro 182093

ASM.-THROTTLE HSG/TRIGGER

$

$

Not available

2

Toro 610314

THROTTLE TRIGGER SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 180975

TRIGGER - THROTTLE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 182092

ASM-HOUSING,THROTTLE CABLE (SERVICE)
(Superseded to 182068)

$

$

Not available

5

Toro 145819

D-HANDLE

$

$

Not available

6

Toro 181587

HARDWARE - D-HANDLE

$21.99

$

Usually ships in 3-6 days

0

7

Toro 181507

ASM - SHAFT HOUSING

$

$

Not available

8

Toro 92-3236

FLEXIBLE DRIVE SHAFT

$

$

Not available

9

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

10

Toro 180547

ASM - GUARD MTG SCREW

$

$

Not available

11

Toro 95-5230

ASM - GUARD W/BLADE

$

$

Not available

12

Toro 682061

BLADE ASM

$23.99

$

In Stock, only 1 left!

0

13

Toro 95-5765

Anti-Rotation Screw
(Superseded to 145569)

$

$

Not available

14

Toro 180549

ASM - GEAR BOX

$

$

Not available

15

Toro 153619

OUTER SPOOL EYELET ASM

$51.99

$

Usually ships in 3-6 days

0

16

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

17

Toro 610660

RETAINER WASHER(SET OF 10)

$4.49

$

In Stock, Qty 19

0

18

Toro 610317

SPRING

$12.99

$

Usually ships in 3-6 days

0

19

Toro 610318

REEL - INNER

$41.99

$

In Stock, only 1 left!

0

20

Toro 153066

SMALL BUMP KNOB ASM

$

$

Not available

21

Toro 95-5297

DECAL - SAFETY SYMBOLS

$

$

Not available

Toro 610375

LOOP LINE

Note: Not Illustrated-Optional Accessories

$

$

Not available

Toro 88042

Reel/Line ASM

Note: Not Illustrated-Optional Accessories

$

$

Not available

Toro 682075

STRAP SHOULDER ACC

Note: Not Illustrated-Optional Accessories

$

$

Not available

Toro 66-2090

Toro 2-Cycle Oil

Note: Not Illustrated-Optional Accessories

$

$

Not available

Toro 93-4471

GLASSES - SAFETY

Note: Not Illustrated-Optional Accessories

$

$

Not available
