51904 - Lawn-Boy 18" String Trimmer (SN: 790000001 - 799999999) (1997) BOOM AND TRIMMER ASSEMBLY Parts Diagram

18" String Trimmer

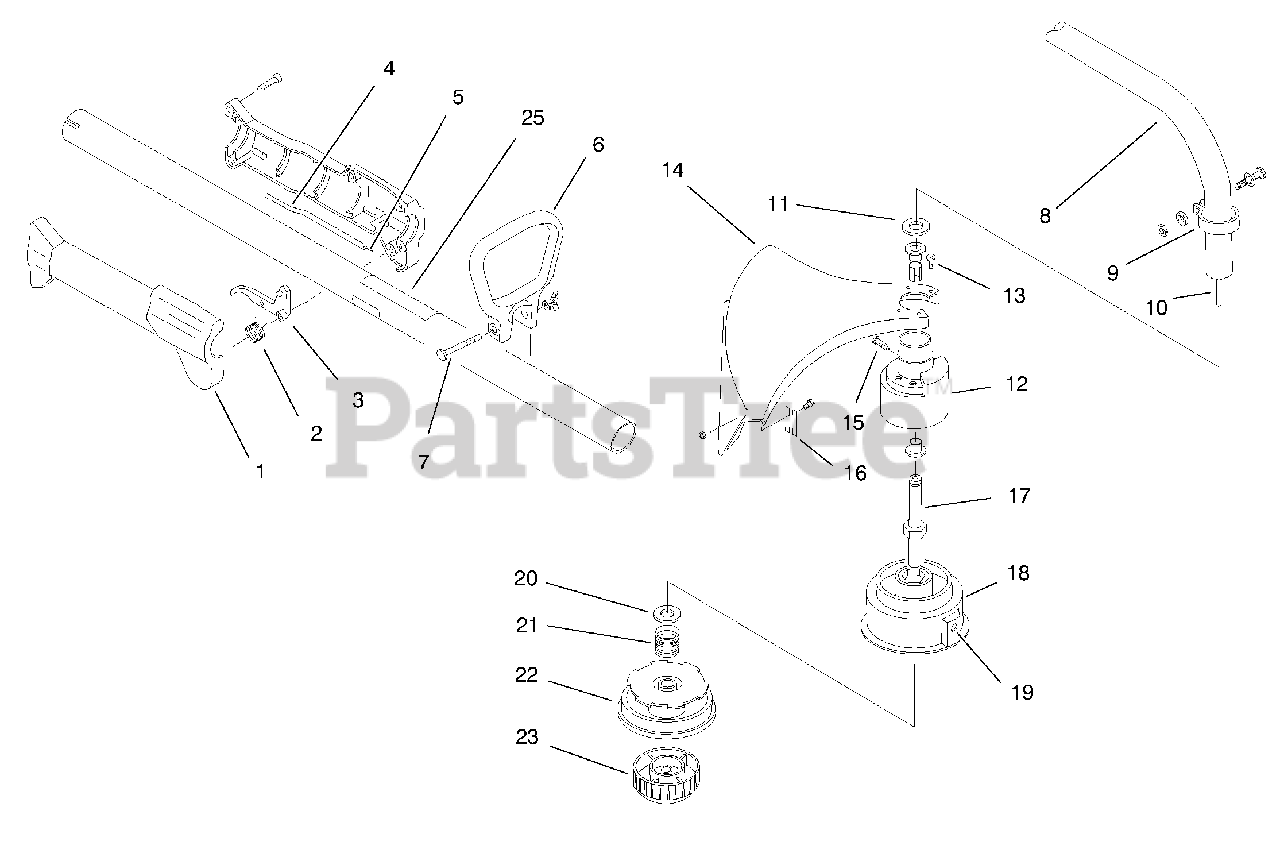

BOOM AND TRIMMER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 180981

Throttle Housing & Trigger Asm.
(Superseded to 182093)

$

$

Not available

2

Lawn-Boy 610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 180975

Throttle Trigger

$6.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 181582

Throttle Cable Housing

$

$

Not available

5

Lawn-Boy 610315

Throttle Cable

$

$

Not available

6

Lawn-Boy 145819

D-Handle

$

$

Not available

7

Lawn-Boy 181587

D-Handle Hardware Asm.

$21.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 92-3286

Drive Shaft Housing Asm.

$190.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 153597

Clamp Asm.

$

$

Not available

10

Lawn-Boy 682064

Flexible Drive Shaft
(Superseded to 92-3236)

$

$

Not available

11

$

$

Not available

12

Lawn-Boy 153312

Bushing Housing Asm.

$

$

Not available

13

Lawn-Boy 180531

Guard Mounting Screw Asm.

$2.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 153646

Guard and Blade Asm. (Incl. Ref. #16)
(Superseded to 95-5233)

$

$

Not available

15

Lawn-Boy 145569

Anti-Rotation Screw

$

$

Not available

16

Lawn-Boy 682061

Blade Asm.

$23.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 153313

Spool Shaft
(Superseded to 181784)

$

$

Not available

18

Lawn-Boy 153619

Outer Spool and Eyelet Asm.

$51.99

$

Usually ships in 3-6 days

0

19

$16.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 612026

Retainer

$

$

Not available

21

$12.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 610318

Inner Reel

$41.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 682069

Bump Head Knob Asm.
(Superseded to 153066)

$

$

Not available

25

Lawn-Boy 92-3328

Decal-Safety Symbols
(Superseded to 95-5297)

$

$

Not available

Lawn-Boy 682075

Shoulder Strap Asm.

Note: Not Illustrated Optional Accessories

$

$

Not available

Lawn-Boy 610375

Monoflail Cutting Line, 50 ft (.080 line)

Note: Not Illustrated Optional Accessories

$

$

Not available

Lawn-Boy 92-3450

Spool and Line (25 ft) Asm.
(Superseded to 88042)

Note: Not Illustrated Optional Accessories

$

$

Not available

Lawn-Boy 66-2090

Toro 2-Cycle Oil

Note: Not Illustrated Optional Accessories

$

$

Not available
