51903 - Toro 18" String Trimmer (SN: 079000001 - 079999999) (1997) BOOM AND TRIMMER ASSEMBLY Parts Diagram

18" String Trimmer

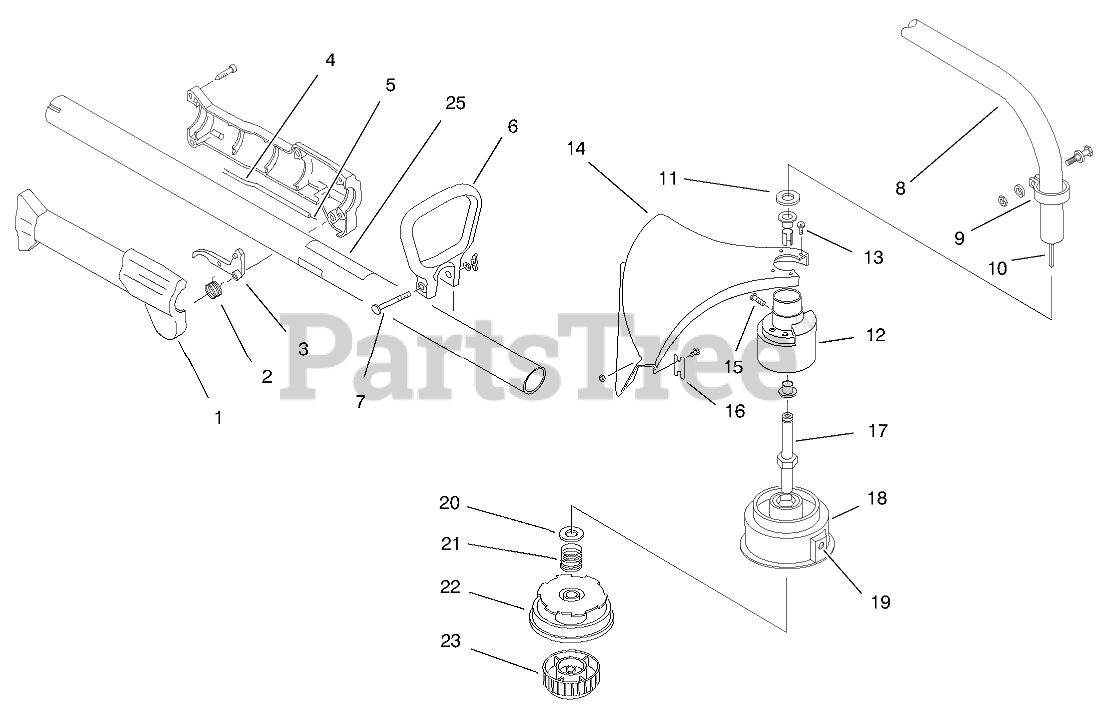

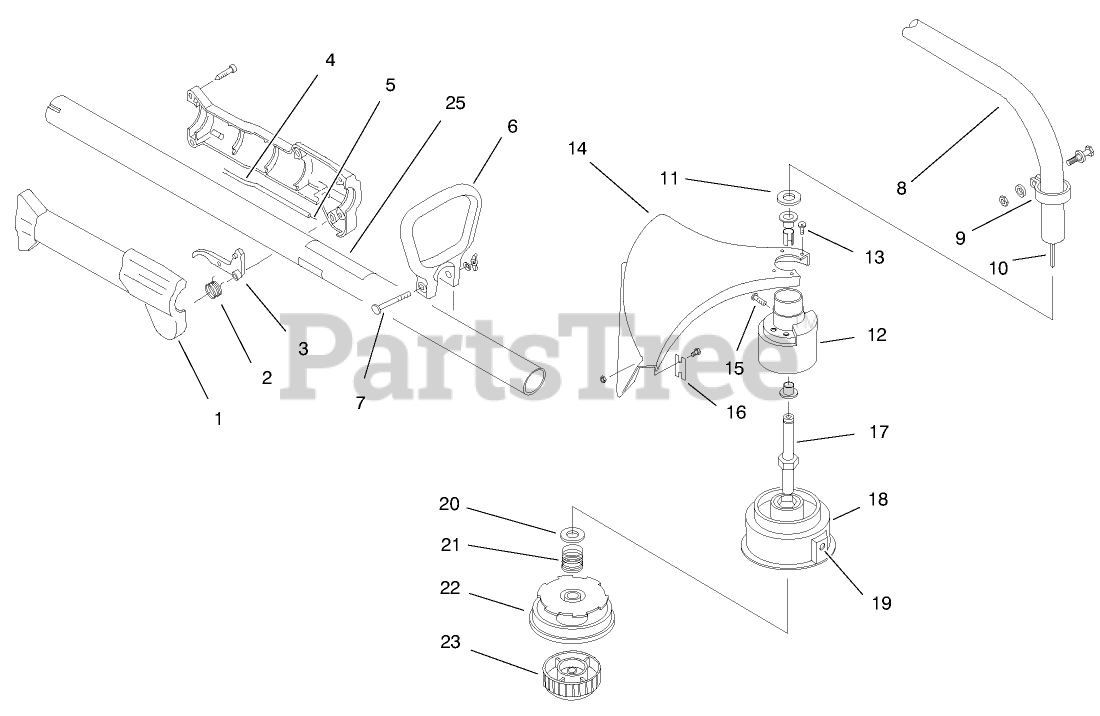

BOOM AND TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Toro 180981

Throttle Housing & Trigger Asm.
(Superseded to 182093)

$

$

Not available

2

Toro 92-3383

SPRING - TRIGGER
(Superseded to 610314)

$10.99

$

Usually ships in 3-6 days

0

3

Toro 92-3384

HSG - THROTTLE TRIGGER
(Superseded to 180975)

$6.49

$

Usually ships in 3-6 days

0

4

Toro 92-3375

Throttle Cable Housing
(Superseded to 181582)

$

$

Not available

5

Toro 92-3381

Throttle Cable
(Superseded to 610315)

$

$

Not available

6

Toro 92-3391

D-Handle
(Superseded to 145819)

$

$

Not available

7

Toro 181587

HARDWARE - D-HANDLE

$21.99

$

Usually ships in 3-6 days

0

8

Toro 92-3286

DRIVE SHAFT HSG ASM

$190.99

$

Usually ships in 3-6 days

0

9

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

10

Toro 95-5298

SHAFT - FLEX, 48.94

$80.99

$

Usually ships in 3-6 days

0

11

Toro 181560

NUT

$

$

Not available

12

Toro 153312

BUSHING HSG ASM

$

$

Not available

13

Toro 95-5770

Guard Mounting Screw
(Superseded to 180531)

$2.99

$

Usually ships in 3-6 days

0

14

Toro 92-3398

Guard and Blade Asm. (Incl. Ref. #16)
(Superseded to 95-5233)

$

$

Not available

15

Toro 95-5765

Anti-Rotation Screw
(Superseded to 145569)

$

$

Not available

16

Toro 682061

BLADE ASM

$23.99

$

In Stock, only 1 left!

0

17

Toro 153313

Shaft-Spool
(Superseded to 181784)

$

$

Not available

18

Toro 153619

OUTER SPOOL EYELET ASM

$51.99

$

Usually ships in 3-6 days

0

19

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

20

Toro 612026

RETAINER ( 10 PACK)

$

$

Not available

21

Toro 610317

SPRING

$12.99

$

Usually ships in 3-6 days

0

22

Toro 610318

REEL - INNER

$41.99

$

In Stock, only 1 left!

0

23

Toro 153066

SMALL BUMP KNOB ASM

$

$

Not available

25

Toro 95-5297

DECAL - SAFETY SYMBOLS

$

$

Not available

Toro 682075

STRAP SHOULDER ACC

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 610375

LOOP LINE

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 92-3293

Spool & Line (25 ft.) Asm.
(Superseded to 88192)

Note: Not Illustrated Optional Accessories

$27.99

$

In Stock, only 3 left!

0

Toro 66-2090

Toro 2-Cycle Oil

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 93-4471

GLASSES - SAFETY

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 88192

Spool/Line Asm

Note: Not Illustrated Optional Accessories

$27.99

$

In Stock, only 3 left!

0
