51880 - Toro 14" Power Plex 40V MAX Chainsaw (SN: 321000001 - 321999999) (2021) 14in Cordless Chainsaw Assembly Parts Diagram

14" Power Plex 40V MAX Chainsaw

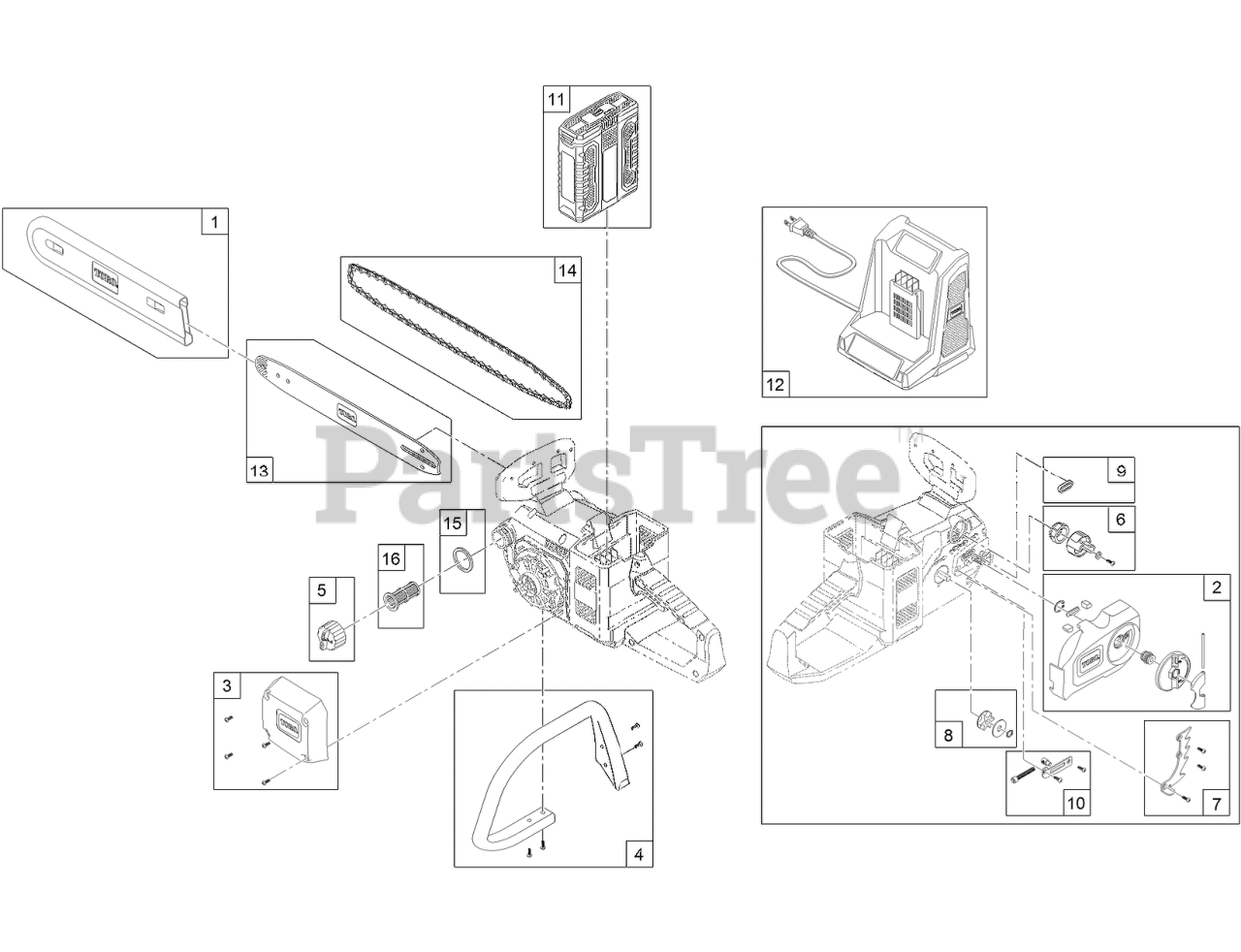

14in Cordless Chainsaw Assembly Parts Diagram

  • Title

1

Toro 136-2564

SLEEVE-BAR/CHAIN

$7.49

$

Usually ships in 3-6 days

0

2

Toro 136-2565

CHAIN BAR PANEL ASM

$18.99

$

Usually ships in 3-6 days

0

3

Toro 136-2566

COVER-MOTOR

$10.99

$

Usually ships in 3-6 days

0

4

Toro 136-2567

HANDLE

$14.99

$

Usually ships in 3-6 days

0

5

Toro 136-2642

CAP-OIL, BAR

$3.99

$

Usually ships in 3-6 days

0

6

Toro 136-2569

ADJUSTER KNOB WITH BAR AND CHAIN ASM

$14.99

$

Usually ships in 3-6 days

0

7

Toro 136-2570

BUCKING TEETH BRACKET ASM

$11.99

$

Usually ships in 3-6 days

0

8

Toro 136-2583

SPROCKET-DRIVE, CHAIN

$4.99

$

Usually ships in 3-6 days

0

9

Toro 136-2584

GASKET-OIL, BAR/HOUSING

$0.99

$

Usually ships in 3-6 days

0

10

Toro 136-2585

ADJUSTER BAR WITH PIN AND SCREW ASM

$19.99

$

Usually ships in 3-6 days

0

11

Toro 88540

BATTERY-40V MAX

$

$

Not available

12

Toro 88542

CHARGER-40V MAX

$

$

Not available

13

Toro 88580

Bar-REPLACEMENT

$51.99

$

Usually ships in 3-6 days

0

14

Toro 88581

CHAIN-REPLACEMENT

$25.99

$

Usually ships in 3-6 days

0

15

Toro 136-2643

GASKET-OIL CAP, BAR

$1.49

$

Usually ships in 3-6 days

0

16

Toro 136-2644

STRAINER-OIL, BAR

$

$

Not available
