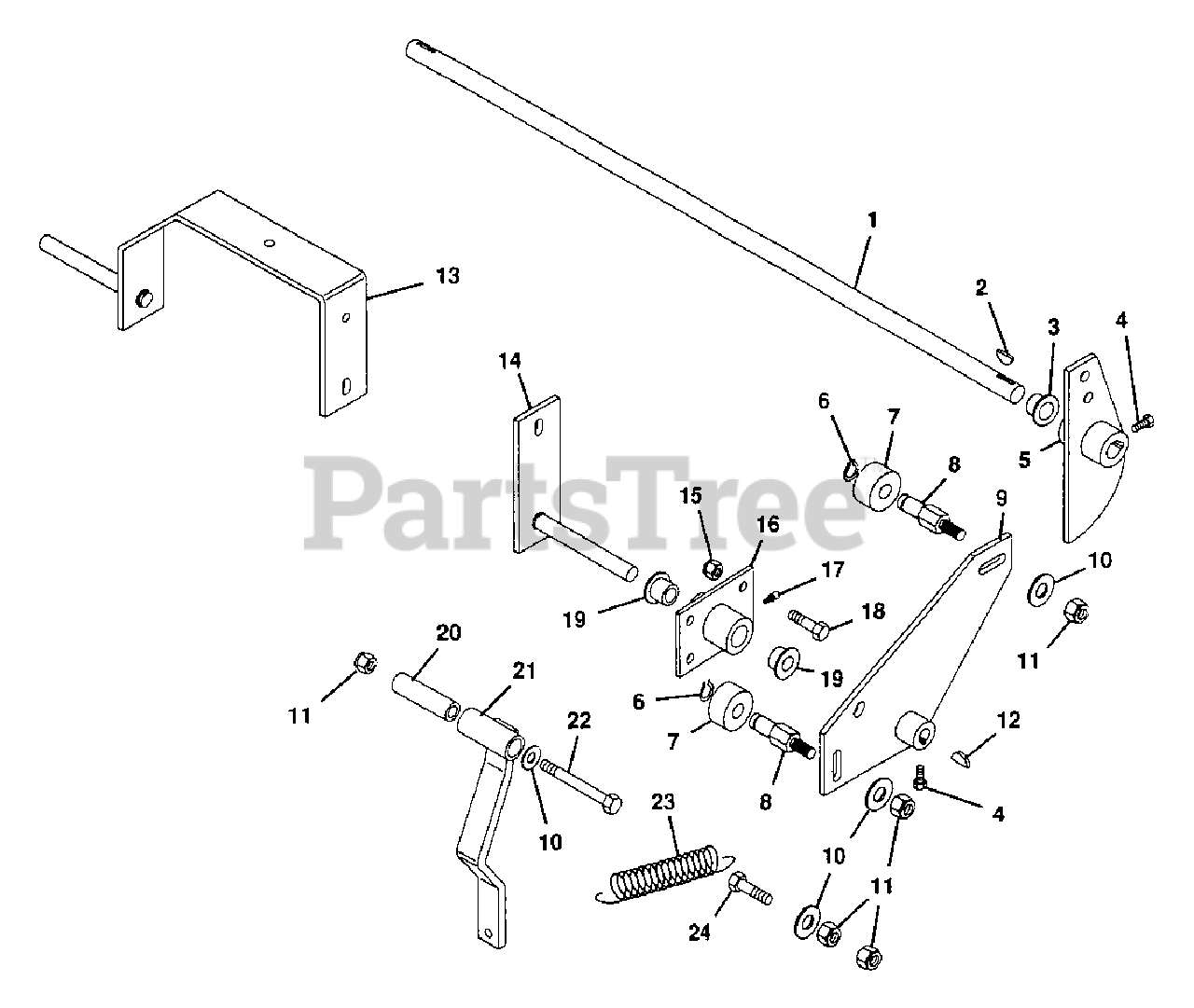

51807 - Gravely Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton Wheel Drive Parts Diagram

Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton

Wheel Drive Parts Diagram

  • Title

1

51131

Shaft, Speed Control Cam

$

$

Not available

2

Gravely 124552

Key, Woodruff .187x1.00 Hrd. #13
(Superseded to 21051400)

$

$

Not available

3

45787

Bush., Flg. .630x1.00x.625 Ny.

$

$

Not available

4

Gravely 180016

Bolt, Hex 1/4-20x.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

5

51117

Weldment, Control Cam

$

$

Not available

6

48988

Ring, Retaining .500 Shaft

$

$

Not available

7

50993

Roller, Nylon

$

$

Not available

8

51123

Pin, Roller

$

$

Not available

9

51120

Weldment, Control Arm

$

$

Not available

10

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 456004

Nut, Lock 3/8-15
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 124547

Key, Woodruff .125x.75
(Superseded to 06608600)

$2.99

$

Usually ships in 4-12 days

0

13

51111

Weldment, Pump Control R.H.

$

$

Not available

14

51112

Weldment, Pump Control L.H.

$

$

Not available

15

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

16

51108

Weldment, Bushing Support

$

$

Not available

17

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

18

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

19

34738

Bush., Flg .515x1.00x.745 Ny.

$

$

Not available

20

49022

Bush., St. .385x.610x1.80 Stl.

$

$

Not available

21

51124

Weldment, Detent Strap

$

$

Not available

22

Gravely 180137

Bolt, Hex 3/8-16x2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

23

51233

Spring, Ext. LE-063F-5

$

$

Not available

24

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0
