51807 - Gravely Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton Steering Control Parts Diagram

Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton

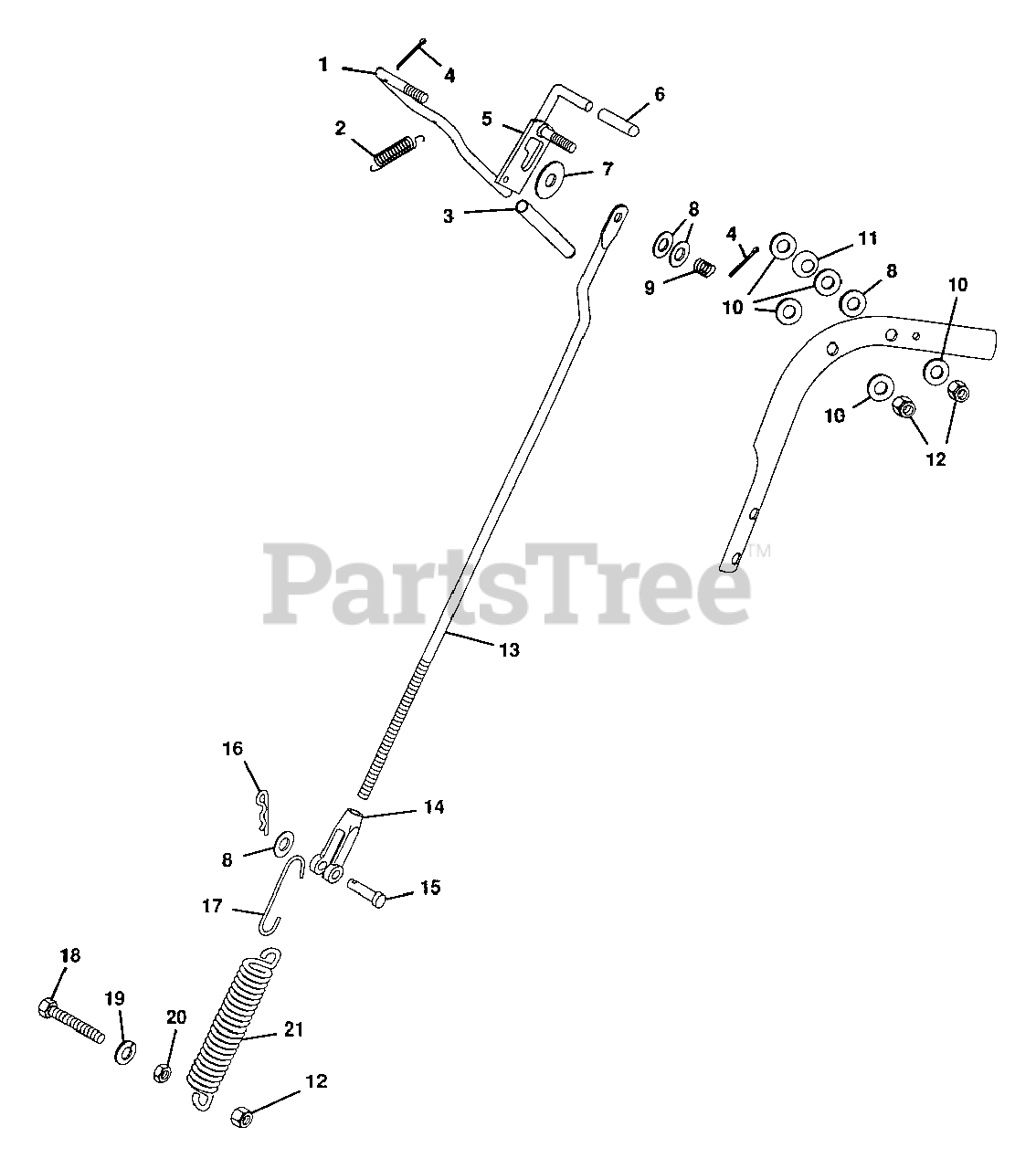

Steering Control Parts Diagram

  • Title

1

47345

Lever, Hard Clutch

$

$

Not available

2

43446

Spring, Extension

$

$

Not available

3

43197

Grip, Hand Clutch Lever

$

$

Not available

4

Gravely 121222

Pin, Cotter .09x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

5

51564

Weldment, Neutral Lock Lever

$

$

Not available

6

43192

Tip, Brake Lock Lever

$

$

Not available

7

Gravely 446477

Washer, Flat .438x1.375x.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

43193

Spring, Compression

$

$

Not available

10

20775

Washer, Nylon .375x75x.06

$

$

Not available

11

41623

Washer, Spring .375 I.D.

$

$

Not available

12

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

51236

Rod, Steering Control

$

$

Not available

14

18380

Clevis, 3/8-24 Adjustable

$

$

Not available

15

50994

Pin, Clevis

$

$

Not available

16

11860

Pin, Cotter Hair

$

$

Not available

17

51670

Hook, Spring

$

$

Not available

18

44609

Bolt, Hex 3/8-16x2.5

$

$

Not available

19

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

21

51234

Spring, Ext. LE-105J-7

$

$

Not available
