51780 - Toro Hedge Trimmer (SN: 010000001 - 019999999) (1991) GEAR BOX AND BLADE ASSEMBLY Parts Diagram

Hedge Trimmer

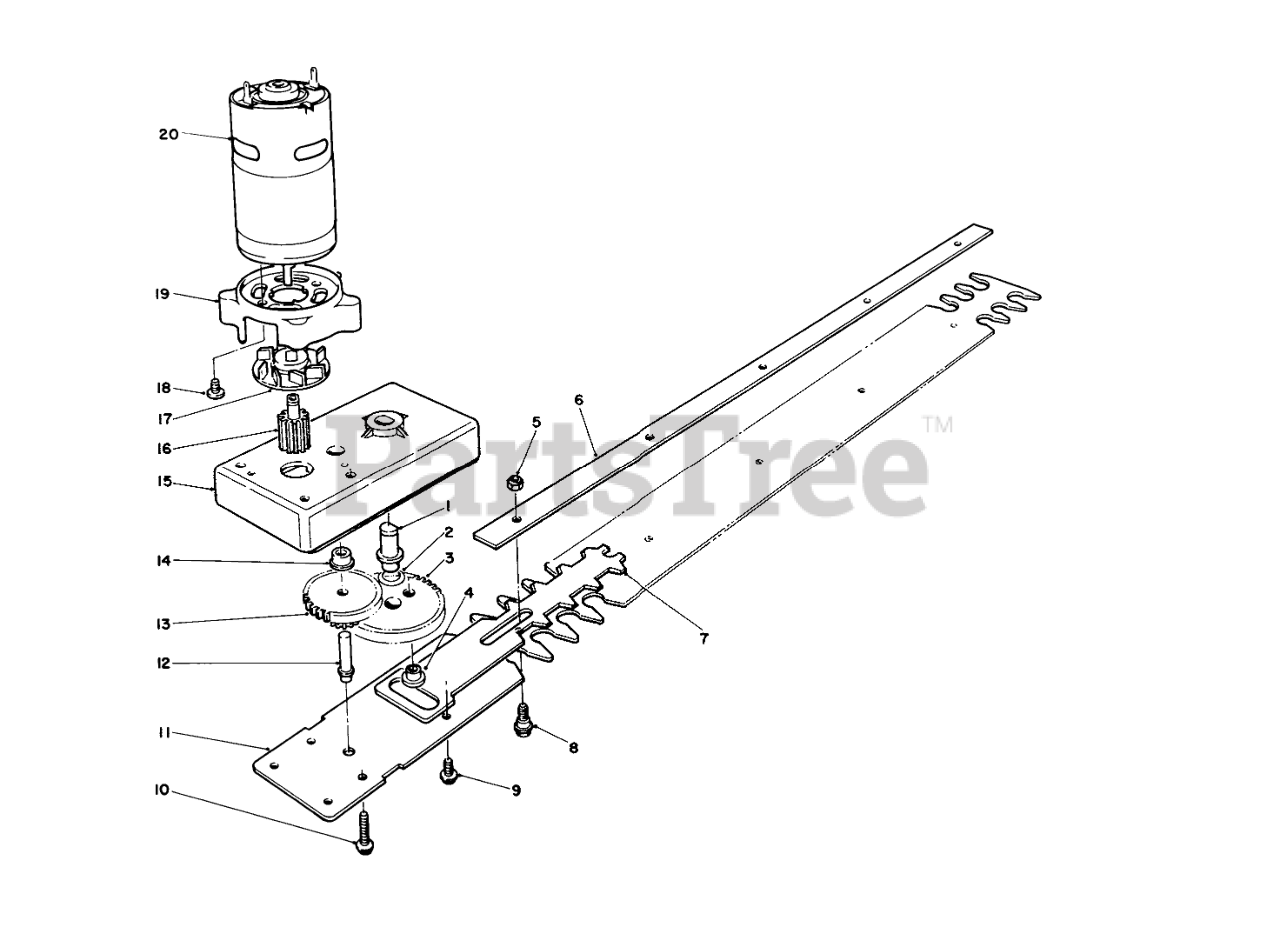

GEAR BOX AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Shaft-Driver

$

$

Not available

2

Toro 64-8200

WAVE-DRIVER

$

$

Not available

3

Toro 64-8020

GEAR-DRIVE

$

$

Not available

4

Toro 73-4580

GEAR BUSHING

$

$

Not available

5

Toro 3296-54

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

6

Toro 73-4560

RETAINER BLADE

$

$

Not available

7

Toro 73-4550

Blade-Cutting

$

$

Not available

8

Toro 73-4570

BLADE BOLT

$

$

Not available

9

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

10

Toro 32144-103

SCREW - #8 X 1-1/4

$

$

Not available

11

Blade-Bottom

$

$

Not available

12

Toro 64-7950

SHAFT-IDLER

$

$

Not available

13

Toro 64-7960

GEAR-IDLER

$

$

Not available

14

Bearing-Idler

$

$

Not available

15

Toro 73-4600

Housing-Gear Ass-y (Incl. Ref. #1 & 14)

$

$

Not available

16

Gear-Motor

$

$

Not available

17

Fan-Motor

$

$

Not available

18

Screw-Phillips Hd. Pan

$

$

Not available

19

Support-Motor

$

$

Not available

20

Toro 64-7900

Motor Assembly (Incl. Ref. #16-19)

$

$

Not available

Toro 73-4730

Gear Box & Blade Complete (Incl. Ref. #5-8, & 11)

$

$

Not available
