51780 - Lawn-Boy Hedge Trimmer (SN: 010000001 - 019999999) (1991) GEAR BOX AND BLADE ASSEMBLY Parts Diagram

Hedge Trimmer

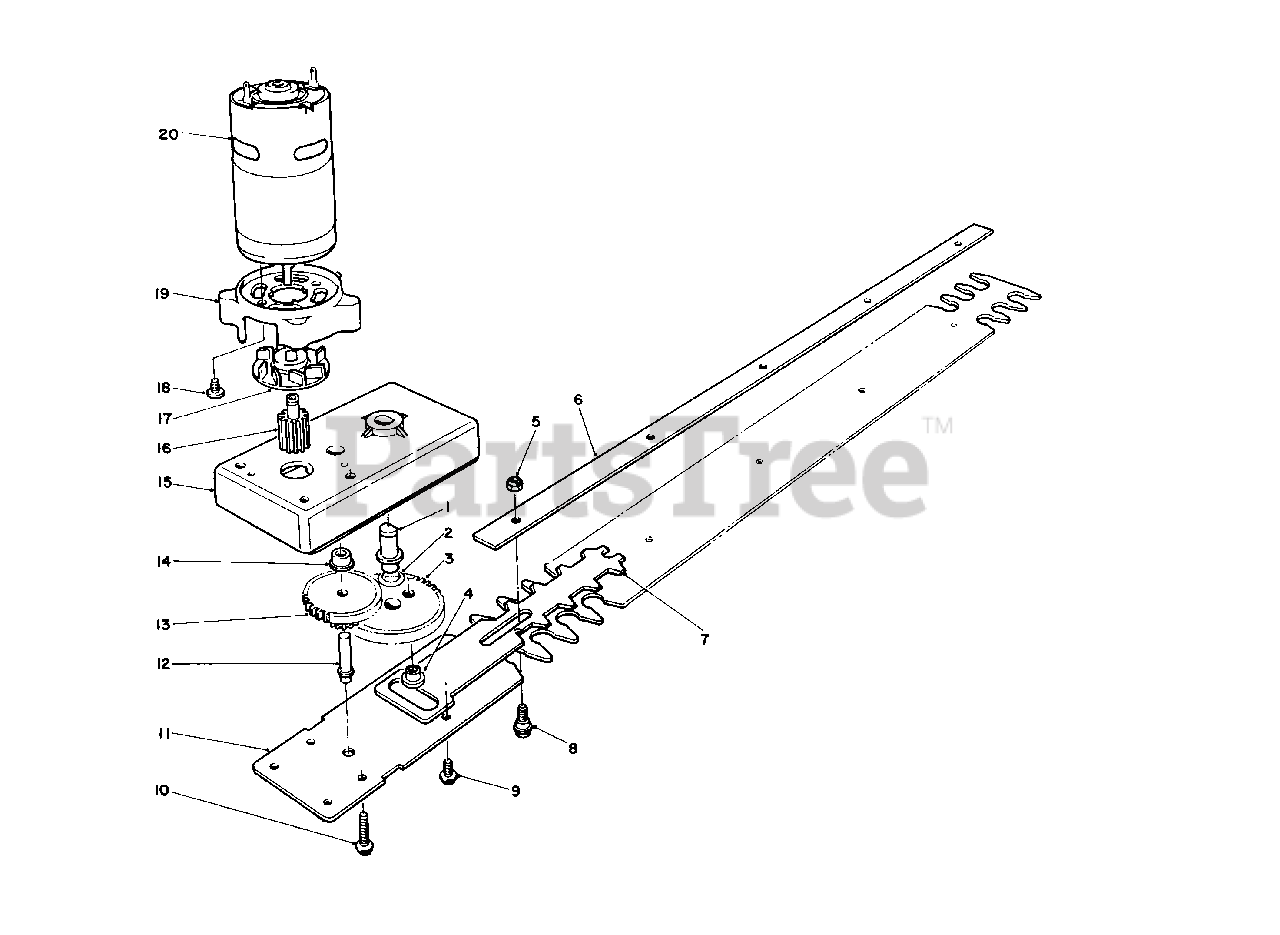

GEAR BOX AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Shaft-Driver

$

$

Not available

2

Lawn-Boy 64-8200

Washer-Wave

$

$

Not available

3

Lawn-Boy 64-8020

Gear-Drive

$

$

Not available

4

Lawn-Boy 73-4580

Bushing-Gear Drive

$

$

Not available

5

Lawn-Boy 3296-54

Nut-Lock

$5.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 73-4560

Retainer-Blade

$

$

Not available

7

Lawn-Boy 73-4550

Blade-Cutting

$

$

Not available

8

Lawn-Boy 73-4570

Bolt-Blade

$

$

Not available

9

Lawn-Boy 32144-87

Screw-Hex Washer Hd.

$1.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 32144-103

Screw-Hex Washer Hd.

$

$

Not available

11

Blade-Bottom

$

$

Not available

12

Lawn-Boy 64-7950

Shaft-Idler

$

$

Not available

13

Lawn-Boy 64-7960

Gear-Idler

$

$

Not available

14

Bearing-Idler

$

$

Not available

15

Lawn-Boy 73-4600

Housing-Gear Ass'y (Incl. Ref. #1 & 14)

$

$

Not available

16

Gear-Motor

$

$

Not available

17

Fan-Motor

$

$

Not available

18

Screw-Phillips Hd. Pan

$

$

Not available

19

Support-Motor

$

$

Not available

20

Lawn-Boy 64-7900

Motor Assembly (Incl. Ref. #16-19)

$

$

Not available

Lawn-Boy 73-4730

Gear Box & Blade Complete (Incl. Ref. #5-8, & 11)

Note: Not Illustrated

$

$

Not available
