51770 - Lawn-Boy 12 Volt String Trimmer, Electric (SN: 010000001 - 019999999) (1991) BATTERY PACK ASSEMBLY Parts Diagram

12 Volt String Trimmer, Electric

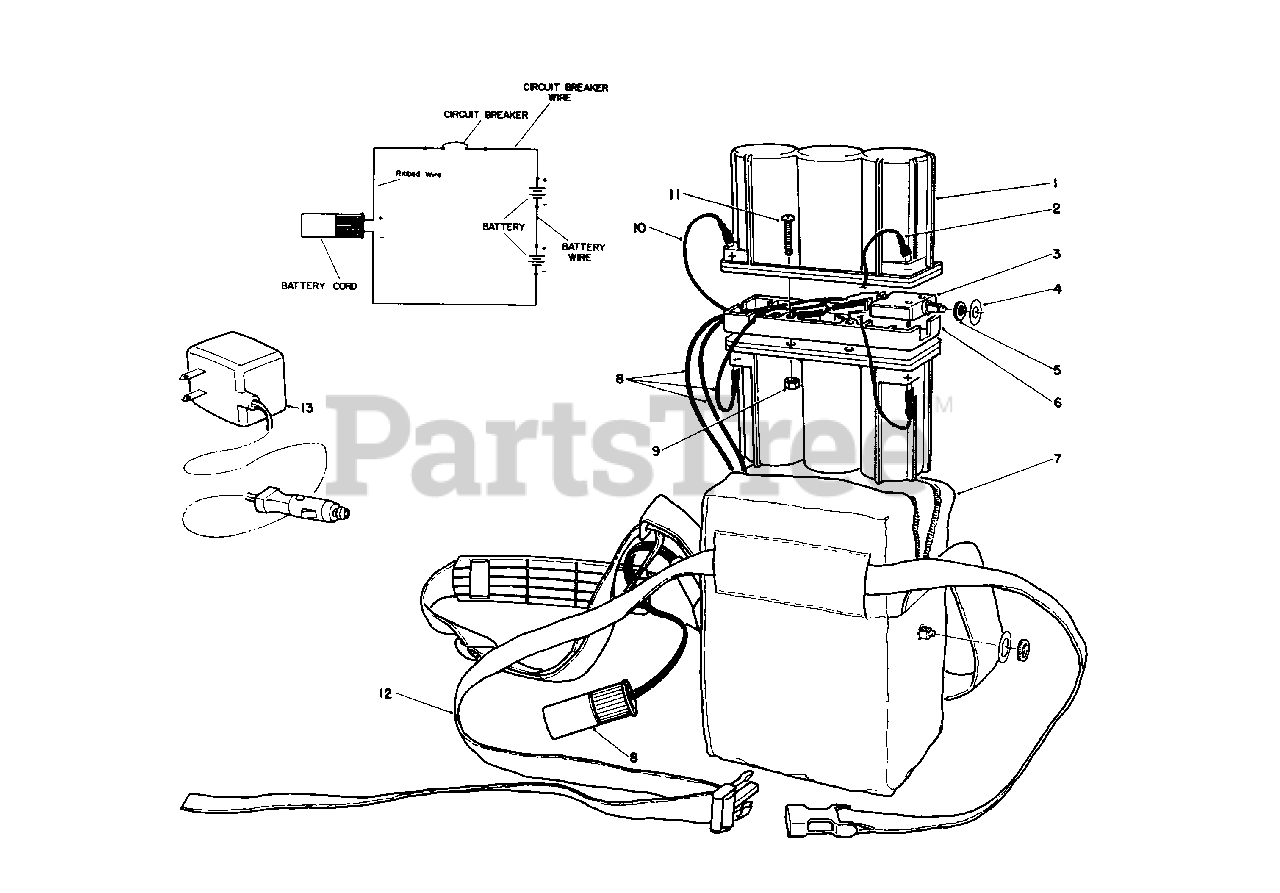

BATTERY PACK ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 73-3190

Battery-6 Volt

$

$

Not available

2

Lawn-Boy 73-3260

Wire-Battery

$

$

Not available

3

Lawn-Boy 64-5570

Circuit Breaker

$

$

Not available

4

Lawn-Boy 73-3240

Plate-Breaker, Circuit

$

$

Not available

5

Lawn-Boy 73-3230

Nut-Knurled

$

$

Not available

6

Lawn-Boy 73-3220

Spacer-Battery

$

$

Not available

7

Lawn-Boy 64-8330

Pack-Soft

$

$

Not available

8

Lawn-Boy 73-3310

Cord-Battery

$

$

Not available

$1.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 73-3270

Wire-Breaker, Circuit

$

$

Not available

11

Lawn-Boy 3250-23

Screw-Phillips, Pan Hd.

$3.49

$

Usually ships in 3-6 days

0

$

$

Not available

13

Lawn-Boy 64-8400

Charger-12 Volt

$

$

Not available
