51750 - Toro Power Hoe Tiller (SN: 001000001 - 001999999) (1981) MOTOR AND GEAR HOUSING ASSEMBLY Parts Diagram

Power Hoe Tiller

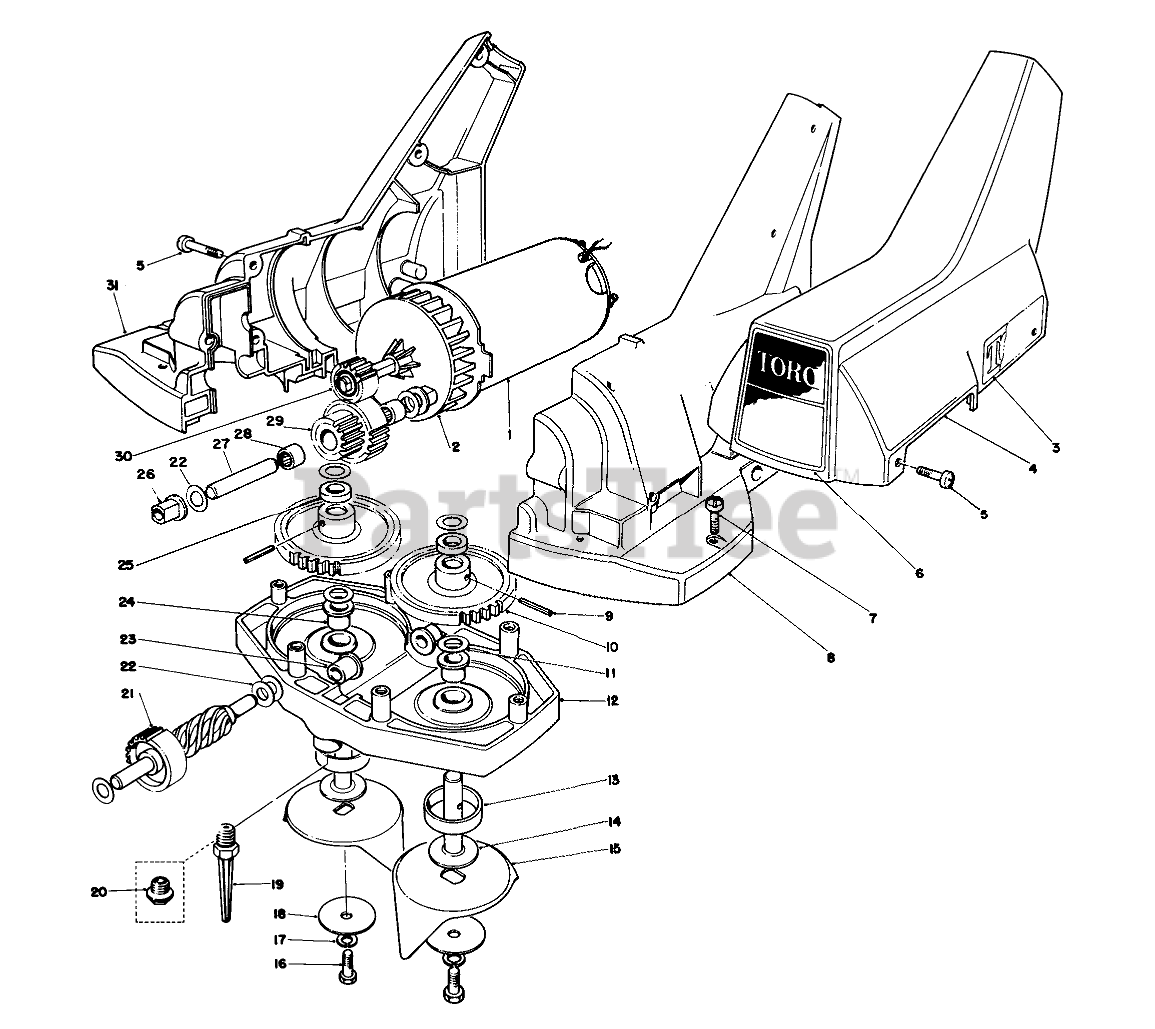

MOTOR AND GEAR HOUSING ASSEMBLY Parts Diagram

  • Title

2

Toro 34-9140

Fan

$

$

Not available

3

Toro 33-6780

DECAL - TORO

$

$

Not available

4

Toro 33-9550

Cover

$

$

Not available

6

Toro 34-3220

Decal

$

$

Not available

7

Toro 32144-39

#10-32 PHILLIPS TF SC

$0.99

$

Usually ships in 3-6 days

0

8

Toro 34-2230

Upper Case L.H.(Incl. Ref. #24)

$

$

Not available

9

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

10

Toro 34-8920

HELICAL GEAR

$77.99

$

Usually ships in 3-6 days

0

11

Toro 252-94

THRUST RACE

$9.49

$

In Stock, only 2 left!

0

12

Toro 34-2220

Lower Case (Incl. Ref. #24)

$

$

Not available

13

Toro 33-9900

SPACER

$

$

Not available

14

Toro 34-8840

Tine Shaft

$

$

Not available

15

Toro 34-8860

Tine Cup

$

$

Not available

16

Toro 3235-18

1/4-20 X 5/8 CAPSCREW

$10.99

$

Usually ships in 3-6 days

0

17

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

19

Toro 34-3980

STABILIZER SPIKE

$

$

Not available

20

Toro 34-2860

Plug

$

$

Not available

22

Toro 252-98

THRUST WASHER

$

$

Not available

23

Toro 33-9630

Bushing

$

$

Not available

24

Toro 256-116

BUSHING-FLANGE

$4.49

$

In Stock, Qty 9

0

25

Toro 34-8930

COLLAR

$

$

Not available

26

Toro 34-8910

Sleeve

$

$

Not available

27

Toro 34-8970

Idler Shaft

$

$

Not available

28

Toro 252-101

Bearing

$

$

Not available

29

Toro 34-8950

CLUSTER GEAR

$

$

Not available

31

Toro 34-2240

Upper Case R.H. (Incl. Ref. #24)

$

$

Not available
