51750 - Toro Power Hoe Tiller (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

Power Hoe Tiller

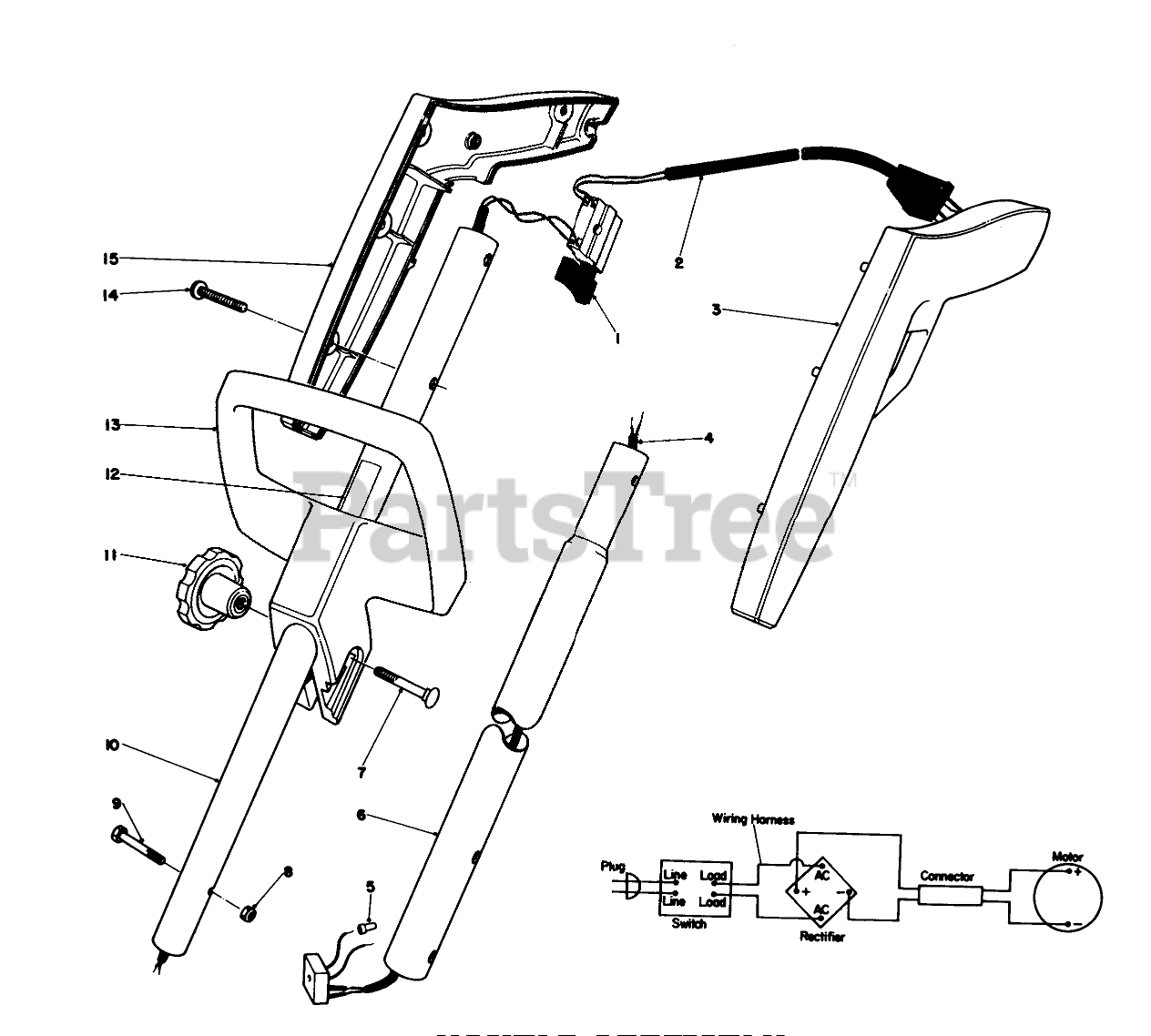

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 29-7660

SWITCH SINGLE SPEED

$51.99

$

Usually ships in 3-6 days

0

2

Toro 33-8570

Power Cord
(Superseded to 46-8851)

$

$

Not available

3

Toro 33-8810

Grip L.H.

$

$

Not available

4

Toro 33-9560

Wiring Harness w/Rectifier

$

$

Not available

5

Toro 218496

Wire Connector

$

$

Currently unavailable

6

Toro 33-8870

Tube-Lower

$

$

Not available

7

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

8

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

9

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

10

Toro 33-8880

Tube-Upper

$

$

Not available

11

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

12

Toro 34-1670

Decal-Caution

$

$

Not available

13

Toro 33-8890

ADJUSTABLE HANDLE

$

$

Not available

14

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

15

Toro 33-8820

R.H. GRIP

$

$

Not available
