51750 - Lawn-Boy Power Hoe Tiller (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY Parts Diagram

Power Hoe Tiller

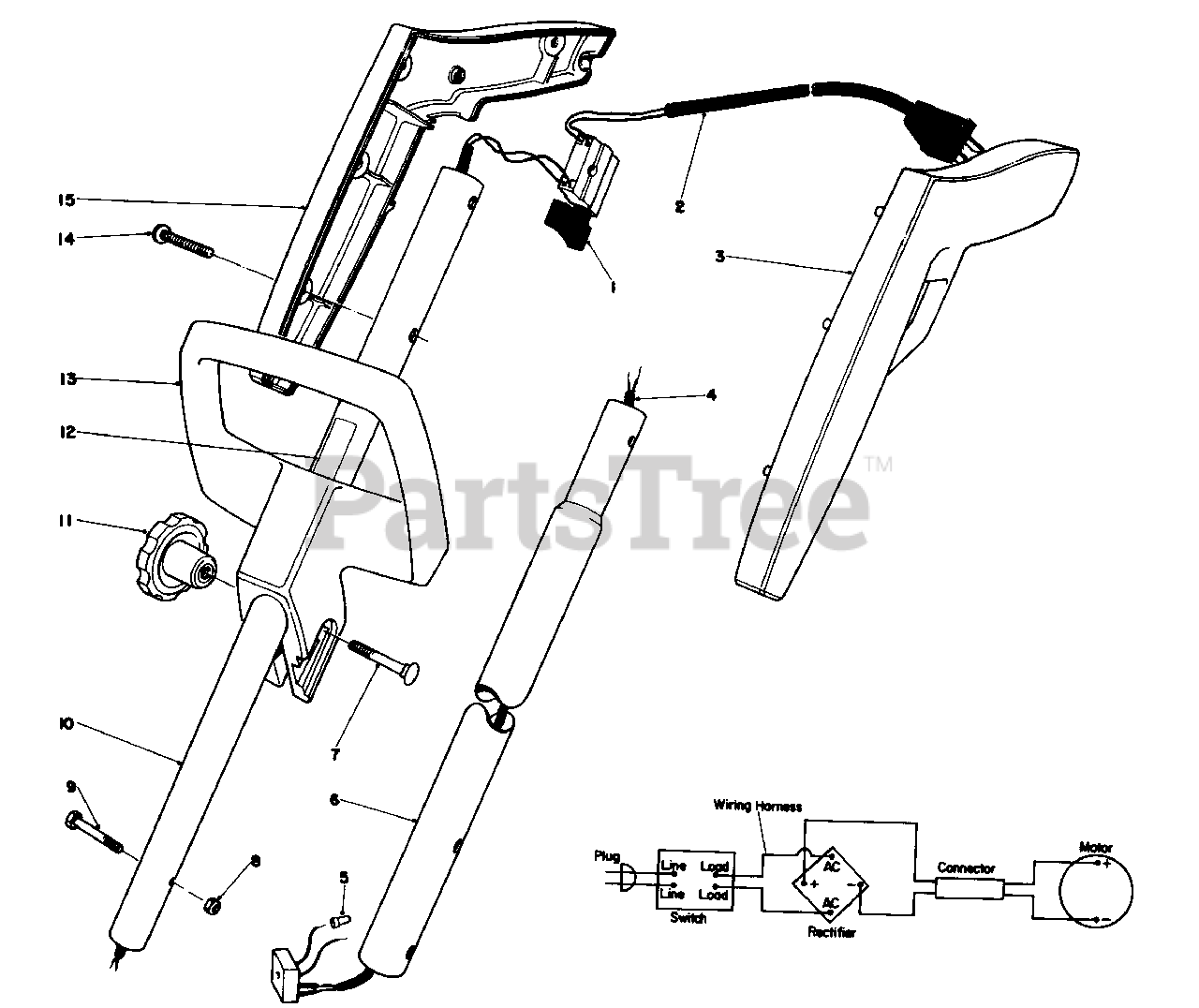

HANDLE ASSEMBLY Parts Diagram

  • Title
1

$51.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 33-8570

Power Cord
(Superseded to 46-8851)

$

$

Not available

3

Lawn-Boy 33-8810

Hand Grip L.H.

$

$

Not available

4

Lawn-Boy 33-9560

Wiring Harness w/Rectifier

$

$

Not available

5

Lawn-Boy 218496

Wire Connectors

$

$

Currently unavailable

6

Lawn-Boy 33-8870

Tube-Lower

$

$

Not available

7

Lawn-Boy 33-5790

Carriage Bolt

$5.49

$

Usually ships in 3-6 days

0

8

$1.49

$

In Stock, Qty 6

0

9

Lawn-Boy 33-8950

Machine Screw

$

$

Not available

10

Lawn-Boy 33-8880

Tube-Upper

$

$

Not available

$17.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 34-1670

Decal-Caution

$

$

Not available

13

Lawn-Boy 33-8890

Adjustable Handle

$

$

Not available

14

Lawn-Boy 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 33-8820

Hand Grip R.H.

$

$

Not available

Lawn-Boy 34-9120

Alignment Pin

Note: Not Illustrated

$

$

Not available
