51730 - Toro Hedge Trimmer (SN: 000000001 - 000999999) (1990) GEAR BOX AND BLADE ASSEMBLY Parts Diagram

Hedge Trimmer

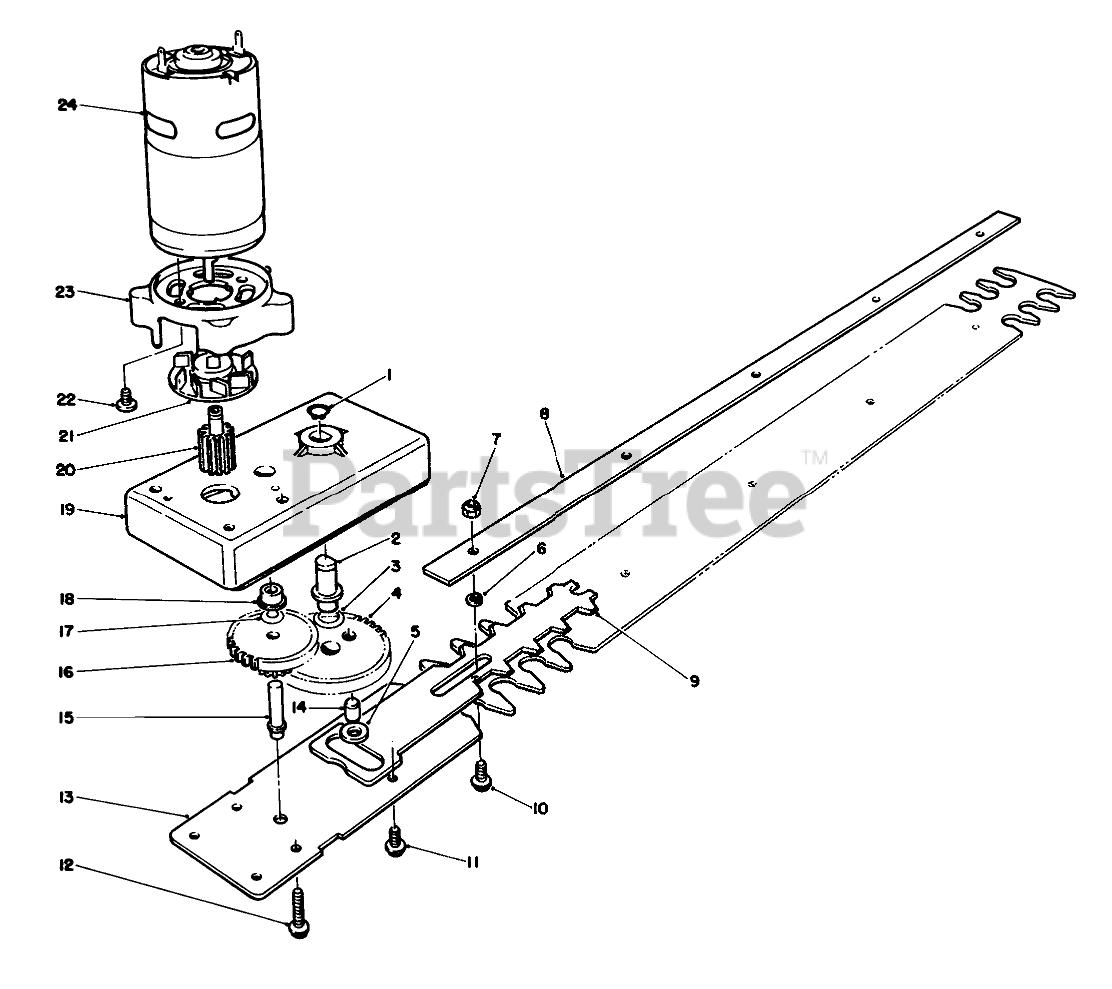

GEAR BOX AND BLADE ASSEMBLY Parts Diagram

  • Title

2

Shaft-Driver

$

$

Not available

3

Toro 64-8200

WAVE-DRIVER

$

$

Not available

4

Toro 64-8010

Gear-Drive (Incl. Ref. #14)

$

$

Not available

5

Toro 64-7880

BUSHING-CAM

$

$

Not available

6

Toro 64-8080

BLADE-BUSHING

$

$

Not available

7

Toro 3296-54

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

8

Toro 64-8070

BLADE-RETAINER

$

$

Not available

9

Toro 64-8050

BLADE-CUTTING

$

$

Not available

10

Toro 73-2610

HEX SCREW 8-32X.5

$

$

Not available

11

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

12

Toro 32144-103

SCREW - #8 X 1-1/4

$

$

Not available

13

Blade-Bottom

$

$

Not available

14

Toro 64-8030

Pin-Drive

$

$

Currently unavailable

15

Toro 64-7950

SHAFT-IDLER

$

$

Not available

16

Toro 64-7960

GEAR-IDLER

$

$

Not available

17

Toro 64-8000

WAVE-IDLER

$

$

Not available

18

Bearing-Idler

$

$

Not available

19

Toro 73-1780

Housing-Gear Assembly (Incl Ref. 2 & 18)

$

$

Not available

20

Gear-Motor

$

$

Not available

21

Fan-Motor

$

$

Not available

22

Screw-Phil. Pan Hd.

$

$

Not available

23

Support-Motor

$

$

Not available

24

Toro 64-7900

Motor Assembly (Incl. Ref. #20-23)

$

$

Not available

Toro 73-4730

Gear Box & Blade Complete (Incl. Ref. #1-24)

$

$

Not available

Toro 64-8040

Blade Assembly (Incl. Ref. #6-10 & 13)

$

$

Not available
