51720 - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1990) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

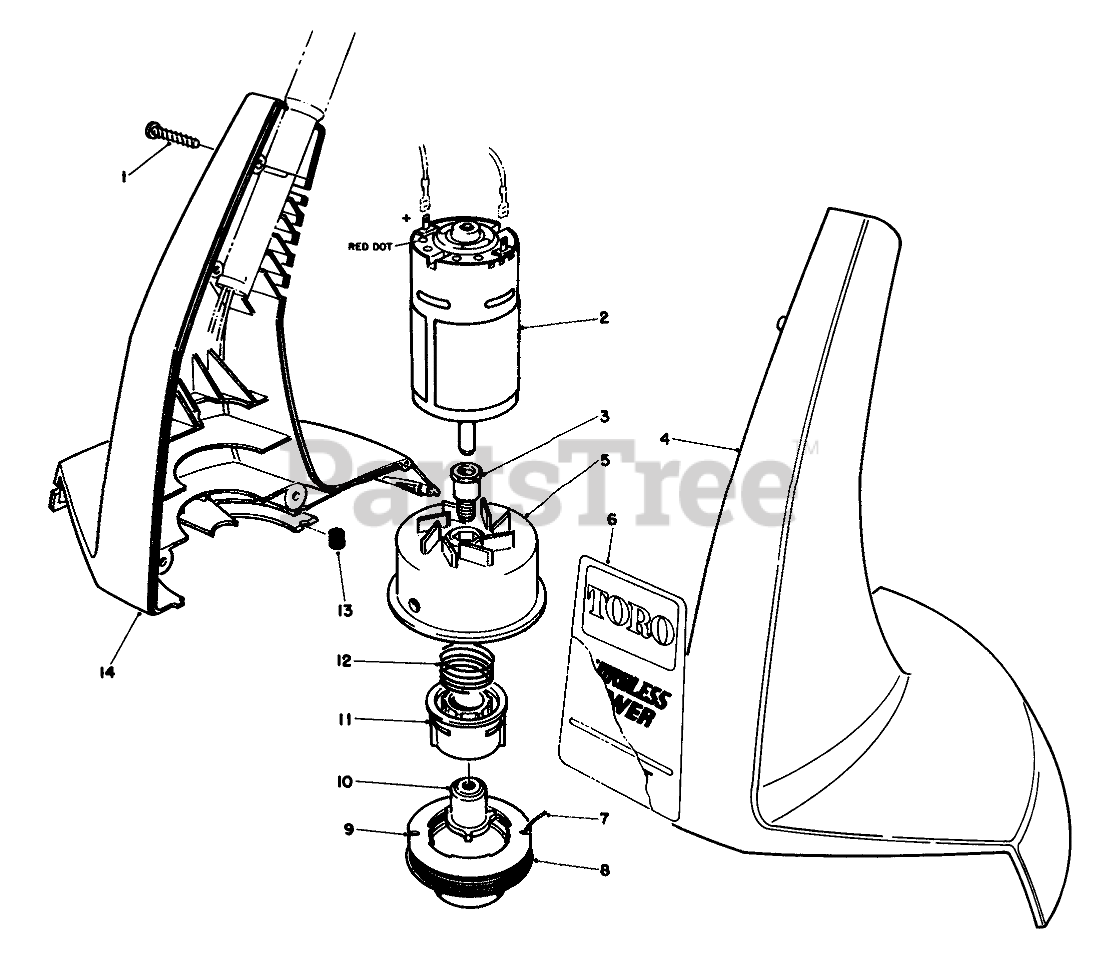

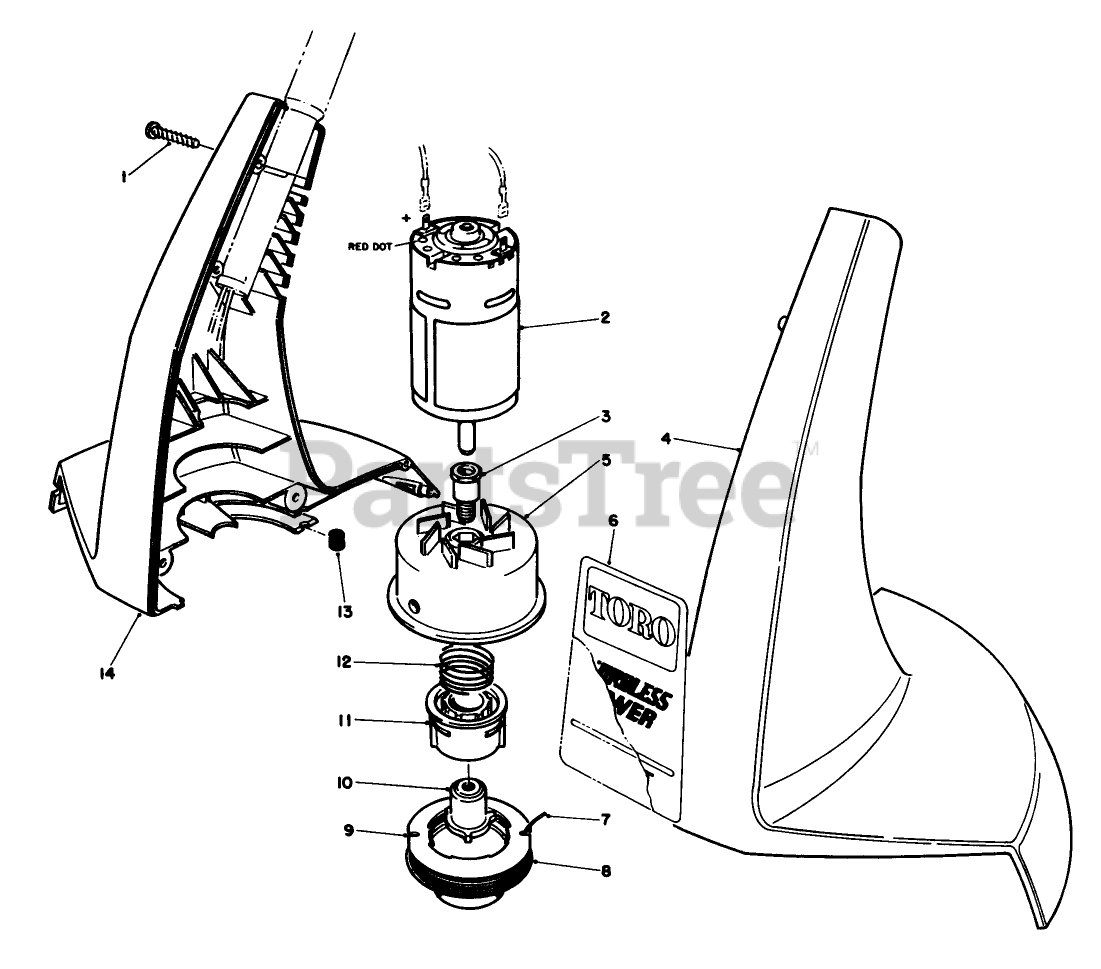

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

2

Toro 64-7700

Motor Assembly (Incl. Ref. #3)

$

$

Not available

3

Extension-Shaft

$

$

Not available

4

Toro 64-7690

LH HOUSING, 12V TRIMMER

$

$

Not available

5

Toro 64-7760

Drum-Assembly
(Superseded to 73-5281)

$

$

Not available

6

Toro 64-7660

DECAL-TRIMMER

$

$

Not available

7

Line-Cutting .050

$

$

Not available

8

Toro 34-9830

Pre-wound Spool (Incl. Ref. #7 & 9)
(Superseded to 88075)

$19.99

$

In Stock, only 3 left!

0

9

Toro 34-9870

CAP-SPOOL

$16.99

$

Usually ships in 3-6 days

0

10

Toro 33-9720

DRIVER

$

$

Not available

11

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

12

Toro 34-9860

Spring
(Superseded to 29-8230)

$10.99

$

In Stock, only 2 left!

0

13

Toro 33-8710

GROMMET

$

$

Not available

14

Toro 64-7670

RIGHT HAND HOUSING ASM

$

$

Not available
