51720 - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

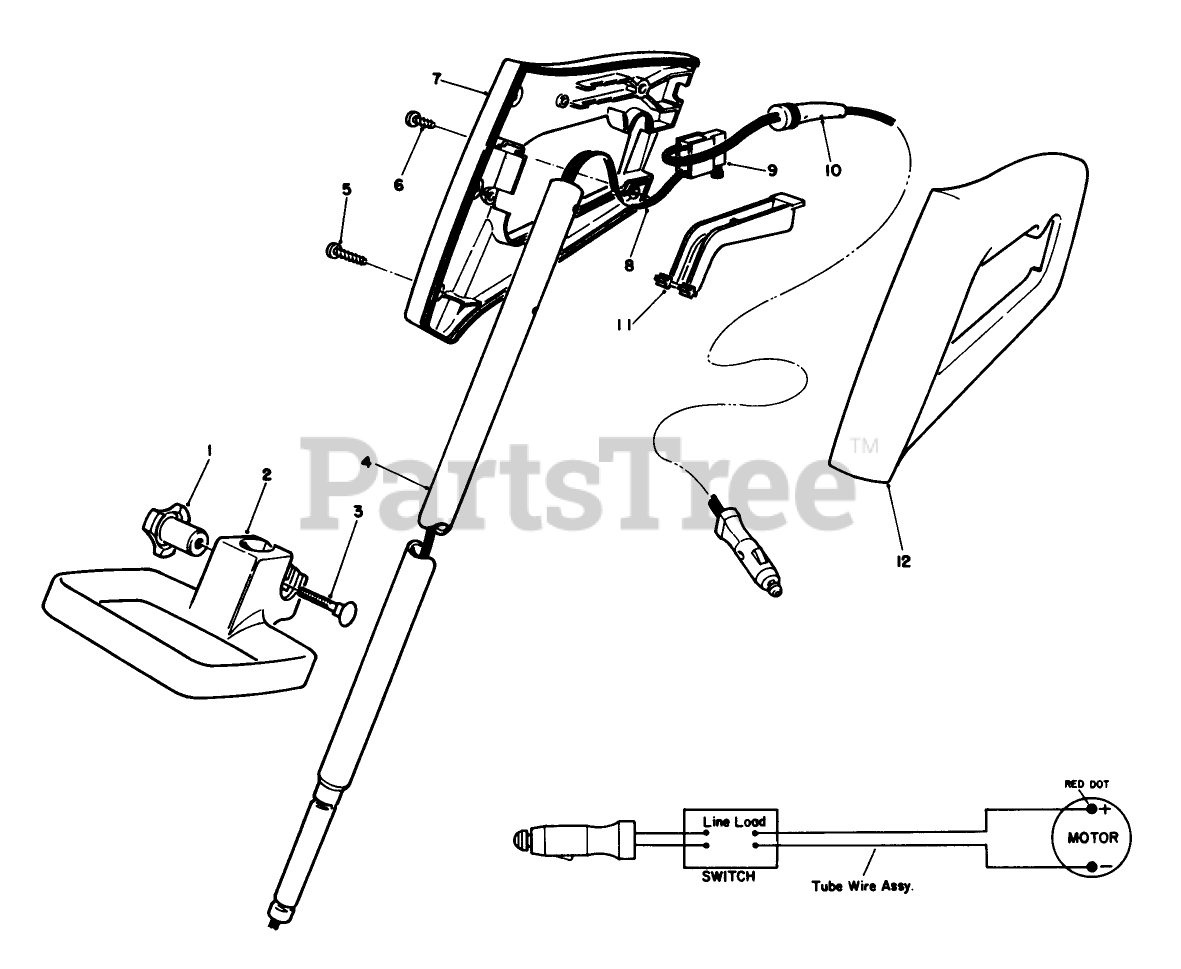

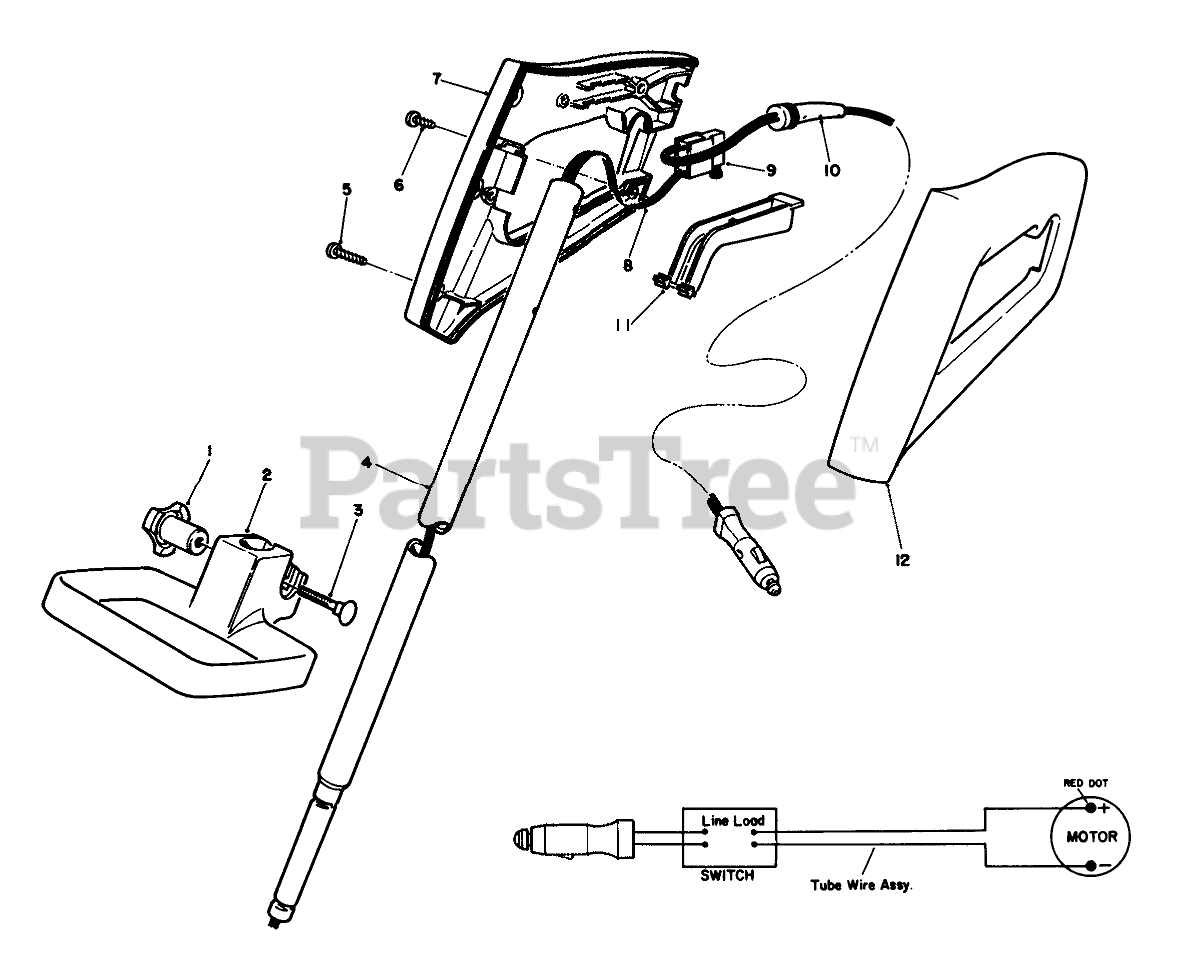

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 62-1920

Knob
(Superseded to 73-4740)

$9.99

$

Usually ships in 3-6 days

0

2

Toro 61-8902

Handle-Adjust

$

$

Not available

3

Toro 33-5790

BOLT-CARR

$5.49

$

In Stock, only 1 left!

0

4

Toro 64-7650

TUBE-SINGLE

$

$

Not available

5

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

6

Toro 32104-118

SCREW-PPH

$

$

Not available

7

Toro 73-1111

HANDLE GRIP, RH

$

$

Not available

8

Toro 64-7630

WIRE ASSEMBLY-TUBE

$

$

Not available

9

Toro 64-7640

SWITCH

$

$

Not available

10

$67.99

$

Usually ships in 3-6 days

0

11

Toro 64-4541

TRIMMER-SWITCH BAR

$

$

Not available

12

Toro 73-1121

HANDLE GRIP, LH

$

$

Not available
