51700 - Toro 21cc String Trimmer (SN: 009000001 - 009999999) (1979) ENGINE ASSEMBLY Parts Diagram

21cc String Trimmer

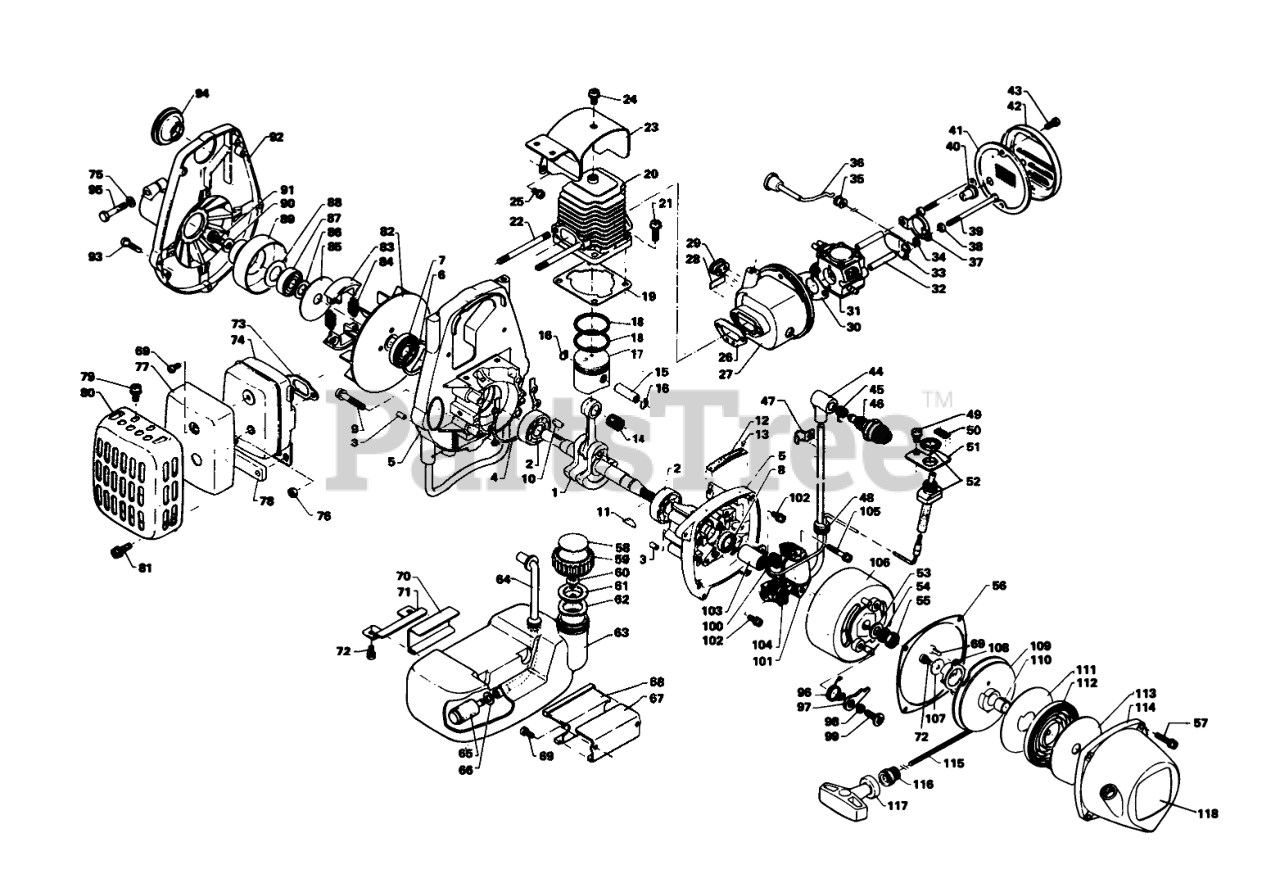

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 41-0190

Crankshaft Assembly

$

$

Not available

2

Toro 41-5670

Bearing

$

$

Not available

3

Toro 41-0330

Knockpin

$

$

Not available

4

Toro 41-0350

Gasket, Crankcase

$

$

Not available

5

Toro 41-6920

Crankcase Set

$

$

Not available

6

Toro 41-5580

Circlip

$

$

Not available

7

Toro 41-0280

Oilseal

$

$

Not available

8

Toro 41-0290

Oilseal

$

$

Not available

9

Toro 41-5250

Screw

$

$

Not available

10

Toro 41-4490

Woodruff Key

$

$

Not available

11

Toro 41-6160

Woodruff Key

$

$

Not available

12

Model Plate

$

$

Not available

13

Toro 34-8260

Rivet

$

$

Currently unavailable

14

Toro 41-2730

Needle Bearing

$

$

Not available

15

Toro 41-6910

Piston Pin

$

$

Not available

16

Toro 41-0160

Circlip, Piston Pin

$

$

Not available

17

Toro 41-0040

Piston

$

$

Not available

18

Toro 41-0070

PISTON RING

$

$

Not available

19

Toro 41-0490

Gasket, Cylinder Base

$

$

Not available

20

Toro 41-6930

Cylinder

$

$

Not available

21

Toro 41-7600

Screw

$

$

Not available

22

Toro 41-0540

Stud Bolt

$

$

Not available

23

Toro 41-6960

Cylinder Cover

$

$

Not available

24

Toro 41-7590

Screw

$

$

Not available

25

Toro 41-7610

Screw

$

$

Not available

26

Toro 41-7020

GASKET

$

$

Not available

27

Toro 41-7040

Carburetor Case

$

$

Not available

28

Toro 41-7540

Decal, Caution

$

$

Not available

29

Toro 41-6990

Grommet

$

$

Not available

30

Toro 41-7030

Gasket

$

$

Not available

31

Toro 41-6970

Carburetor Assembly

$

$

Not available

32

Toro 41-1300

Carburetor Spacer

$

$

Not available

33

Toro 41-7440

Choke Shutter

$

$

Not available

34

Toro 41-3620

Spacer

$

$

Not available

35

Toro 41-7450

Rubber Grommet, Choke Rod

$

$

Not available

36

Toro 41-7430

Choke Rod

$

$

Not available

37

Toro 41-7000

Plate

$

$

Not available

38

Toro 41-1340

Spacer, Carburetor

$

$

Not available

39

Toro 41-1320

Bolt

$

$

Not available

40

Toro 41-7010

Grommet

$

$

Not available

41

Toro 41-7050

Air Filter

$

$

Not available

42

Toro 41-7060

Cover, Air Cleaner

$

$

Not available

43

Toro 41-5020

Screw

$

$

Not available

44

Toro 41-2520

Cap-Spark Plug

$

$

Not available

45

Toro 41-2510

Coil Spring-Plug Cap

$

$

Not available

46

Toro 41-2500

Spark Plug
(Superseded to 45-0320)

$3.49

$

Usually ships in 3-6 days

0

47

Toro 41-7190

Clamp

$

$

Not available

48

Toro 41-2410

Grommet

$

$

Not available

49

Toro 41-7630

Screw

$

$

Not available

50

Toro 414750

Decal, Stop

$

$

Currently unavailable

51

Toro 41-7220

Bracket, Switch

$

$

Not available

52

Toro 41-7200

Switch

$

$

Not available

53

Toro 414170

Washer

$

$

Currently unavailable

54

Toro 41-5510

Spring Washer

$

$

Not available

55

Toro 41-5390

NUT

$

$

Not available

56

Toro 41-0440

Gasket, Starter Case

$

$

Not available

57

Toro 41-5170

SCREW

$

$

Not available

58

Toro 33-6180

Decal, Fuel

$

$

Not available

59

Toro 41-1630

Cap-Fuel Tank
(Superseded to 43-9940)

$

$

Not available

60

Toro 41-1680

Check Valve
(Superseded to 54-5610)

$18.99

$

Usually ships in 3-6 days

0

61

Toro 41-8000

Holder, Check Valve
(Superseded to 41-1590)

$

$

Not available

62

Toro 41-8020

Gasket, Fuel Tank Cap

$

$

Not available

63

Toro 41-7070

Fuel Tank

$

$

Not available

64

Toro 41-7120

Fuel Pipe

$

$

Not available

65

Toro 41-1660

Fuel Strainer
(Superseded to 43-9660)

$

$

Not available

66

Toro 41-5450

Washer
(Superseded to 3256-60)

$1.99

$

Usually ships in 3-6 days

0

67

Toro 41-7090

Bracket, Fuel Tank

$

$

Not available

68

Toro 41-7110

Cushion

$

$

Not available

69

Toro 41-5010

Screw

$

$

Not available

70

Toro 41-7100

Cushion

$

$

Not available

71

Toro 41-7080

Bracket, Fuel Tank

$

$

Not available

72

Toro 41-7610

Screw

$

$

Not available

73

Toro 41-1920

Gasket, Muffler

$

$

Not available

74

Toro 41-7130

Muffler

$

$

Not available

75

Toro 41-5440

WASHER

$

$

Not available

76

Toro 41-4250

Nut

$

$

Not available

77

Toro 41-7150

Insulator

$

$

Not available

78

Toro 41-7160

Spacer

$

$

Not available

79

Toro 41-5190

SCREW

$

$

Not available

80

Toro 41-7140

Muffler Cover

$

$

Not available

81

Toro 41-7640

Screw

$

$

Not available

82

Toro 41-6940

Fan

$

$

Not available

83

Toro 41-2710

CLUTCH SHOE

$

$

Not available

84

Toro 41-2790

CLUTCH SPRING

$

$

Not available

85

Toro 41-2800

Side Plate

$

$

Not available

86

Toro 41-7230

Spacer

$

$

Not available

87

Toro 41-5640

Ball Bearing

$

$

Not available

88

Toro 41-2810

Spacer

$

$

Not available

89

Toro 41-2720

Clutch Drum

$

$

Not available

90

Toro 41-2740

Washer

$

$

Not available

91

Toro 41-4970

Bolt

$

$

Not available

92

Toro 41-6950

Fan Cover

$

$

Not available

93

Toro 41-7570

Screw

$

$

Not available

94

Toro 41-2540

Boot, Plug Cap

$

$

Not available

95

Toro 41-4810

Bolt

$

$

Not available

96

Toro 41-7300

Spring, Ratchet

$

$

Not available

97

Toro 41-2980

Ratchet

$

$

Not available

98

Toro 41-3240

RATCHET SPACER

$

$

Not available

99

Toro 41-2960

Screw

$

$

Not available

100

Toro 41-2480

Oiler

$

$

Not available

101

Toro 41-2450

IGNITION COIL

$

$

Not available

102

Toro 41-5160

SCREW

$

$

Not available

103

Toro 41-7170

CONDENSER

$

$

Not available

104

Toro 41-2440

CONTACT BREAKER SET

$

$

Not available

105

Toro 41-7620

Screw

$

$

Not available

106

Toro 41-7180

Flywheel

$

$

Not available

107

Toro 41-2920

Washer

$

$

Not available

108

Toro 41-7320

Pawl Catcher

$

$

Not available

109

Toro 41-7270

Recoil Drum

$

$

Not available

110

Toro 41-7280

Bushing, Recoil Drum

$

$

Not available

111

Toro 41-7310

Side Plate, Inner

$

$

Not available

112

Toro 41-3000

REWIND SPRING

$

$

Not available

113

Toro 41-7290

Side Plate, Outer

$

$

Not available

114

Toro 41-7260

Starter Case

$

$

Not available

115

Toro 41-3040

Starter Rope
(Superseded to 613773)

$30.99

$

Usually ships in 3-6 days

0

116

Toro 41-3060

Rope Guide
(Superseded to 46-3870)

$

$

Not available

117

Toro 41-3080

Starter Handle
(Superseded to 34-7930)

$

$

Not available

118

Toro 33-6450

Decal, 2100

$

$

Currently unavailable

Toro 41-7980

Cap Assembly, Fuel (Incl. Ref. #59-62)
(Superseded to 43-9940)

Note: Not illustrated

$

$

Not available

Toro 41-7240

Recoil Starter Ass-y. (Incl. Ref. #69, 72, 107-117)

Note: Not illustrated

$

$

Not available
