517 (590-517-100) - Cub Cadet Caster Wheel Kit att2 Caster Wheel Kit 2008 & After Parts Diagram

Caster Wheel Kit

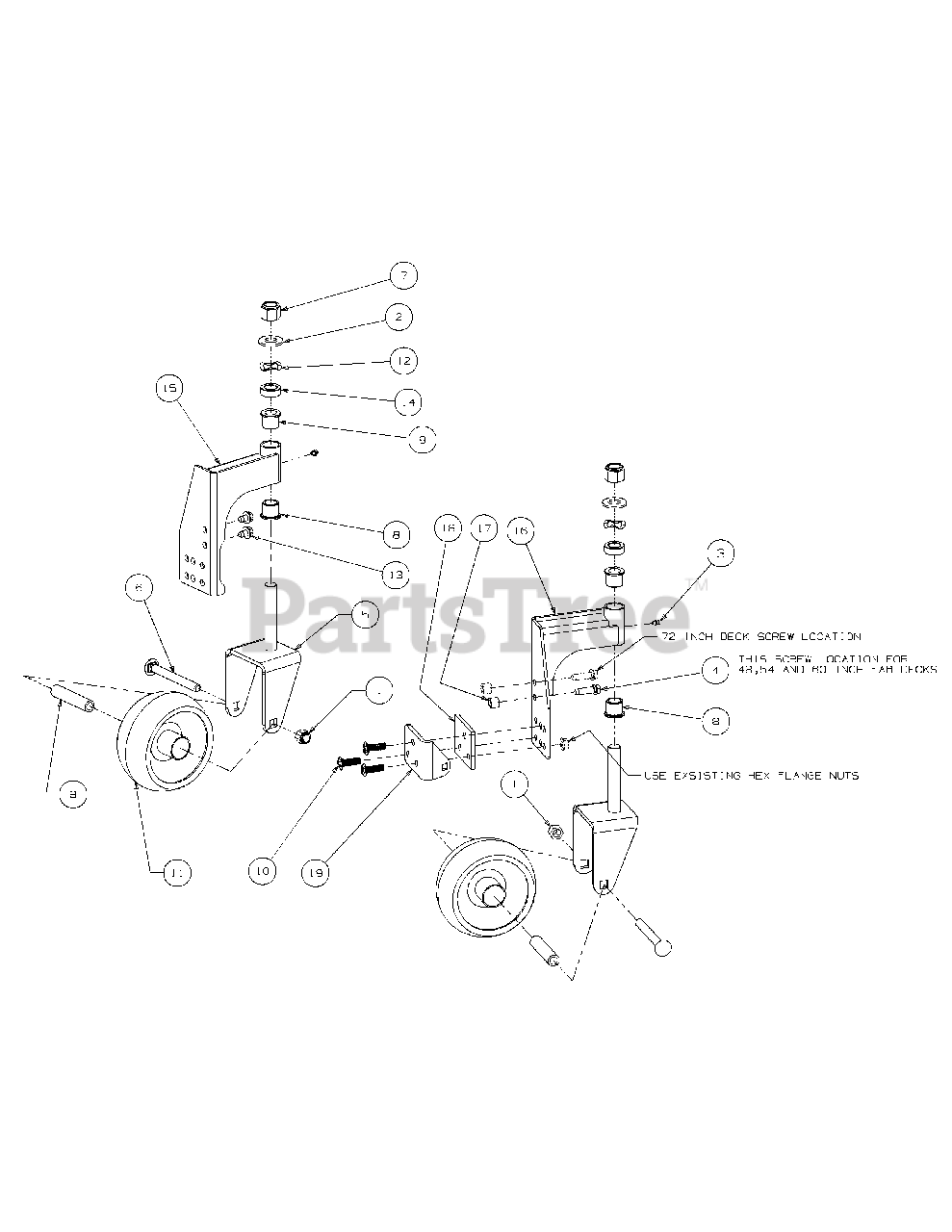

Caster Wheel Kit 2008 & After Parts Diagram

  • Title

1

Cub Cadet 712-3083

Nylock Nut:1/2-13

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00023796

Flat Washer, .750 x 1.50 x .120

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

4

Cub Cadet 01000812

Self Tapping Screw, 3/8-16 x 1.250
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

5

Cub Cadet 603-0612

Yoke assembly, Caster WHeel

Variations

Cub Cadet 603-0612-0498

USE 603-0612-0716 YOKE ASM-CA - OLD CUB YELLOW (0498)

$77.99

$

In Stock, only 2 left!

0

Cub Cadet 603-0612-0637

Caster Wheel Yoke Assembly - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0612-0716

YOKE ASM-CASTER WH - CUB YELLOW-99 (0716)

$77.99

$

In Stock, only 2 left!

0

Cub Cadet 603-0612-4021

YOKE ASM-CASTER WH - CUB YELLOW 2 (4021)

$77.99

$

In Stock, only 2 left!

0

$62.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01001775

Carriage Screw, 1/2-13 x 4.50
(Superseded to 710-1638)

$10.99

$

In Stock, Qty 10

0

7

Cub Cadet 01001777

Nut, 3/4-10, Hex Lock

$

$

Not available

8

Cub Cadet 741-0339

Flange Bearing, .754 ID x 1.00 OD x .925
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

9

Cub Cadet 01001779

Axle, Caster Wheel
(Superseded to 750-3222)

$27.99

$

In Stock, Qty 6

0

10

Cub Cadet 01002010

Carriage Screw, 3/8-16 x 1.25
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet 01002183

Wheel Assembly, 6.25 x 3.00-4
(Superseded to 734-3195A)

$125.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01002779

Wave Washer, 1.38 OD x .88 ID x .02
(Superseded to 936-0526)

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet 01004304

Self Tapping Screw, 3/8-16 x .500
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

14

Cub Cadet 01006533

Spacer, .76 ID x 1.25 OD x .44

$11.99

$

In Stock, Qty 7

0

15

Cub Cadet 01006713

Castor Bracket Assembly, LH
(Superseded to 01006713-0637)

Variations

Cub Cadet 01006713-0637

BRACKET-LH CASTER - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 01006714

Castor Bracket Assembly, RH
(Superseded to 01006714-0637)

Variations

Cub Cadet 01006714-0637

BRACKET-RH CASTER - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 01007312

Spacer, .385 ID x .625 OD x .50

$22.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02002435

Spacer Plate
(Superseded to 02002435-0637)

Variations

Cub Cadet 02002435-0637

PLATE - SPACER - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 02002436

Front Anti Scalp Bracket
(Superseded to 02002436-0637)

Variations

Cub Cadet 02002436-0637

BRACKET - FRONT - POWDER BLACK (0637)

$

$

Not available

$

$
