51675 (TC 5010) - Toro String Trimmer (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

String Trimmer

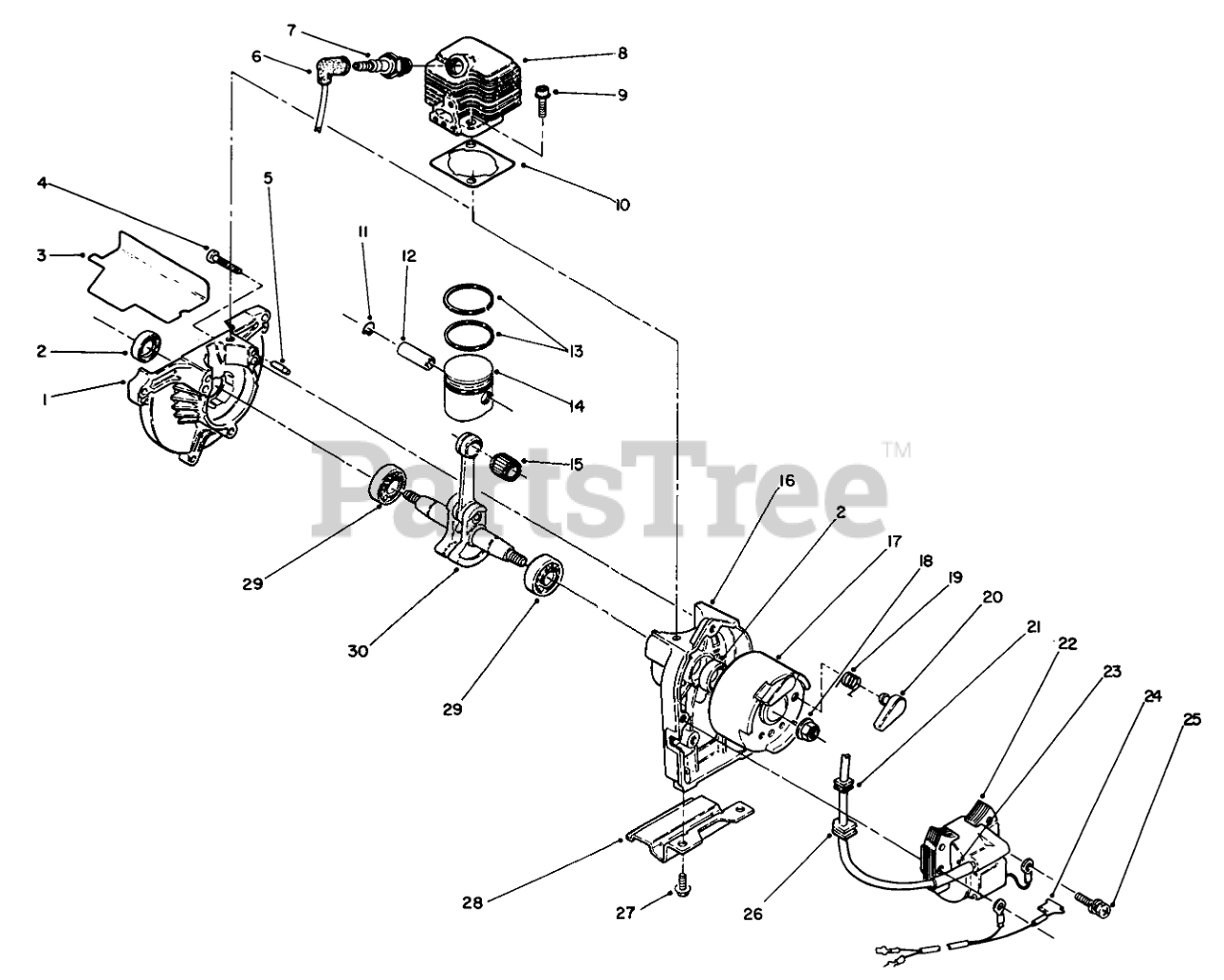

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 77-9730

DRIVE CASE

$163.99

$

Usually ships in 3-6 days

0

2

Toro 54-4380

OIL SEAL

$21.99

$

Usually ships in 3-6 days

0

3

Toro 77-9700

BAFFLE GASKET

$22.99

$

Usually ships in 3-6 days

0

4

Toro 54-4330

Screw

$

$

Not available

5

Toro 60-7590

PIN

$

$

Not available

6

Toro 77-1340

PLUG BOOT

$

$

Not available

7

Toro 77-1350

Plug-Spark
(Superseded to 45-0320)

$3.49

$

Usually ships in 3-6 days

0

8

Toro 77-9780

CYCLINDER

$473.99

$

Usually ships in 3-6 days

0

9

Toro 54-6600

BOLT

$

$

Not available

10

Toro 77-9800

Gasket-Cylinder Head

$

$

Not available

11

Toro 54-6680

CLIP, PISTON PIN

$

$

Not available

12

Toro 54-6670

PIN, PISTON

$

$

Not available

13

Toro 54-6640

RING,PISTON

$

$

Not available

14

Toro 77-9810

Piston Assembly (Incl. Ref. #12)

$

$

Not available

15

Toro 54-6690

BEARING, NEEDLE

$

$

Not available

16

Toro 77-9710

STARTER CASE

$

$

Not available

17

Toro 77-1360

Flywheel Assembly (Incl. Ref. #19 & 20)

$

$

Not available

18

Toro 54-4670

NUT

$

$

Not available

19

Toro 77-1370

RETURN SPRING

$

$

Not available

20

Toro 77-1380

RATCHET

$

$

Not available

21

Toro 77-9840

GROMMET

$

$

Not available

22

Toro 77-9850

IGNITION COIL

$

$

Not available

23

Toro 77-2180

TUBE

$

$

Not available

24

Toro 84-8630

LEAD WIRE

$

$

Not available

25

Toro 54-4790

BOLT AND WASHER

$5.49

$

Usually ships in 3-6 days

0

26

Toro 60-7840

GROMMET

$

$

Not available

27

Toro 77-9760

SCREW & WASHER

$

$

Not available

28

Toro 60-7660

STAND

$

$

Not available

29

Toro 54-4360

BEARING

$

$

Not available

30

Toro 77-9830

Crankshaft Assembly

$

$

Not available
