51675 (TC 5010) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) DUAL LINE BUMP FEED CUTTER HEAD (OPTIONAL) Parts Diagram

String Trimmer

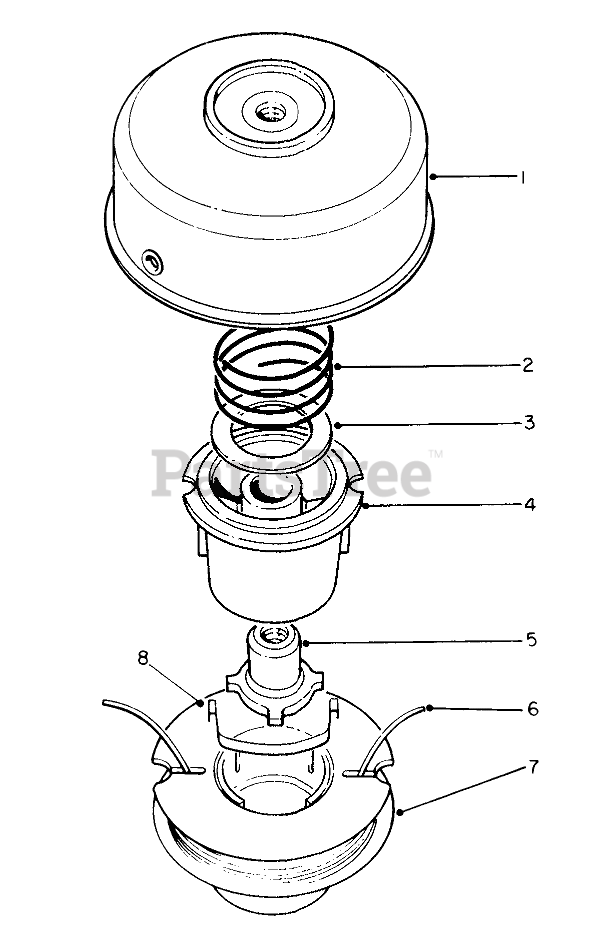

DUAL LINE BUMP FEED CUTTER HEAD (OPTIONAL) Parts Diagram

  • Title
1

Toro 46-2650

ASM - TRIMMER DRUM & EYELET

$

$

Not available

2

Toro 33-6460

SPRING

$14.99

$

In Stock, only 2 left!

0

3

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

4

Toro 33-6230

SPOOL CORE

$

$

Not available

5

Toro 61-4560

LH DRIVER

$

$

Not available

6

Line-Cutting .08 Dia. 38-

$

$

Not available

Toro 43-5000

REPL LINE PKG

Note: Not illustrated

$

$

Not available

Toro 46-2710

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

7

Toro 83-4650

Spool Prewound .08 Dia. 38-(Incl. Ref. #6 & 8)

$

$

Not available

8

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

Toro 83-4610

Cutter Head Assembly (Incl. Ref. #1-8)

Note: Not illustrated

$

$

Not available
