51675 (TC 5010) - Lawn-Boy String Trimmer (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

String Trimmer

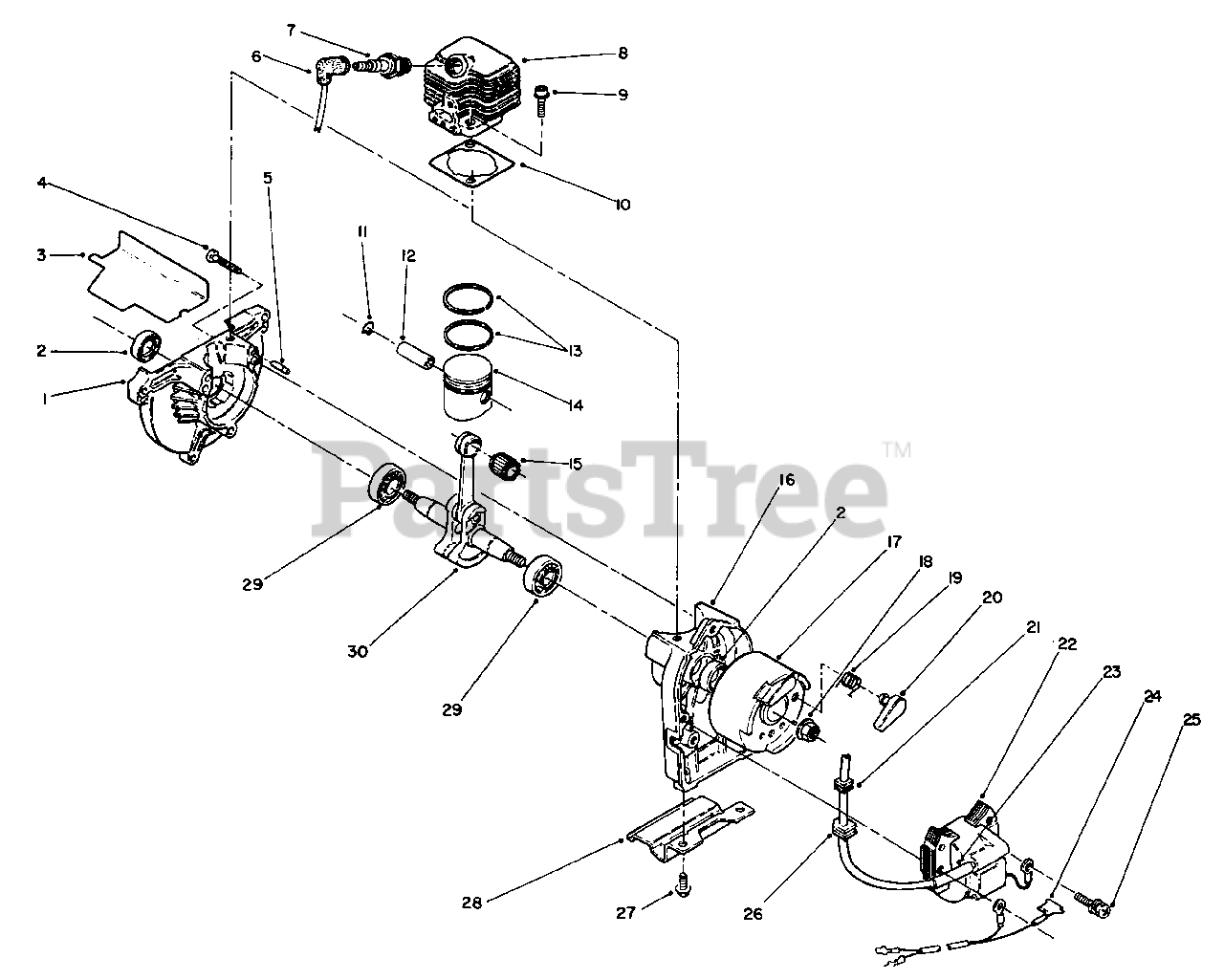

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 77-9730

Case-Drive

$184.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 54-4380

Seal-Oil

$24.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 77-9700

Gasket-Insulator

$27.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 54-4330

Screw-Pan Hd.

$

$

Not available

5

Lawn-Boy 60-7590

Pin-Dowel

$

$

Not available

6

Lawn-Boy 77-1340

Boot-Plug

$

$

Not available

7

Lawn-Boy 77-1350

Plug-Spark
(Superseded to 45-0320)

$

$

Not available

8

Lawn-Boy 77-9780

Cylinder Head

$536.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 54-6600

Bolt-Cylinder Head

$

$

Not available

10

Lawn-Boy 77-9800

Gasket-Cylinder Head

$

$

Not available

11

Lawn-Boy 54-6680

Clip-Piston Pin

$

$

Not available

12

Lawn-Boy 54-6670

Pin-Piston

$

$

Not available

13

Lawn-Boy 54-6640

Piston Ring

$

$

Not available

14

Lawn-Boy 77-9810

Piston Assembly (Incl. Ref. #12)

$

$

Not available

15

Lawn-Boy 54-6690

Bearing-Needle

$

$

Not available

16

Lawn-Boy 77-9710

Case-Starter

$

$

Not available

17

Lawn-Boy 77-1360

Flywheel Assembly (Incl. Ref. #19 & 20)

$

$

Not available

18

Lawn-Boy 54-4670

Nut-Conical

$

$

Not available

19

Lawn-Boy 77-1370

Spring-Return

$

$

Not available

20

Lawn-Boy 77-1380

Ratchet

$

$

Not available

21

Lawn-Boy 77-9840

Grommet

$

$

Not available

22

Lawn-Boy 77-9850

Coil-Ignition

$

$

Not available

23

Lawn-Boy 77-2180

Tube-Insulator

$

$

Not available

24

Lawn-Boy 84-8630

Wire Assembly

$

$

Not available

25

Lawn-Boy 54-4790

Bolt/Washer

$5.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 60-7840

Grommet

$

$

Not available

27

Lawn-Boy 77-9760

Screw/Washer

$

$

Not available

28

Lawn-Boy 60-7660

Stand

$

$

Not available

29

Lawn-Boy 54-4360

Bearing-Main

$

$

Not available

30

Lawn-Boy 77-9830

Crankshaft Assembly

$

$

Not available
