51675 (TC 5010) - Lawn-Boy String Trimmer (SN: 001000001 - 001999999) (1991) SAW AND BRUSH BLADE (OPTIONAL) Parts Diagram

String Trimmer

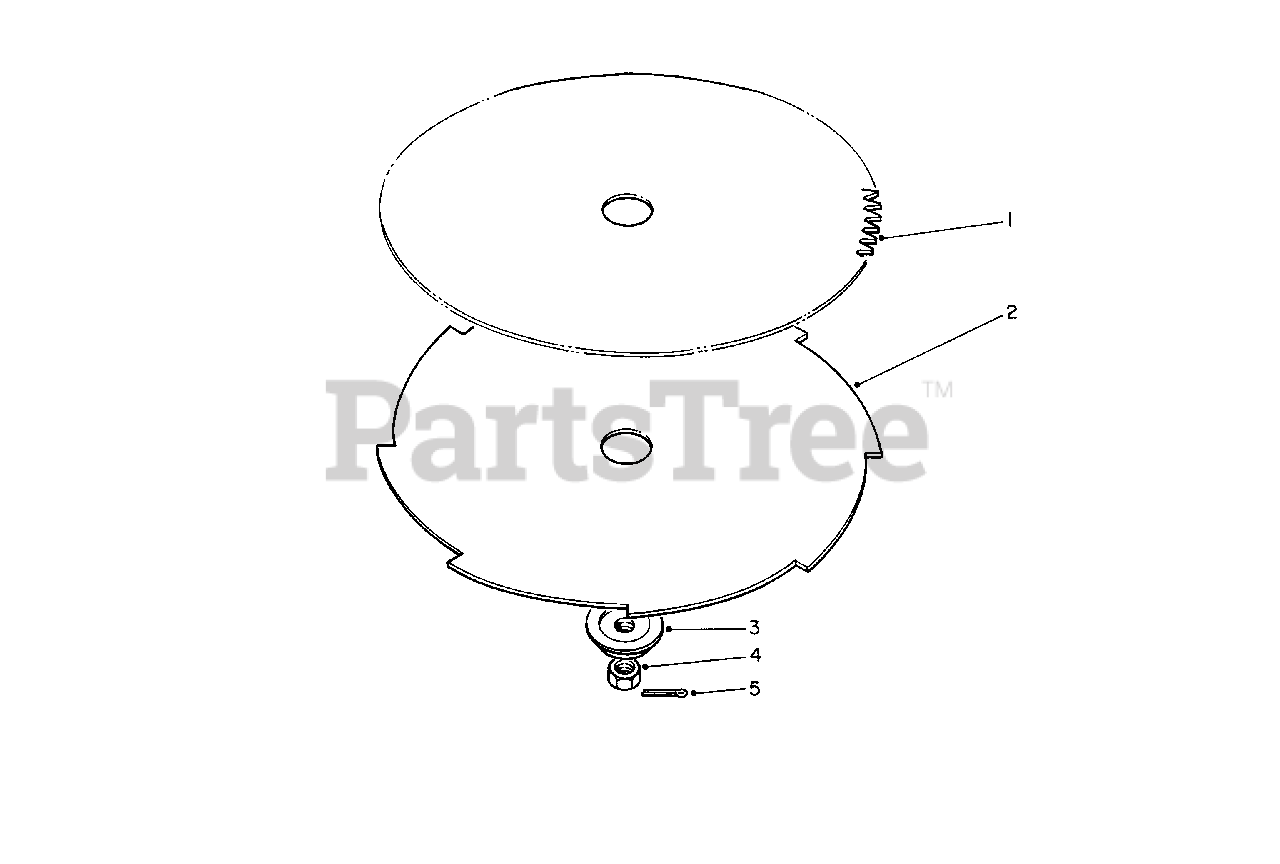

SAW AND BRUSH BLADE (OPTIONAL) Parts Diagram

  • Title
1

Lawn-Boy 51-1230

8" Dia. Blade (80 Tooth)

$

$

Not available

2

Lawn-Boy 51-1240

8" Dia. Blade (8 Tooth)

$

$

Not available

3

Adapter-Blade

$

$

Not available

4

Lawn-Boy 41-5410

Nut L.H.

$8.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 3272-3

Pin Cotter

$2.99

$

In Stock, only 1 left!

0

Lawn-Boy 41-4440

Blade Adapter Kit (Incl. Ref. #3-5)

Note: Not Illustrated

$95.99

$

Usually ships in 3-6 days

0
