51675 (TC 5010) - Lawn-Boy String Trimmer (SN: 001000001 - 001999999) (1991) ENGINE ASSEMBLY Parts Diagram

String Trimmer

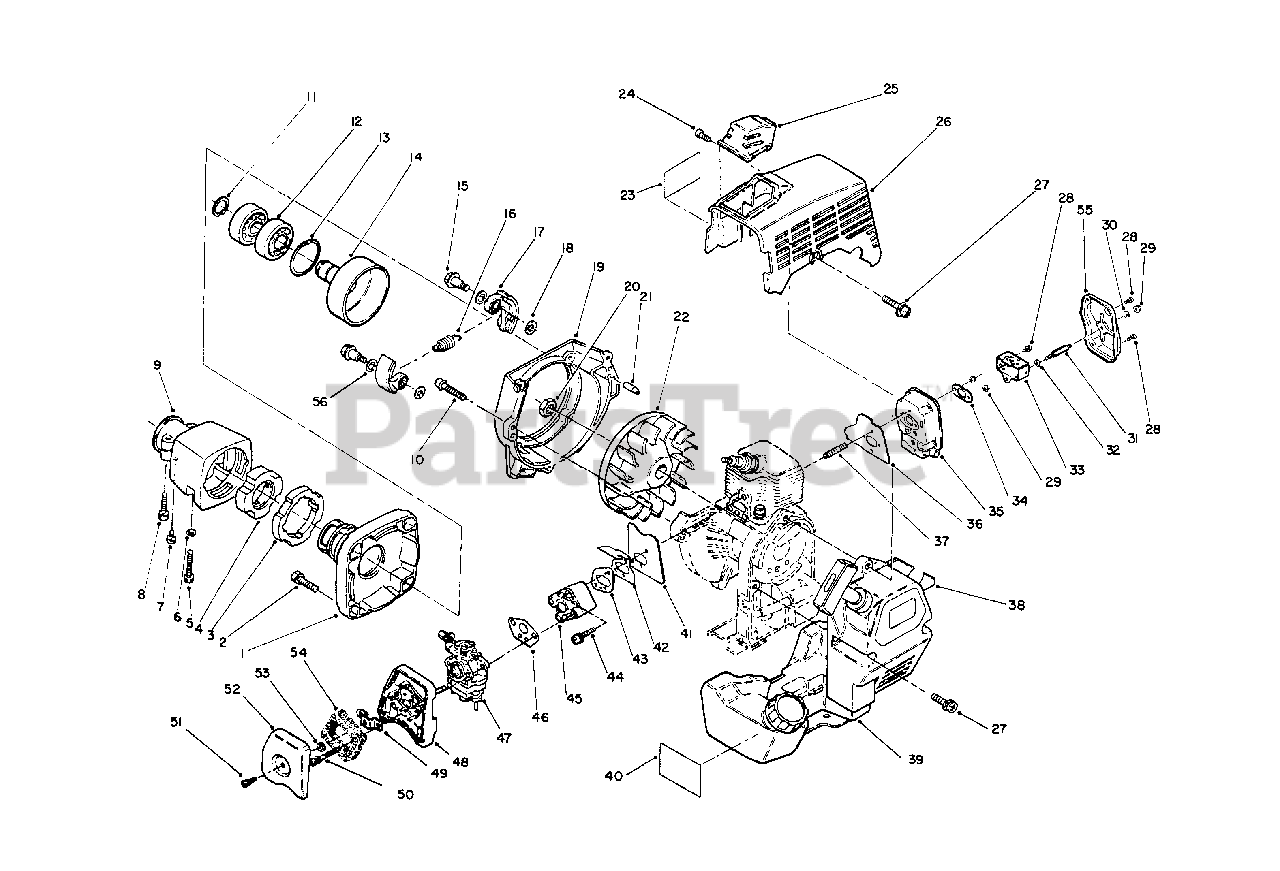

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 77-9740

Case-Clutch

$

$

Not available

2

Lawn-Boy 54-4440

Bolt/Washer

$

$

Not available

3

Lawn-Boy 54-6460

Cushion

$

$

Not available

4

Lawn-Boy 54-6470

Cushion

$

$

Not available

5

Lawn-Boy 54-6500

Screw/Washer

$

$

Not available

6

Lawn-Boy 54-6490

Washer-Lock
(Superseded to 56-8820)

$

$

Not available

7

Lawn-Boy 65-2550

Screw/Washer

$

$

Not available

8

Lawn-Boy 54-5740

Bolt/Washer

$

$

Not available

9

Lawn-Boy 77-9750

Holder

$

$

Not available

10

Lawn-Boy 54-6600

Screw/Washer

$

$

Not available

11

Lawn-Boy 54-5690

Ring-Retaining

$

$

Not available

12

Lawn-Boy 54-5680

Bearing-Ball

$

$

Not available

13

Lawn-Boy 54-5670

Ring-Retaining

$

$

Not available

14

Lawn-Boy 54-6920

Drum-Clutch

$219.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 82-2450

Bolt-Clutch

$

$

Not available

16

Lawn-Boy 77-9980

Spring

$

$

Not available

17

Lawn-Boy 77-9970

Shoe-Clutch

$126.99

$

Usually ships in 3-6 days

0

Lawn-Boy 54-6940

Clutch Assembly (Incl. Ref. #16 & 17)

Note: Not Illustrated

$

$

Not available

18

Lawn-Boy 54-6950

Washer

$

$

Not available

19

Lawn-Boy 77-9720

Case-Fan

$

$

Not available

20

Lawn-Boy 54-4670

Nut-Conical

$

$

Not available

21

Lawn-Boy 60-7590

Pin-Dowel

$

$

Not available

22

Lawn-Boy 77-9820

Fan

$

$

Not available

23

Lawn-Boy 65-2690

Decal-Hot

$5.49

$

In Stock, only 4 left!

0

24

Lawn-Boy 54-6890

Screw/Washer

$

$

Not available

25

Lawn-Boy 77-1190

Guard-Spark Plug

$

$

Not available

26

Lawn-Boy 77-9770

Cover-Engine

$

$

Not available

27

Lawn-Boy 77-1860

Screw

$

$

Not available

28

Lawn-Boy 54-5730

Screw/Washer

$

$

Not available

29

Lawn-Boy 77-1790

Nut-Flange Lock

$

$

Not available

30

Lawn-Boy 65-4410

Gasket

$

$

Not available

31

Lawn-Boy 77-9950

Spacer-Threaded

$

$

Not available

32

Lawn-Boy 65-0540

Washer

$

$

Not available

33

Lawn-Boy 77-9940

Baffle

$

$

Not available

34

Lawn-Boy 77-9930

Plate
(Superseded to 65-4330)

$

$

Not available

35

Lawn-Boy 77-9920

Muffler

$311.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 77-9910

Gasket-Muffler

$

$

Not available

37

Lawn-Boy 77-9790

Stud

$

$

Not available

38

Lawn-Boy 77-1850

Starter-Recoil
(Superseded to 82-6180)

$

$

Not available

39

Lawn-Boy 77-1990

Tank Assembly-Fuel

$42.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 70-9930

Decal-Fuel Mix

$

$

Not available

41

Lawn-Boy 77-9870

Gasket-Insulator

$

$

Not available

42

Lawn-Boy 77-9860

Plate

$

$

Not available

43

Lawn-Boy 60-7920

Gasket-Insulator

$

$

Not available

44

Lawn-Boy 60-7930

Screw/Washer

$

$

Not available

45

Lawn-Boy 77-1450

Insulator

$

$

Not available

46

Lawn-Boy 77-1430

Gasket-Carburetor

$7.49

$

Usually ships in 3-6 days

0

47

Lawn-Boy 77-9880

Carburetor Assembly
(Superseded to 88-0280)

$

$

Not available

48

Lawn-Boy 77-1760

Case-Air Cleaner

$58.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 77-1750

Bracket

$

$

Not available

50

Lawn-Boy 54-4870

Screw/Washer

$3.99

$

In Stock, only 2 left!

0

51

Lawn-Boy 60-7680

Screw/Washer

$

$

Not available

52

Lawn-Boy 77-1710

Cover-Air Cleaner

$

$

Not available

53

Lawn-Boy 77-1720

Nut-Push

$9.99

$

In Stock, only 1 left!

0

54

Lawn-Boy 77-1730

Element-Air Cleaner

$28.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 77-9960

Cover-Muffler

$

$

Not available

56

Lawn-Boy 82-2460

Washer-Wave

$

$

Not available

Lawn-Boy 83-4820

Muffler-Spark Arrestor

Note: Engine-TM 33 1 Not Illustrated

$

$

Currently unavailable
