51665 (TC 3510) - Lawn-Boy String Trimmer (SN: 001000001 - 001999999) (1991) DUAL LINE BUMP & FEED CUTTER HEAD (OPTIONAL) Parts Diagram

String Trimmer

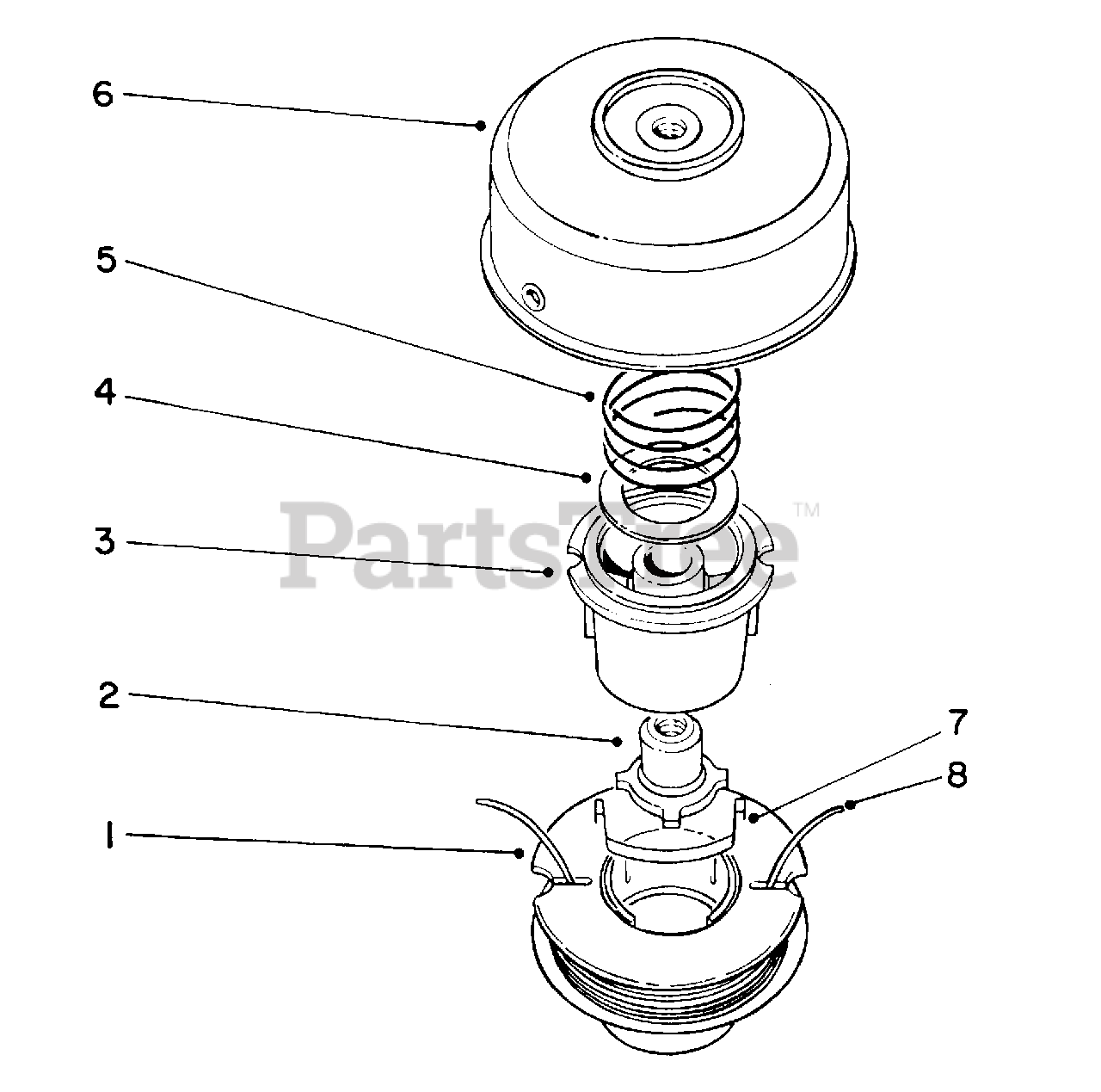

DUAL LINE BUMP & FEED CUTTER HEAD (OPTIONAL) Parts Diagram

  • Title
1

Lawn-Boy 83-4650

Spool Prewound .08 Dia 38' (Incl. Ref. #7)

$

$

Not available

2

Lawn-Boy 61-4560

Driver L.H.

$

$

Not available

3

Lawn-Boy 33-6230

Spool Core

$

$

Not available

4

$1.49

$

In Stock, only 1 left!

0

5

$14.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 46-2650

Drum w/Eyelets

$

$

Not available

7

Lawn-Boy 33-8940

Saddle-Spool Cap

$

$

Not available

8

Line-Cutting .08 Dia. 38'

$

$

Not available

Lawn-Boy 43-5000

Line-Cutting .08 Dia. (38' Optional)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-2710

Line-Cutting .08 Dia. (40' Optional)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 83-4610

Cutter Head Assembly (Incl. Ref. #1-8)

Note: Not Illustrated

$

$

Not available
