51665 (TC 3510) - Lawn-Boy String Trimmer (SN: 000000001 - 000999999) (1990) TRIMMER HEAD & GEAR BOX ASSEMBLY Parts Diagram

String Trimmer

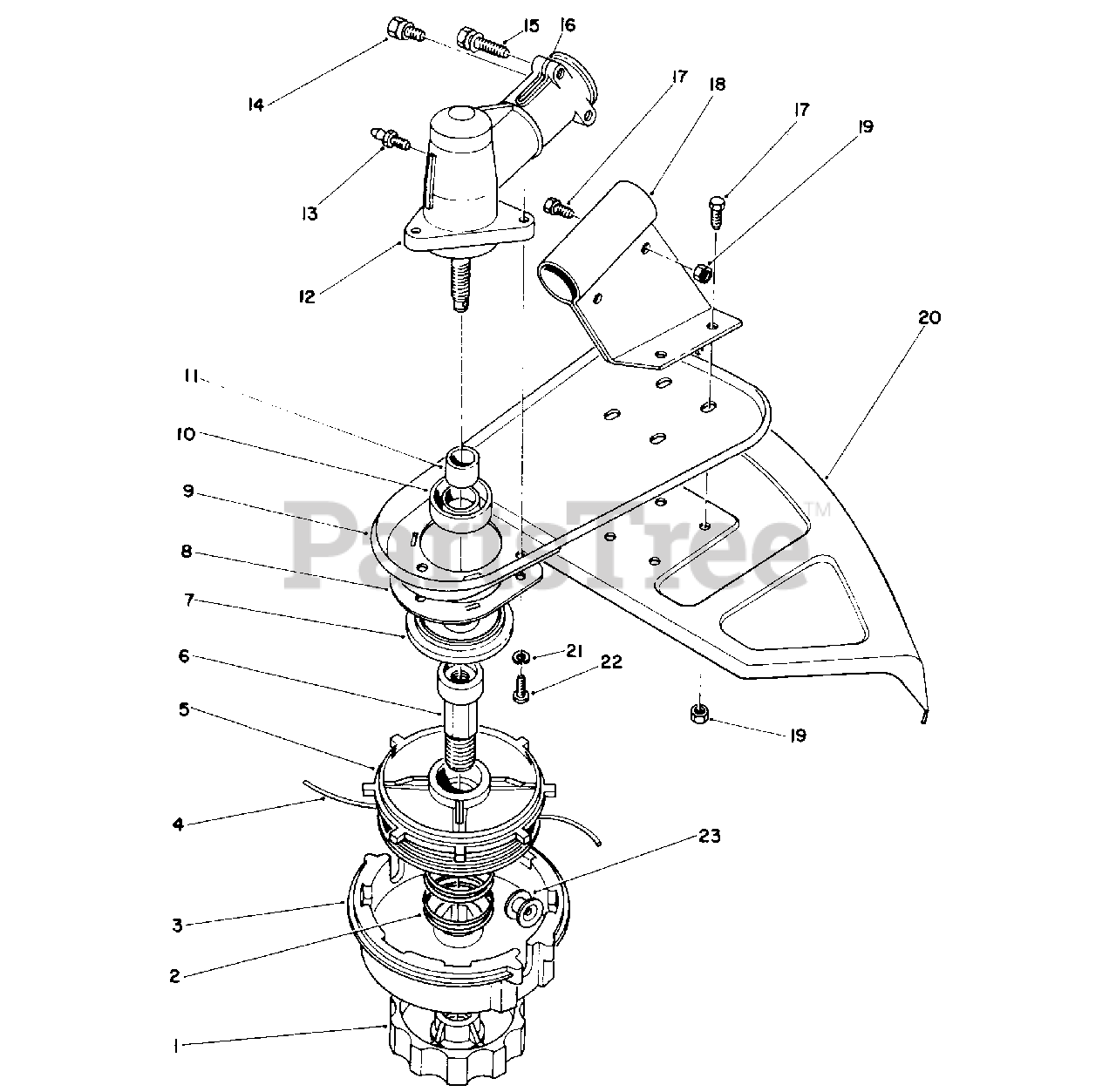

TRIMMER HEAD & GEAR BOX ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 57-5580

Knob-L.H.

$70.99

$

In Stock, only 1 left!

0

2

$

$

Not available

3

Lawn-Boy 57-5600

Spool-Housing Assembly

$125.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 43-5000

Line-Cutting .08 Dia. 38'Optional

$

$

Not available

Lawn-Boy 46-2710

Line-Cutting .08 Dia. (1 Lb. 400') Optional

Note: Not Illustrated

$

$

Not available

Lawn-Boy 41-6820

Line-Cutting .095 Dia. (1 Lb. 285') Optional

Note: Not Illustrated

$42.99

$

Usually ships in 3-6 days

0

Lawn-Boy 46-2730

Line Cutting .105 Dia. 235 Optional

Note: Not Illustrated

$

$

Not available

Lawn-Boy 52-5070

Line-Cutting .105 Dia. 20' (Optional)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-2740

Line-Cutting .130 Dia. (3 Lb. 450') Optional

Note: Not Illustrated

$

$

Not available

5

Lawn-Boy 57-5590

Spool-Inner

$

$

Not available

$

$

Not available

7

Lawn-Boy 48-2080

Cap-Dust

$157.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 57-5540

Guard-Grass Wrap

$

$

Not available

9

Lawn-Boy 47-2800

Support-Shield

$

$

Not available

10

Lawn-Boy 48-2090

Seal-Oil

$

$

Not available

11

Lawn-Boy 48-2100

Sleeve-Spline

$

$

Not available

12

Lawn-Boy 52-5710

Gear Box Assembly (Incl. Ref. #10, 11, & 13-16)

$

$

Not available

13

Lawn-Boy 53-7410

Fitting-Grease

$

$

Not available

14

Lawn-Boy 48-2150

Screw-Hex. Hd. Cap

$8.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 48-2130

Screw-Hex. Hd. Cap

$

$

Not available

16

Lawn-Boy 48-2140

Washer-Flat

$

$

Not available

17

Lawn-Boy 32105-8

Screw-Hex. Hd. Can

$2.49

$

In Stock, only 1 left!

0

18

Lawn-Boy 47-2760

Bracket-Shield

$

$

Not available

19

Lawn-Boy 3296-2

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 61-4570

Shield-Grass

$

$

Not available

21

Lawn-Boy 55-8050

Washer-Lock

$

$

Not available

22

Lawn-Boy 57-5550

Screw-Guard

$

$

Not available

23

$6.99

$

Usually ships in 3-6 days

0

Lawn-Boy 57-5670

Head Assembly (Incl. Ref. #1-6 & 23)

Note: Not Illustrated

$

$

Not available
