51660 (TC 3500) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) SINGLE LINE BUMP FEED CUTTER HEAD (OPTIONAL) Parts Diagram

String Trimmer

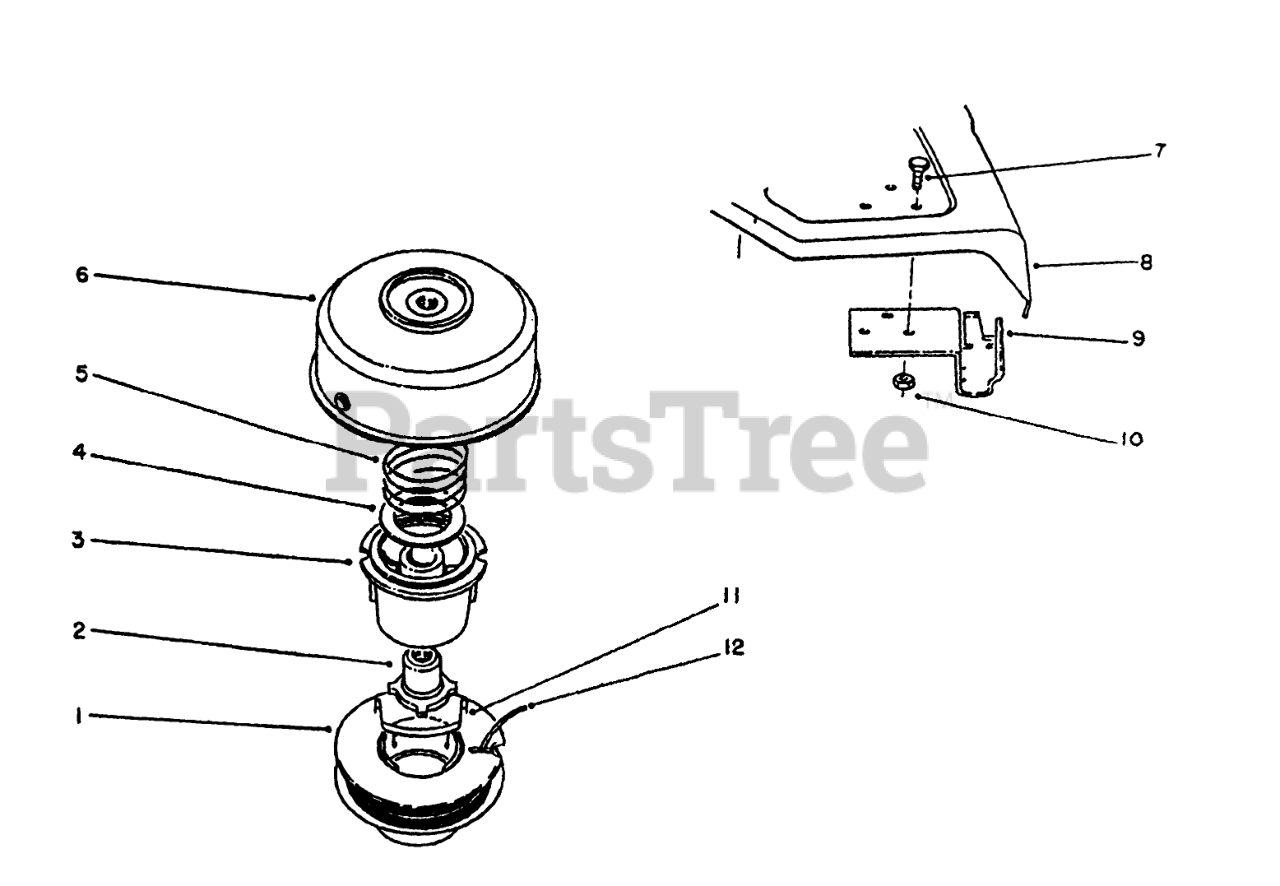

SINGLE LINE BUMP FEED CUTTER HEAD (OPTIONAL) Parts Diagram

  • Title
1

Toro 83-4660

SINGLE LINE(.095) SPL P

$

$

Not available

2

Toro 61-4560

LH DRIVER

$

$

Not available

3

Toro 33-6230

SPOOL CORE

$

$

Not available

4

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

5

Toro 33-6460

SPRING

$14.99

$

In Stock, only 2 left!

0

6

Toro 46-2651

DRUM EYELET ASM

$

$

Not available

7

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

8

Toro 61-4571

Shield-Grass
(Superseded to 61-4571-03)

$

$

Not available

9

Toro 61-4540

BRACKET & KNIFE ASM

$

$

Not available

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

12

Line Cutting .095 Dia. 30-

$

$

Not available

Toro 41-6820

#1 BULK SPOOL .095

Note: Not illustrated

$42.99

$

Usually ships in 3-6 days

0

Toro 83-4600

Cutter Head Assembly(Incl. Ref. #1-8)

Note: Not illustrated

$209.99

$

Usually ships in 3-6 days

0
