51660 (TC 3500) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

String Trimmer

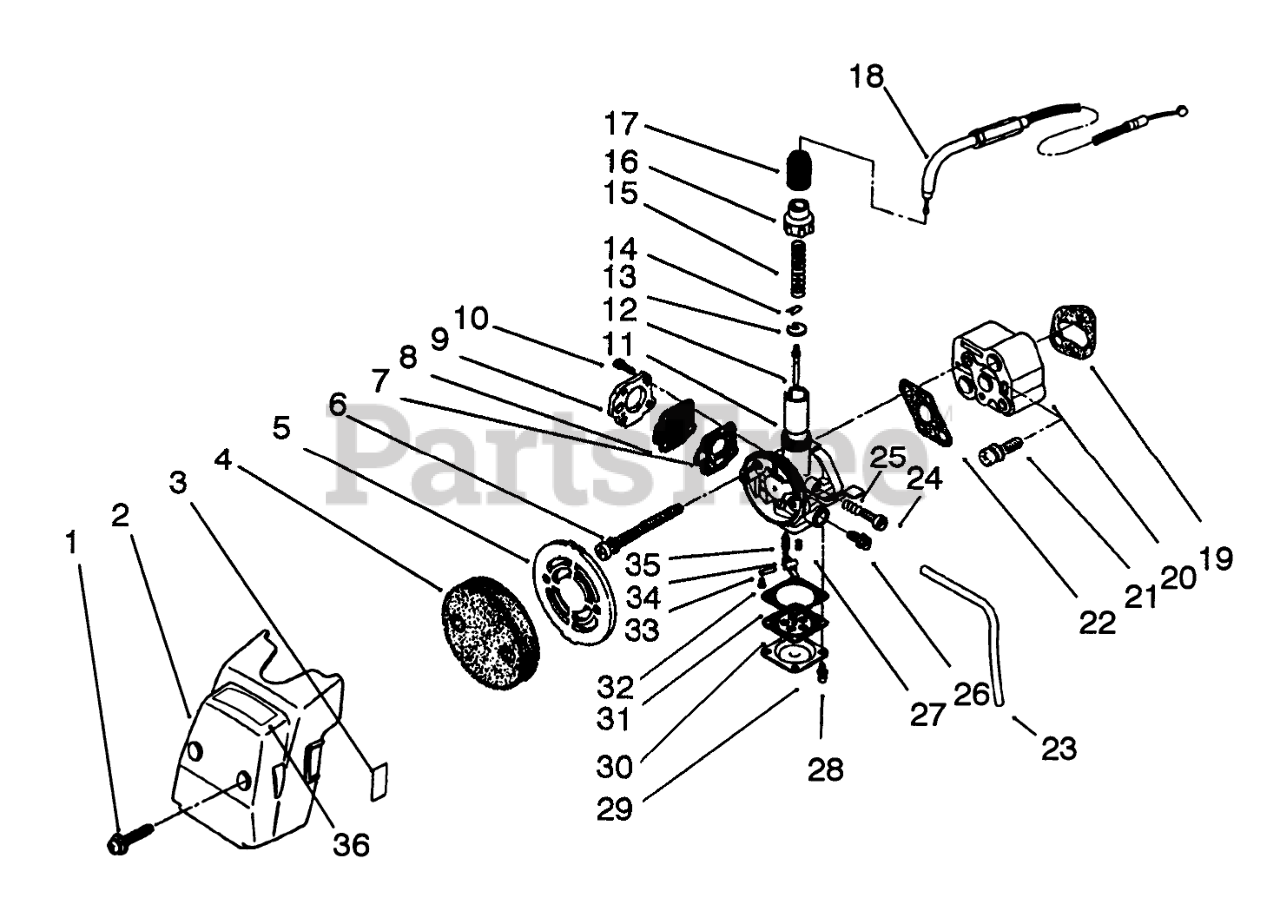

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 60-8020

SCREW & WASHER

$

$

Not available

2

Toro 60-8030

CLEANER CASE

$

$

Not available

3

Toro 54-5170

CHOKE LABEL

$

$

Not available

4

Toro 60-8040

ELEMENT
(Superseded to 54-5190)

$16.99

$

In Stock, only 2 left!

0

5

$25.99

$

Usually ships in 3-6 days

0

6

Toro 54-4870

SCREW W/ WASHER

$3.99

$

In Stock, only 2 left!

0

7

Toro 54-5010

PUMP COVER GASKET

$

$

Not available

8

Toro 54-5020

PUMP DIAPHRAGM

$

$

Not available

9

Toro 60-7980

Pump Cover Assembly

$

$

Not available

10

Toro 54-5040

SCREW W/ WASHER

$

$

Not available

11

Toro 60-7970

THROTTLE VALVE

$94.99

$

Usually ships in 3-6 days

0

12

Toro 60-7960

NEEDLE JET

$

$

Not available

13

Toro 60-7950

SPRING RETAINER

$

$

Not available

14

Toro 54-5120

NEEDLE CUP

$

$

Not available

15

Toro 54-4920

SPRING

$

$

Not available

16

$

$

Not available

17

Toro 54-4900

AIR SEAL

$

$

Not available

18

Toro 54-6140

WIRE, THROTTLE

$

$

Not available

19

Toro 60-7920

INSULATOR GASKET

$

$

Not available

20

Toro 60-7910

INSULATOR

$

$

Not available

21

Toro 60-7930

SCREW & WASHER

$

$

Not available

22

Toro 60-7940

CARB GASKET

$

$

Not available

23

Toro 56-9000

FUEL TUBE

$

$

Not available

24

Toro 54-4970

Screw-Adjusting
(Superseded to 54-6090)

$

$

Not available

25

Toro 54-4960

ADJ. SCREW SPRING

$

$

Not available

26

Toro 54-4980

MAIN NEEDLE

$

$

Not available

27

Toro 54-4990

VALVE SPRING

$

$

Not available

28

Toro 54-5110

SCREW W/ WASHER

$

$

Not available

29

Toro 54-5100

DIAPHRAGM COVER

$78.99

$

Usually ships in 3-6 days

0

30

Toro 54-5090

MAIN DIAPHRAGM

$

$

Not available

31

Toro 54-5000

DIAPHRAGM GASKET

$11.99

$

In Stock, Qty 9

0

32

Toro 54-5080

FLOAT SCREW

$

$

Not available

33

Toro 54-5070

FLOAT PIN

$

$

Not available

34

Toro 54-5060

FLOAT ARM

$

$

Not available

35

Toro 54-5050

FLOAT VALVE

$27.70

$

Usually ships in 3-6 days

0

36

Toro 84-8830

Decal-Fuel Mix

$

$

Not available

Toro 60-8010

Air Cleaner Assembly (Incl. Ref. #2-5)

Note: Not illustrated

$

$

Not available

Toro 65-2600

Carburetor Assembly (Incl. Ref. # 7-17 & 24-35)

Note: Not illustrated

$

$

Not available
