51660 (TC 3500) - Toro String Trimmer (SN: 010000001 - 019999999) (1991) FUEL TANK ASSEMBLY Parts Diagram

String Trimmer

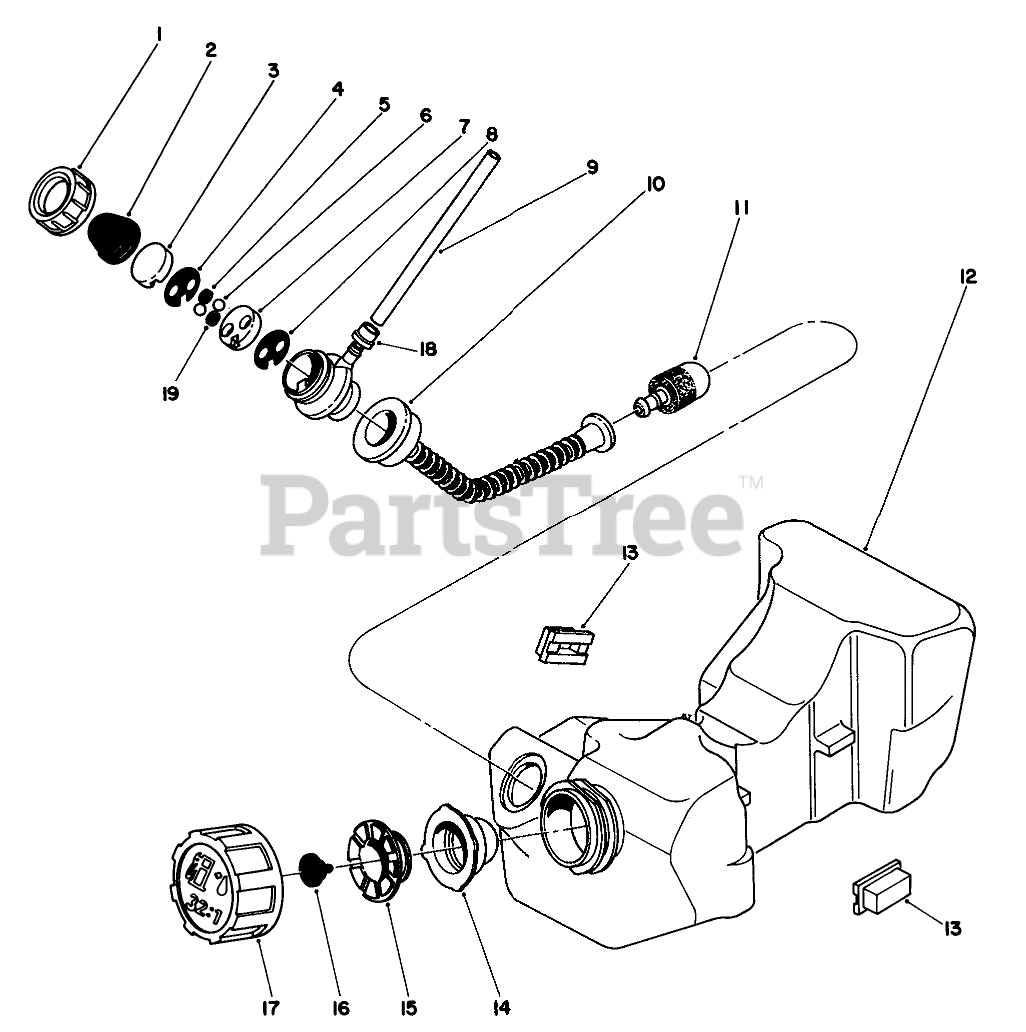

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 54-5510

PUMP CAP

$

$

Not available

2

Toro 54-5520

CAP

$25.99

$

Usually ships in 3-6 days

0

3

Toro 54-5530

SEAT VALVE

$

$

Not available

4

Toro 54-5460

GASKET

$

$

Not available

5

Toro 54-5470

SPONGE

$

$

Not available

6

Toro 54-5480

BALL

$6.49

$

In Stock, only 2 left!

0

7

Toro 54-5490

SEAT VALVE

$

$

Not available

8

Toro 54-5500

GASKET

$6.49

$

Usually ships in 3-6 days

0

9

Toro 54-7040

Tube-Fuel
(Superseded to 54-6060)

$

$

Not available

10

Toro 60-8270

SUCTION HOSE

$

$

Not available

11

Toro 54-5540

FUEL FILTER

$51.99

$

In Stock, only 1 left!

0

12

Toro 65-4490

Fuel Tank Assembly (Incl. Ref. #1-8, 10, 11, 14-17 & 19)

$

$

Not available

13

Toro 60-8280

PAD

$

$

Not available

14

Toro 54-5630

GASKET - PACKING

$14.99

$

Usually ships in 3-6 days

0

15

Toro 54-5620

HOLDER

$14.99

$

In Stock, only 1 left!

0

16

Toro 54-5610

BREATHER VALVE

$20.99

$

Usually ships in 3-6 days

0

17

Toro 54-5600

TANK CAP

$47.99

$

Usually ships in 3-6 days

0

18

Toro 54-5550

CLIP

$2.99

$

Usually ships in 3-6 days

0

19

Toro 60-8260

Cushion Ball
(Superseded to 54-5470)

$

$

Not available

Toro 54-5590

Gas Tank & Cap Assembly (Incl. Ref. #14-17)

$63.99

$

Usually ships in 3-6 days

0

Toro 54-5570

Pump, Priming Assembly (Incl. Ref. #1-8 & 19)

$

$

Not available
