51660 (TC 3500) - Toro String Trimmer (SN: 009000001 - 009999999) (1989) CLUTCH CASE & FAN ASSEMBLY Parts Diagram

String Trimmer

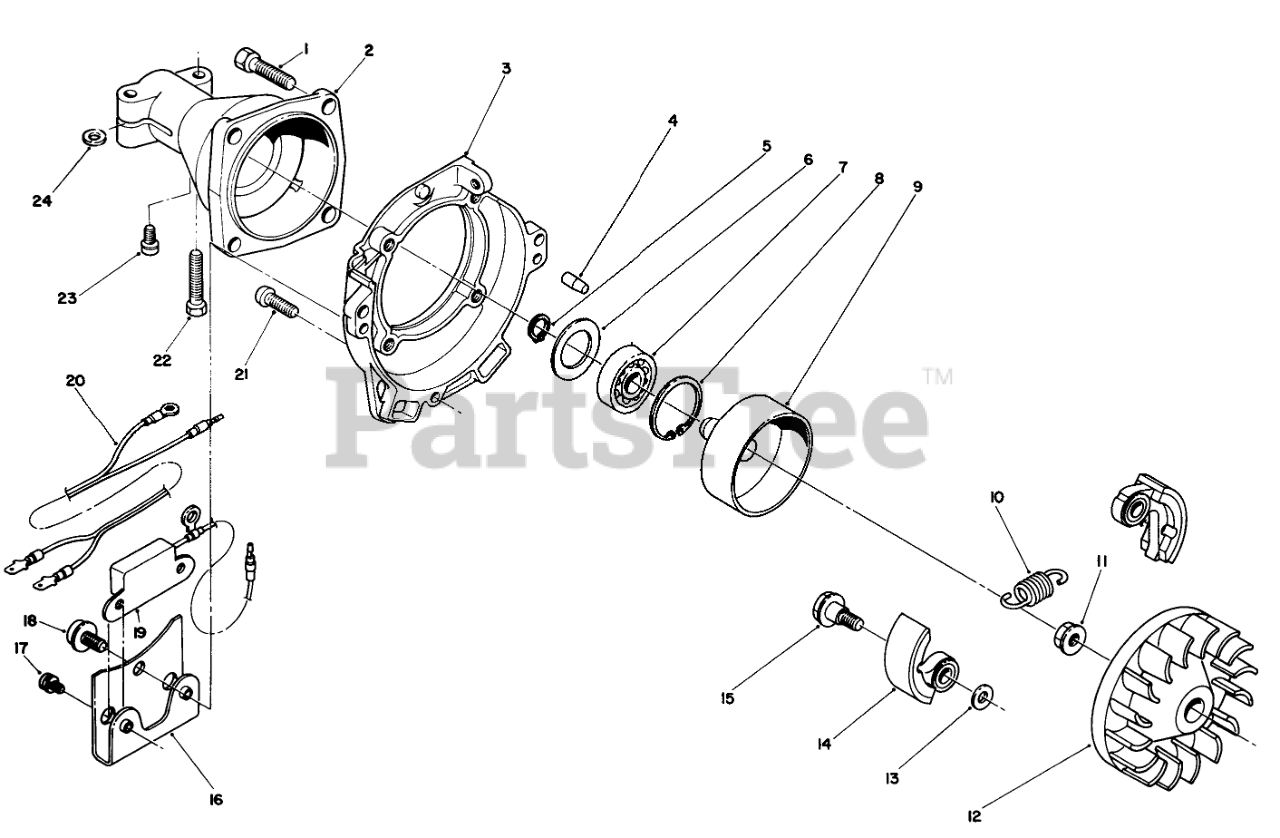

CLUTCH CASE & FAN ASSEMBLY Parts Diagram

  • Title

1

Toro 54-5720

Bolt/Washer

$

$

Not available

2

Toro 65-2530

CLUTCH CASE

$

$

Not available

3

Toro 65-2520

Case, Fan
(Superseded to 88-0170)

$

$

Not available

4

Toro 60-7590

PIN

$

$

Not available

5

Toro 54-5690

SNAP RING

$

$

Not available

6

Toro 54-5700

Washer

$

$

Not available

7

Toro 54-5680

BALL BEARING

$

$

Not available

8

Toro 54-5670

SNAP RING

$

$

Not available

9

Toro 54-6250

CLUTCH DRUM

$

$

Not available

10

Toro 54-6230

Spring
(Superseded to 65-4440)

$

$

Not available

11

Toro 60-7770

NUT

$

$

Not available

12

Toro 65-2580

FAN

$

$

Not available

13

Toro 65-4450

WASHER

$

$

Not available

14

Toro 54-6220

SHOE, CLUTCH

$

$

Not available

15

Toro 54-5290

CLUTCH BOLT

$

$

Not available

16

Toro 60-7630

Bracket-Unit

$

$

Not available

17

Toro 54-4610

SCREW W/ WASHER

$

$

Not available

18

Toro 60-7620

SCREW & WASHER

$

$

Not available

19

Toro 65-2590

TRANSISTOR

$

$

Not available

20

Toro 54-6020

WIRE,LEAD

$40.99

$

Usually ships in 3-6 days

0

21

Toro 60-7610

BOLT & WASHER

$

$

Not available

22

Toro 54-5740

BOLT-WASHER/ENG

$

$

Not available

23

Toro 65-2550

Screw/Washer

$

$

Not available

24

Toro 65-2540

WASHER

$

$

Not available

Toro 54-6240

Clutch Assembly (Incl. Ref. #10 & 14)
(Superseded to 77-1830)

$

$

Not available
