51660 (TC 3500) - Toro String Trimmer (SN: 008000001 - 008999999) (1988) DUAL LINE TAP & TRIM HEAD NO. 46-2800 (OPTIONAL) Parts Diagram

String Trimmer

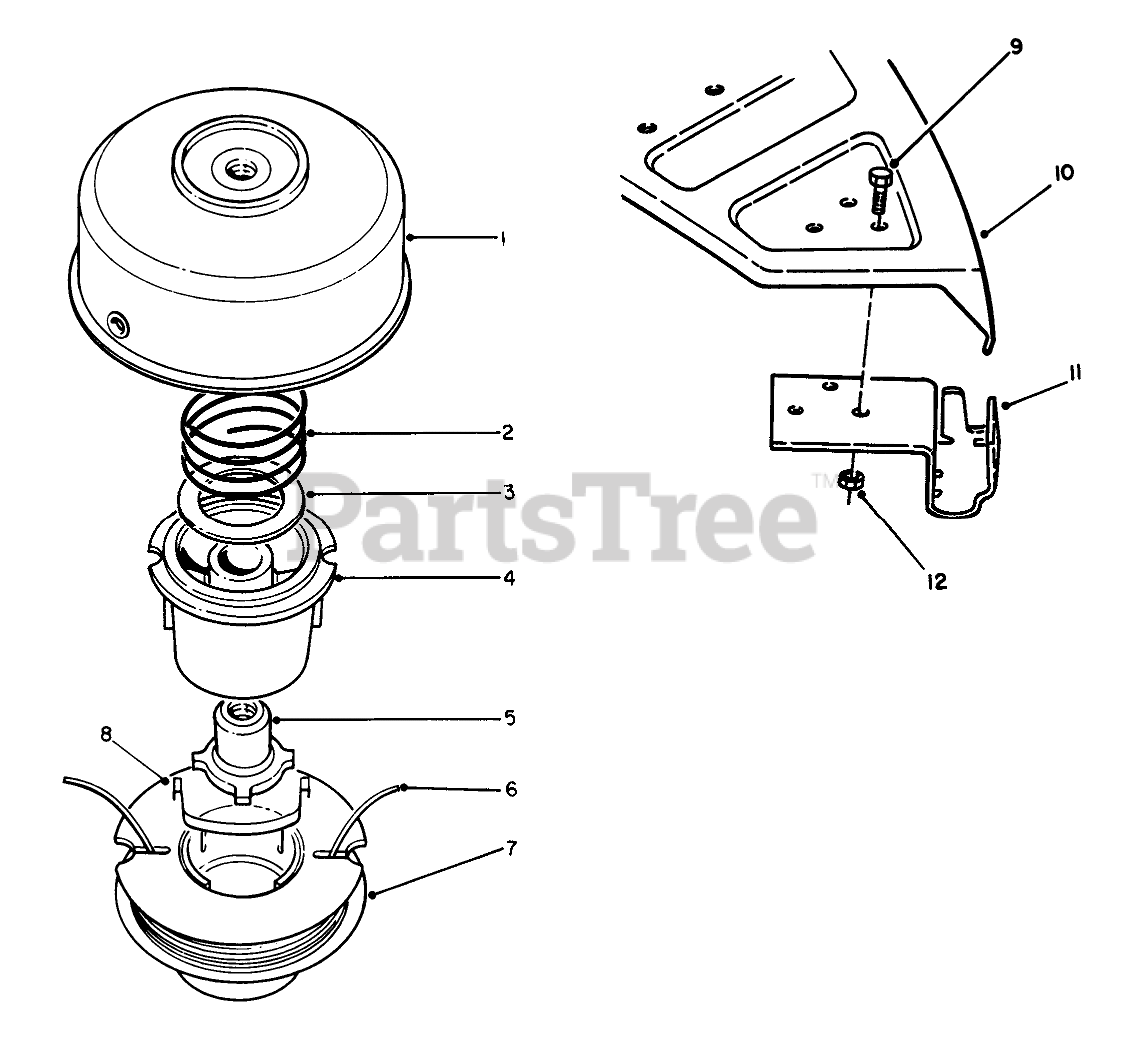

DUAL LINE TAP & TRIM HEAD NO. 46-2800 (OPTIONAL) Parts Diagram

  • Title
1

Toro 46-2650

ASM - TRIMMER DRUM & EYELET

$

$

Not available

2

Toro 33-6460

SPRING

$14.99

$

In Stock, only 2 left!

0

3

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

4

Toro 33-6230

SPOOL CORE

$

$

Not available

5

Toro 61-4560

LH DRIVER

$

$

Not available

6

Toro 43-5000

REPL LINE PKG

$

$

Not available

Toro 46-2710

BULK LINE W/LABEL

$

$

Not available

Toro 41-6820

#1 BULK SPOOL .095

$42.99

$

Usually ships in 3-6 days

0

Toro 41-6830

3 Lb. Line Bulk (.095)
(Superseded to 41-6820)

$42.99

$

Usually ships in 3-6 days

0

7

Toro 57-5600

Prewound Spool (Incl. Ref. #8)

$125.99

$

Usually ships in 3-6 days

0

8

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

9

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

10

Toro 61-4571

Shield-Grass
(Superseded to 61-4571-03)

$

$

Not available

11

Toro 61-4540

BRACKET & KNIFE ASM

$

$

Not available

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
