51660 (TC 3500) - Toro String Trimmer (SN: 008000001 - 008999999) (1988) CYLINDER & MUFFLER ASSEMBLY Parts Diagram

String Trimmer

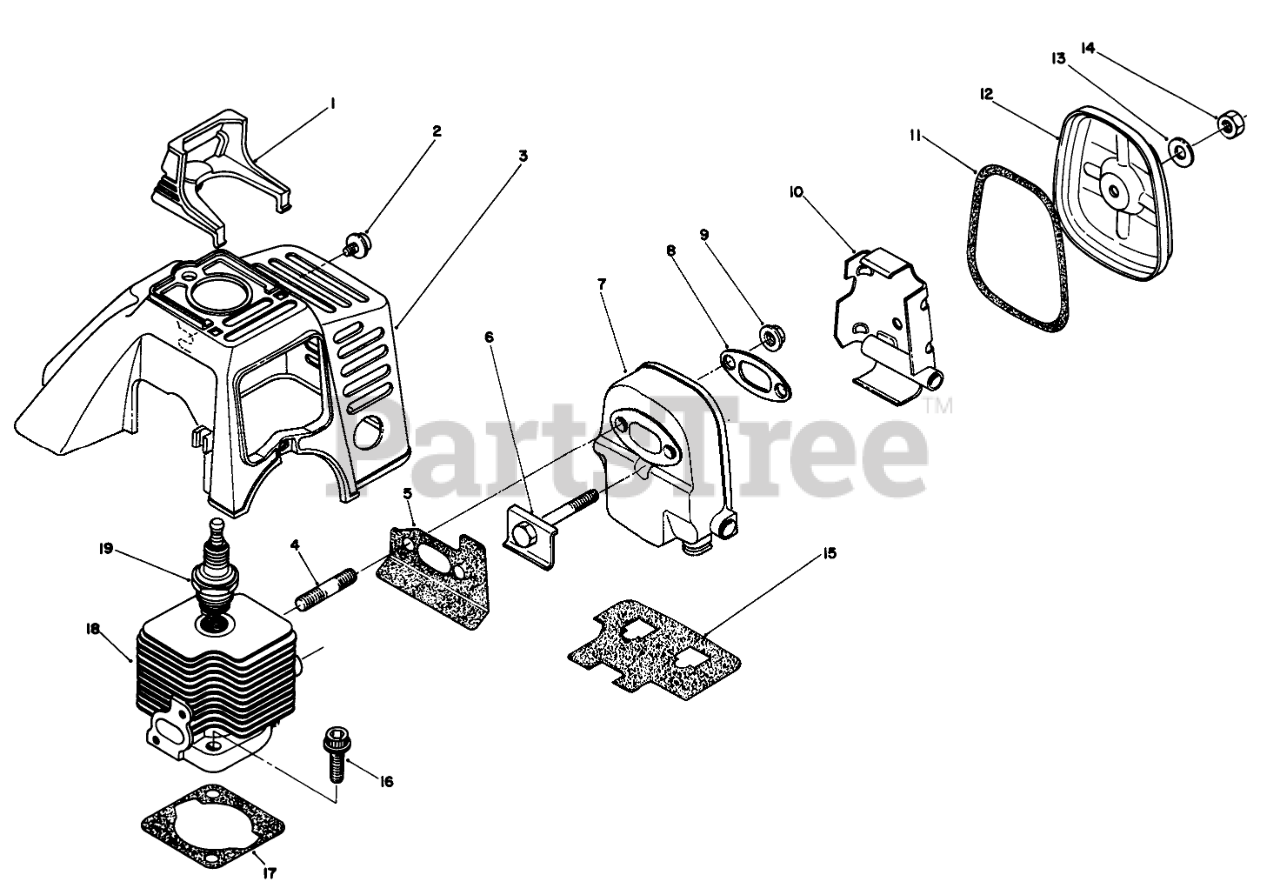

CYLINDER & MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 60-7670

SPARK PLUG GUARD

$

$

Not available

2

Toro 60-7680

SCREW & WASHERE

$

$

Not available

3

Toro 65-2560

Cover, Top
(Superseded to 88-0100)

$

$

Not available

4

Toro 60-7700

Stud

$

$

Not available

5

Toro 65-2620

MUFFLER GASKET

$36.99

$

Usually ships in 3-6 days

0

6

Toro 65-2630

BOLT

$

$

Not available

7

Toro 65-2640

BODY MUFFLER

$

$

Not available

8

Toro 60-8070

PLATE

$

$

Not available

9

Toro 60-7770

NUT

$

$

Not available

10

Toro 65-4400

PLATE

$

$

Not available

11

Toro 60-8100

GASKET

$

$

Not available

12

Toro 60-8110

MUFFLER LID

$

$

Not available

13

Toro 65-4410

GASKET

$

$

Not available

14

Toro 65-4420

Nut

$

$

Not available

15

Toro 65-4430

Gasket
(Superseded to 88-0130)

$

$

Not available

16

Toro 60-7720

FLANGE BOLT

$

$

Not available

17

Toro 60-7730

CYL GASKET

$7.49

$

In Stock, Qty 6

0

18

Toro 65-2570

CYLINDER

$

$

Not available

19

Toro 45-0320

SPARK PLUG (NGK)

$3.49

$

Usually ships in 3-6 days

0
